xml_io_private.h File Reference

This file contains private function declarations and template instantiation to handle XML data files. More...

#include "xml_io.h"
#include <stdexcept>
#include <cfloat>
#include "matpackVII.h"
#include "array.h"
#include "messages.h"
#include "ppath.h"
#include "agenda_class.h"
#include "absorption.h"
#include "gas_abs_lookup.h"
#include "optproperties.h"
#include "bifstream.h"
#include "bofstream.h"

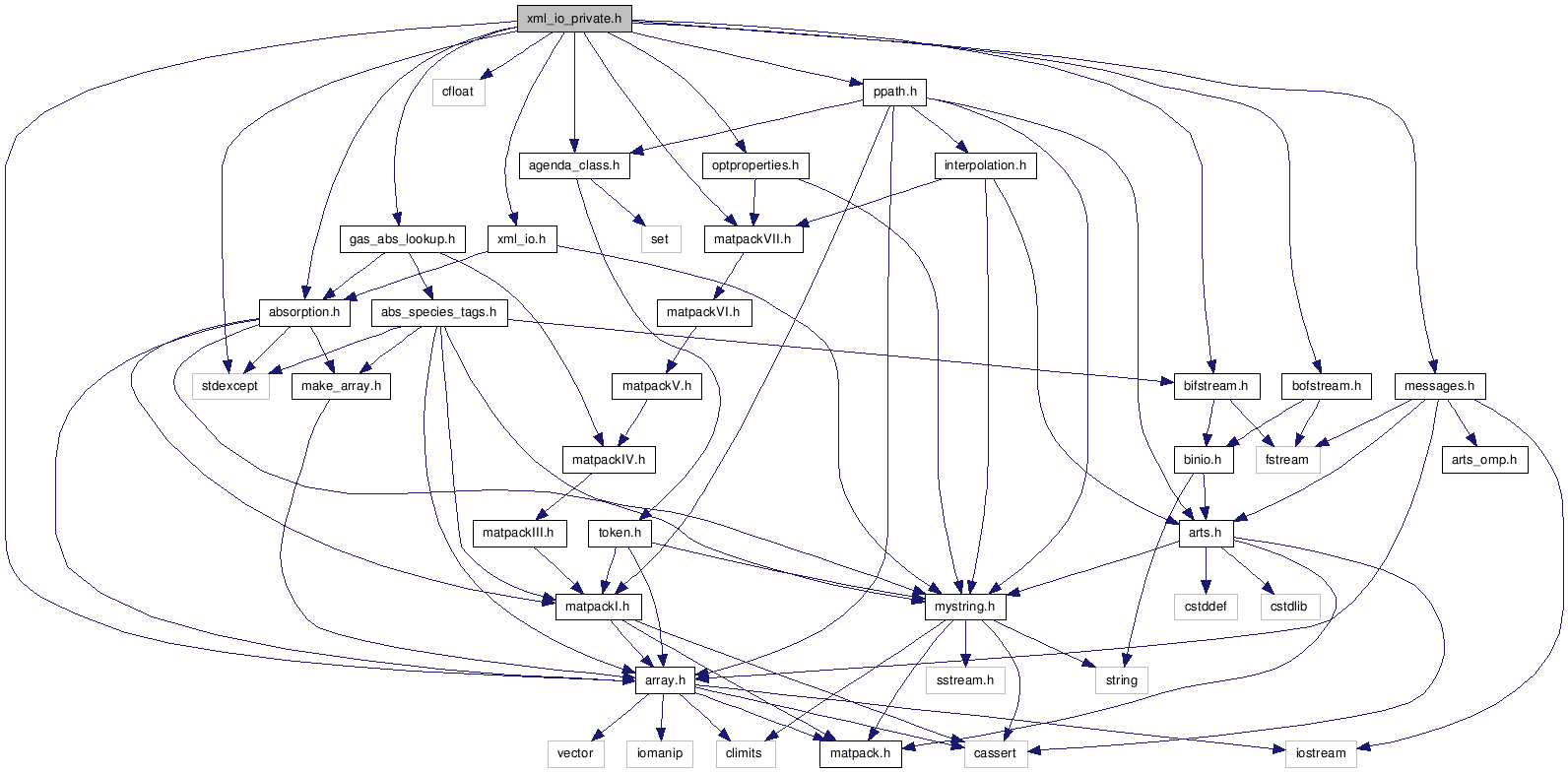

Include dependency graph for xml_io_private.h:

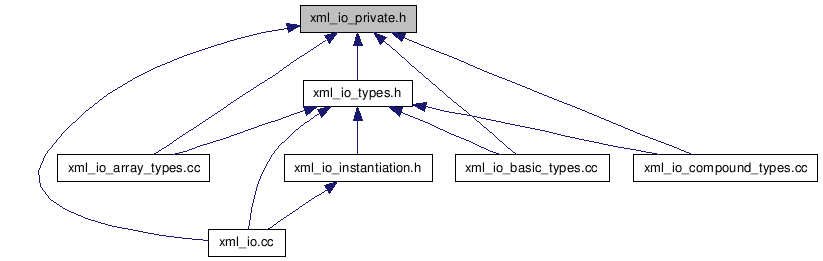

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	XMLAttribute
	XML attribute class. More...
class	ArtsXMLTag
	The ARTS XML tag class. More...
Functions
void	xml_open_output_file (ostream &file, const String &name)
void	xml_open_input_file (ifstream &file, const String &name)
	Open file for XML input.
void	xml_parse_error (const String &str_error)
	Throws XML parser runtime error.
void	xml_data_parse_error (ArtsXMLTag &tag, String str_error)
	Throws XML parser runtime error.
void	xml_read_header_from_stream (istream &is, FileType &ftype, NumericType &ntype, EndianType &etype)
	Reads XML header and root tag.
void	xml_read_footer_from_stream (istream &is)
	Reads closing root tag.
void	xml_write_header_to_stream (ostream &os, FileType ftype)
	Writes XML header and root tag.
void	xml_write_footer_to_stream (ostream &os)
	Write closing root tag.
void	xml_set_stream_precision (ostream &os)

---

Detailed Description

This file contains private function declarations and template instantiation to handle XML data files.

Author:

Oliver Lemke <olemke@core-dump.info>

Date:

2002-11-06

Definition in file xml_io_private.h.

---

Function Documentation

void xml_data_parse_error	(	ArtsXMLTag &	tag,
		String	str_error
	)

Throws XML parser runtime error.

This is used quite often inside the data parsing routines so it's a function for itself.

Parameters:

	tag	ArtsXMLTag
	str_error	Error description

Definition at line 635 of file xml_io.cc.

References ArtsXMLTag::write_to_stream().

Referenced by xml_parse_from_stream(), and xml_read_from_stream().

void xml_open_input_file	(	ifstream &	ifs,
		const String &	name
	)

Open file for XML input.

This function opens an XML file for reading.

Parameters:

	ifs	Input filestream
	name	Filename

Definition at line 521 of file xml_io.cc.

References out3.

Referenced by xml_read_arts_catalogue_from_file(), and xml_read_from_file().

void xml_open_output_file	(	ostream &	file,
		const String &	name
	)

void xml_parse_error

(

const String &

str_error

)

Throws XML parser runtime error.

This is used quite often inside the parsing routines so it's a function for itself.

Parameters:

str_error

Error description

Definition at line 617 of file xml_io.cc.

Referenced by ArtsXMLTag::check_attribute(), ArtsXMLTag::check_name(), ArtsXMLTag::get_attribute_value(), ArtsXMLTag::read_from_stream(), xml_read_from_stream(), and xml_read_header_from_stream().

void xml_read_footer_from_stream

(

istream &

is

)

Reads closing root tag.

Checks whether XML file ends correctly with </arts>.

Parameters:

is

Input stream

Definition at line 756 of file xml_io.cc.

References ArtsXMLTag::check_name(), and ArtsXMLTag::read_from_stream().

Referenced by xml_read_arts_catalogue_from_file(), and xml_read_from_file().

void xml_read_header_from_stream	(	istream &	is,
		FileType &	ftype,
		NumericType &	ntype,
		EndianType &	etype
	)

Reads XML header and root tag.

Check whether XML file has correct version tag and reads arts root tag information.

Parameters:

	is	Input stream
	ftype	File type
	ntype	Numeric type
	etype	Endian type

Definition at line 658 of file xml_io.cc.

References ArtsXMLTag::check_name(), ENDIAN_TYPE_BIG, ENDIAN_TYPE_LITTLE, FILE_TYPE_ASCII, FILE_TYPE_BINARY, ArtsXMLTag::get_attribute_value(), NUMERIC_TYPE_DOUBLE, NUMERIC_TYPE_FLOAT, ArtsXMLTag::read_from_stream(), and xml_parse_error().

Referenced by xml_read_arts_catalogue_from_file(), and xml_read_from_file().

void xml_set_stream_precision

(

ostream &

os

)

Definition at line 815 of file xml_io.cc.

References precision.

Referenced by xml_write_to_stream().

void xml_write_footer_to_stream

(

ostream &

os

)

Write closing root tag.

Parameters:

os

Output stream

Definition at line 804 of file xml_io.cc.

References ArtsXMLTag::set_name(), and ArtsXMLTag::write_to_stream().

Referenced by xml_write_to_file().

void xml_write_header_to_stream	(	ostream &	os,
		FileType	ftype
	)

Writes XML header and root tag.

Parameters:

	os	Output stream
	ftype	File type

Definition at line 771 of file xml_io.cc.

References ArtsXMLTag::add_attribute(), FILE_TYPE_ASCII, FILE_TYPE_BINARY, FILE_TYPE_ZIPPED_ASCII, ArtsXMLTag::set_name(), and ArtsXMLTag::write_to_stream().

Referenced by xml_write_to_file().
