xml_io.h File Reference

This file contains basic functions to handle XML data files. More...

#include "mystring.h"
#include "absorption.h"

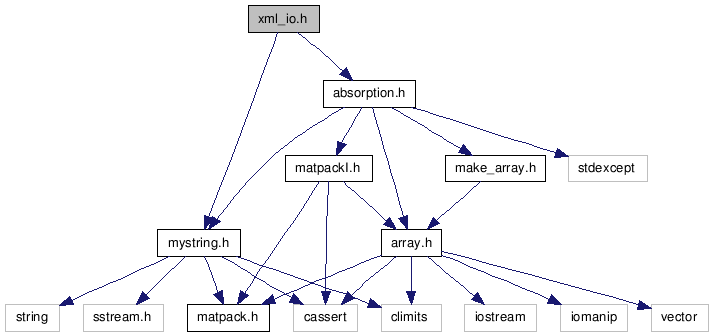

Include dependency graph for xml_io.h:

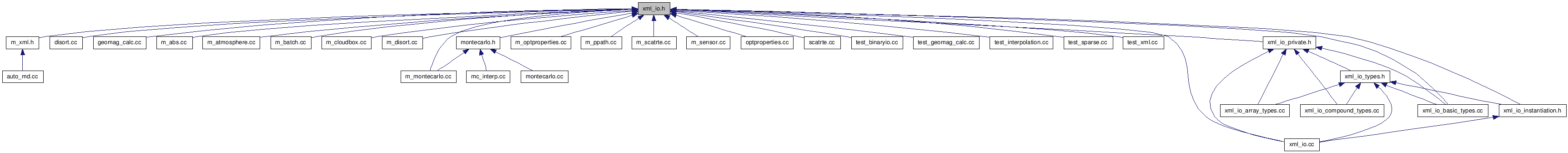

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	FileType { FILE_TYPE_ASCII, FILE_TYPE_ZIPPED_ASCII, FILE_TYPE_BINARY }
enum	NumericType { NUMERIC_TYPE_FLOAT, NUMERIC_TYPE_DOUBLE }
enum	EndianType { ENDIAN_TYPE_LITTLE, ENDIAN_TYPE_BIG }
Functions
void	filename_xml (String &filename, const String &varname)
	Gives the default filename for the XML formats.
void	filename_xml_with_index (String &filename, const Index &file_index, const String &varname)
	Gives the default filename, with file index, for the XML formats.
template<typename T>
void	xml_read_from_file (const String &filename, T &type)
	Reads data from XML file.
void	xml_read_arts_catalogue_from_file (const String &filename, ArrayOfLineRecord &type, const Numeric &fmin, const Numeric &fmax)
template<typename T>
void	xml_write_to_file (const String &filename, const T &type, const FileType ftype=FILE_TYPE_ASCII)
	Write data to XML file.

---

Detailed Description

This file contains basic functions to handle XML data files.

Author:

Oliver Lemke <olemke@core-dump.info>

Date:

2002-05-10

Definition in file xml_io.h.

---

Enumeration Type Documentation

enum EndianType

Enumerator:

ENDIAN_TYPE_LITTLE
ENDIAN_TYPE_BIG

Definition at line 45 of file xml_io.h.

enum FileType

Enumerator:

FILE_TYPE_ASCII
FILE_TYPE_ZIPPED_ASCII
FILE_TYPE_BINARY

Definition at line 38 of file xml_io.h.

enum NumericType

Enumerator:

NUMERIC_TYPE_FLOAT
NUMERIC_TYPE_DOUBLE

Definition at line 44 of file xml_io.h.

---

Function Documentation

void filename_xml	(	String &	filename,
		const String &	varname
	)

Gives the default filename for the XML formats.

The default name is only used if the filename is empty.

Parameters:

	filename	filename
	varname	variable name

Definition at line 362 of file xml_io.cc.

References out_basename.

Referenced by Cloudbox_ppath_rteCalc(), ReadXML(), and WriteXML().

void filename_xml_with_index	(	String &	filename,
		const Index &	file_index,
		const String &	varname
	)

Gives the default filename, with file index, for the XML formats.

The default name is only used if the filename is empty.

Parameters:

[out]	filename	filename
[in]	file_index	Index appended to the filename
[in]	varname	variable name

Definition at line 383 of file xml_io.cc.

References out_basename.

Referenced by WriteXMLIndexed().

void xml_read_arts_catalogue_from_file	(	const String &	filename,
		ArrayOfLineRecord &	type,
		const Numeric &	fmin,
		const Numeric &	fmax
	)

Definition at line 919 of file xml_io.cc.

References FILE_TYPE_ASCII, find_file(), out2, xml_open_input_file(), xml_read_footer_from_stream(), xml_read_from_stream(), and xml_read_header_from_stream().

Referenced by abs_linesReadFromArts().

template<typename T>

void xml_read_from_file	(	const String &	filename,
		T &	type
	)			[inline]

Reads data from XML file.

This is a generic functions that is used to read the XML header and footer info and calls the overloaded functions to read the data.

Parameters:

	filename	XML filename
	type	Generic return value

Definition at line 847 of file xml_io.cc.

References FILE_TYPE_ASCII, find_file(), out2, xml_open_input_file(), xml_read_footer_from_stream(), xml_read_from_stream(), and xml_read_header_from_stream().

Referenced by AtmRawRead(), DoitAngularGridsSet(), magfield_nk(), main(), ParticleTypeAdd(), ParticleTypeAddAll(), ReadXML(), test45(), test46(), ybatchMetProfiles(), and ybatchMetProfilesClear().

template<typename T>

void xml_write_to_file	(	const String &	filename,
		const T &	type,
		const FileType	ftype
	)			[inline]

Write data to XML file.

This is a generic functions that is used to write the XML header and footer info and calls the overloaded functions to write the data.

Parameters:

	filename	XML filename
	type	Generic input value
	ftype	File type

Definition at line 1002 of file xml_io.cc.

References FILE_TYPE_ASCII, FILE_TYPE_ZIPPED_ASCII, out2, xml_open_output_file(), xml_write_footer_to_stream(), xml_write_header_to_stream(), and xml_write_to_stream().

Referenced by Cloudbox_ppath_rteCalc(), DoitWriteIterationFields(), main(), scat_data_rawCheck(), test45(), test46(), WriteXML(), and ybatchMetProfilesClear().
