ppath.cc File Reference

Functions releated to calculation of propagation paths. More...

#include <cmath>
#include <stdexcept>
#include "agenda_class.h"
#include "array.h"
#include "arts_omp.h"
#include "auto_md.h"
#include "check_input.h"
#include "math_funcs.h"
#include "messages.h"
#include "mystring.h"
#include "logic.h"
#include "poly_roots.h"
#include "ppath.h"
#include "refraction.h"
#include "special_interp.h"

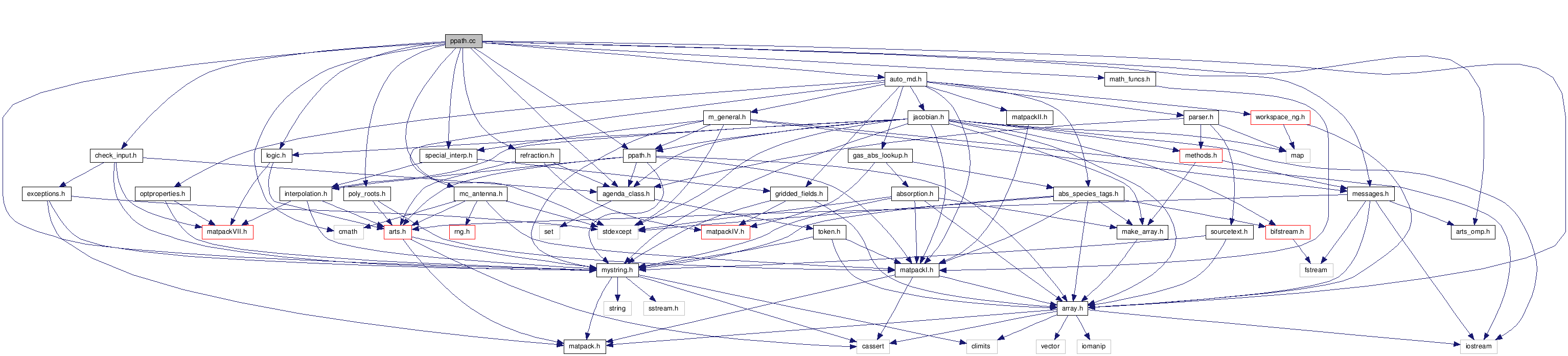

Include dependency graph for ppath.cc:

Go to the source code of this file.

Functions

double geometrical_ppc (const double &r, const double &za)

geometrical_ppc

double geompath_za_at_r (const double &ppc, const double &a_za, const double &r)

geompath_za_at_r

double geompath_r_at_za (const double &ppc, const double &za)

geompath_r_at_za

double geompath_lat_at_za (const double &za0, const double &lat0, const double &za)

geompath_lat_at_za

double geompath_l_at_r (const double &ppc, const double &r)

geompath_l_at_r

double geompath_r_at_l (const double &ppc, const double &l)

geompath_r_at_l

double geompath_r_at_lat (const double &ppc, const double &lat0, const double &za0, const double &lat)

geompath_r_at_lat

void geompath_from_r1_to_r2 (Vector &r, Vector &lat, Vector &za, double &lstep, const double &ppc, const double &r1, const double &lat1, const double &za1, const double &r2, const double &lmax)

geompath_from_r1_to_r2

double za_geom2other_point (const double &r1, const double &lat1, const double &r2, const double &lat2)

za_geom2other_point

void sph2cart (double &x, double &y, double &z, const double &r, const double &lat, const double &lon)

sph2cart

void cart2sph (double &r, double &lat, double &lon, const double &x, const double &y, const double &z)

cart2sph

void poslos2cart (double &x, double &y, double &z, double &dx, double &dy, double &dz, const double &r, const double &lat, const double &lon, const double &za, const double &aa)

poslos2cart

void cart2poslos (double &r, double &lat, double &lon, double &za, double &aa, const double &x, const double &y, const double &z, const double &dx, const double &dy, const double &dz)

cart2poslos

void resolve_lon (double &lon, const double &lon5, const double &lon6)

resolve_lon

void resolve_lon (float &lon, const double &lon5, const double &lon6)

void geompath_tanpos_3d (double &r_tan, double &lat_tan, double &lon_tan, double &l_tan, const double &r, const double &lat, const double &lon, const double &za, const double &aa, const double &ppc)

geompath_tanpos_3d

double plevel_slope_2d (ConstVectorView lat_grid, ConstVectorView r_geoid, ConstVectorView z_surf, const GridPos &gp, const double &za)

plevel_slope_2d

double plevel_slope_2d (const double &lat1, const double &lat2, const double &r1, const double &r2)

plevel_slope_2d

double rsurf_at_latlon (const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15, const double &r35, const double &r36, const double &r16, const double &lat, const double &lon)

rsurf_at_latlon

double plevel_slope_3d (const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15, const double &r35, const double &r36, const double &r16, const double &lat, const double &lon, const double &aa)

plevel_slope_3d

double plevel_slope_3d (ConstVectorView lat_grid, ConstVectorView lon_grid, ConstMatrixView r_geoid, ConstMatrixView z_surf, const GridPos &gp_lat, const GridPos &gp_lon, const double &aa)

plevel_slope_3d

double plevel_angletilt (const double &r, const double &c)

plevel_angletilt

bool is_los_downwards (const double &za, const double &tilt)

is_los_downwards

double plevel_crossing_2d (const double &rp, const double &za, const double &r0, double c)

plevel_crossing_2d

void plevel_crossing_3d (double &r, double &lat, double &lon, double &l, const double r_surf, const double r_start, const double lat_start, const double lon_start, const double za_start, const double &x, const double &y, const double &z, const double &dx, const double &dy, const double &dz)

plevel_crossing_3d

void do_gridrange_1d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start, const double &za_start, const double &ppc, const double &lmax, const double &ra, const double &rb, const double &rsurface)

do_gridrange_1d

void do_gridcell_2d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start, const double &za_start, const double &ppc, const double &lmax, const double &lat1, const double &lat3, const double &r1a, const double &r3a, const double &r3b, const double &r1b, const double &rsurface1, const double &rsurface3)

do_gridcell_2d

void do_gridcell_3d (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start0, const double &lon_start0, const double &za_start, const double &aa_start, const double &ppc, const double &lmax, const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15a, const double &r35a, const double &r36a, const double &r16a, const double &r15b, const double &r35b, const double &r36b, const double &r16b, const double &rsurface15, const double &rsurface35, const double &rsurface36, const double &rsurface16)

do_gridcell_3d

void ppath_init_structure (Ppath &ppath, const Index &atmosphere_dim, const Index &np)

ppath_init_structure

void ppath_set_background (Ppath &ppath, const Index &case_nr)

ppath_set_background

Index ppath_what_background (const Ppath &ppath)

ppath_what_background

void ppath_copy (Ppath &ppath1, const Ppath &ppath2)

ppath_copy

void ppath_append (Ppath &ppath1, const Ppath &ppath2)

ppath_append

void ppath_fill_1d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView za, ConstVectorView lstep, const double &r_geoid, ConstVectorView z_field, const Index &ip)

ppath_fill_1d

void ppath_fill_2d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView za, const double &lstep, ConstVectorView r_geoid, ConstMatrixView z_field, ConstVectorView lat_grid, const Index &ip, const Index &ilat)

ppath_fill_2d

void ppath_fill_3d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView lon, ConstVectorView za, ConstVectorView aa, const double &lstep, ConstMatrixView r_geoid, ConstTensor3View z_field, ConstVectorView lat_grid, ConstVectorView lon_grid, const Index &ip, const Index &ilat, const Index &ilon)

ppath_fill_3d

double refraction_ppc (const double &r, const double &za, const double &refr_index)

refraction_ppc

void ppath_start_1d (double &r_start, double &lat_start, double &za_start, Index &ip, const Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView DEBUG_ONLY(z_field), const double &DEBUG_ONLY(r_geoid), const double &DEBUG_ONLY(z_surface))

ppath_start_1d

void ppath_end_1d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView za_v, const double &lstep, ConstVectorView z_field, const double &r_geoid, const Index &ip, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)

ppath_end_1d

void ppath_start_2d (double &r_start, double &lat_start, double &za_start, Index &ip, Index &ilat, double &lat1, double &lat3, double &r1a, double &r3a, double &r3b, double &r1b, double &rsurface1, double &rsurface3, const Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, ConstVectorView z_surface)

ppath_start_2d

void ppath_end_2d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView za_v, const double &lstep, ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, const Index &ip, const Index &ilat, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)

ppath_end_2d

void ppath_start_3d (double &r_start, double &lat_start, double &lon_start, double &za_start, double &aa_start, Index &ip, Index &ilat, Index &ilon, double &lat1, double &lat3, double &lon5, double &lon6, double &r15a, double &r35a, double &r36a, double &r16a, double &r15b, double &r35b, double &r36b, double &r16b, double &rsurface15, double &rsurface35, double &rsurface36, double &rsurface16, Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface)

ppath_start_3d

void ppath_end_3d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView lon_v, ConstVectorView za_v, ConstVectorView aa_v, const double &lstep, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, const Index &ip, const Index &ilat, const Index &ilon, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)

ppath_end_3d

void interpolate_raytracing_points (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, ConstVectorView r_rt, ConstVectorView lat_rt, ConstVectorView lon_rt, ConstVectorView za_rt, ConstVectorView aa_rt, ConstVectorView l_rt, const double &lmax)

interpolate_raytracing_points

void from_raytracingarrays_to_ppath_vectors_1d_and_2d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, const Array< double > &r_array, const Array< double > &lat_array, const Array< double > &za_array, const Array< double > &l_array, const Index &reversed, const double &lmax)

from_raytracingarrays_to_ppath_vectors_1d_and_2d

void from_raytracingarrays_to_ppath_vectors_3d (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, const Array< double > &r_array, const Array< double > &lat_array, const Array< double > &lon_array, const Array< double > &za_array, const Array< double > &aa_array, const Array< double > &l_array, const double &lmax)

from_raytracingarrays_to_ppath_vectors_3d

void ppath_step_geom_1d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView z_field, const double &r_geoid, const double &z_surface, const double &lmax)

ppath_step_geom_1d

void ppath_step_geom_2d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, ConstVectorView z_surface, const double &lmax)

ppath_step_geom_2d

void ppath_step_geom_3d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const double &lmax)

ppath_step_geom_3d

void raytrace_1d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &za_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double za, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &ppc, const double &lraytrace, const double &r1, const double &r3, const double &r_surface, const double &r_geoid, ConstVectorView p_grid, ConstVectorView z_field, ConstVectorView t_field, ConstMatrixView vmr_field)

raytrace_1d_linear_euler

void raytrace_2d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &za_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double za, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &lraytrace, const double &lat1, const double &lat3, const double &r1a, const double &r3a, const double &r3b, const double &r1b, const double &rsurface1, const double &rsurface3, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView r_geoid, ConstMatrixView z_field, ConstMatrixView t_field, ConstTensor3View vmr_field)

raytrace_2d_linear_euler

void raytrace_3d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &lon_array, Array< double > &za_array, Array< double > &aa_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double lon, double za, double aa, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &lraytrace, const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15a, const double &r35a, const double &r36a, const double &r16a, const double &r15b, const double &r35b, const double &r36b, const double &r16b, const double &rsurface15, const double &rsurface35, const double &rsurface36, const double &rsurface16, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstMatrixView r_geoid, ConstTensor3View z_field, ConstTensor3View t_field, ConstTensor4View vmr_field)

raytrace_3d_linear_euler

void ppath_step_refr_1d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView z_field, ConstVectorView t_field, ConstMatrixView vmr_field, const double &r_geoid, const double &z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)

ppath_step_refr_1d

void ppath_step_refr_2d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView lat_grid, ConstMatrixView z_field, ConstMatrixView t_field, ConstTensor3View vmr_field, ConstVectorView r_geoid, ConstVectorView z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)

ppath_step_refr_2d

void ppath_step_refr_3d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstTensor3View t_field, ConstTensor4View vmr_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)

ppath_step_refr_3d

void ppath_start_stepping (Ppath &ppath, const Index &atmosphere_dim, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const Index &cloudbox_on, const ArrayOfIndex &cloudbox_limits, const bool &outside_cloudbox, ConstVectorView rte_pos, ConstVectorView rte_los)

ppath_start_stepping

void ppath_calc (Workspace &ws, Ppath &ppath, const Agenda &ppath_step_agenda, const Index &atmosphere_dim, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Index &cloudbox_on, const ArrayOfIndex &cloudbox_limits, const Vector &rte_pos, const Vector &rte_los, const bool &outside_cloudbox)

ppath_calc

Variables

const Numeric DEG2RAD

const Numeric RAD2DEG

const double RTOL = 10

const double LATLONTOL = 1e-6

const double ANGTOL = 1e-4

const double POLELAT = 89.9999

Detailed Description

Functions releated to calculation of propagation paths.

Author:: Patrick Eriksson <Patrick.Eriksson@rss.chalmers.se>

Date:: 2002-05-02

Functions to determine propagation paths for different atmospheric dimensionalities, with and without refraction.

The term propagation path is here shortened to ppath.

Definition in file ppath.cc.

Function Documentation

void cart2poslos	(	double &	r,
		double &	lat,
		double &	lon,
		double &	za,
		double &	aa,
		const double &	x,
		const double &	y,
		const double &	z,
		const double &	dx,
		const double &	dy,
		const double &	dz
	)

cart2poslos

The inverse of *poslos2cart*.

The azimuth angle is set to:
0 when the zenith angle is 0 or 180. atan2(dz,dx) at the poles (lat = +- 90).

The longitude is set to 0 at the poles (lat = +- 90).

Parameters:

	r	Out: Radius of observation position.
	lat	Out: Latitude of observation position.
	lon	Out: Longitude of observation position.
	za	Out: LOS zenith angle at observation position.
	aa	Out: LOS azimuth angle at observation position.
	x	x-coordinate of observation position.
	y	y-coordinate of observation position.
	z	z-coordinate of observation position.
	dx	x-part of LOS unit vector.
	dy	y-part of LOS unit vector.
	dz	z-part of LOS unit vector.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 647 of file ppath.cc.

References abs, ANGTOL, cart2sph(), DEG2RAD, POLELAT, and RAD2DEG.

Referenced by do_gridcell_3d(), mcPathTraceIPA(), plevel_slope_3d(), ppath_start_stepping(), and raytrace_3d_linear_euler().

void cart2sph	(	double &	r,
		double &	lat,
		double &	lon,
		const double &	x,
		const double &	y,
		const double &	z
	)

cart2sph

The inverse of *sph2cart*.

Parameters:

	r	Out: Radius of observation position.
	lat	Out: Latitude of observation position.
	lon	Out: Longitude of observation position.
	x	x-coordinate of observation position.
	y	y-coordinate of observation position.
	z	z-coordinate of observation position.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 522 of file ppath.cc.

References RAD2DEG.

Referenced by cart2poslos(), do_gridcell_3d(), and geompath_tanpos_3d().

void do_gridcell_2d	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	za_v,
		double &	lstep,
		Index &	endface,
		Index &	tanpoint,
		const double &	r_start0,
		const double &	lat_start,
		const double &	za_start,
		const double &	ppc,
		const double &	lmax,
		const double &	lat1,
		const double &	lat3,
		const double &	r1a,
		const double &	r3a,
		const double &	r3b,
		const double &	r1b,
		const double &	rsurface1,
		const double &	rsurface3
	)

do_gridcell_2d

Calculates the geometrical path through a 2D grid cell.

The function determines the geometrical path from the given start point to the boundary of the grid cell. The face where the path exits the grid cell is denoted as the end face. The following number coding is used for the variable *endface*:
1: The face at the lower latitude point.
2: The face at the lower (geometrically) pressure level.
3: The face at the upper latitude point.
4: The face at the upper (geometrically) pressure level.
7: The end point is an intersection with the surface.

The corner points are names r[lat][a,b]. For example: r3b. The latitudes are numbered to match the end faces. This means that the lower latitude has number 1, and the upper number 3. The pressure levels are named as a and b:
a: Lower pressure level (highest pressure).
b: Upper pressure level (lowest pressure).

Path points are included if *lmax*>0 and the distance to the end point is > than *lmax*.

The return vectors (*r_v* etc.) can have any length when handed to the function.

Parameters:

	r_v	Out: Vector with radius of found path points.
	lat_v	Out: Vector with latitude of found path points.
	za_v	Out: Vector with LOS zenith angle at found path points.
	lstep	Out: Vector with length along the path between points.
	endface	Out: Number coding for exit face. See above.
	tanpoint	Out: Set to 1 if end point is a tangent point.
	r_start0	Radius of start point.
	lat_start	Latitude of start point.
	za_start	LOS zenith angle at start point.
	ppc	Propagation path constant.
	lmax	Maximum allowed length along the path. -1 = no limit.
	lat1	Latitude of left end face (face 1) of the grid cell.
	lat3	Latitude of right end face (face 3) of the grid cell.
	r1a	Radius of lower-left corner of the grid cell.
	r3a	Radius of lower-right corner of the grid cell.
	r3b	Radius of upper-right corner of the grid cell (r3b>r3a)
	r1b	Radius of upper-left corner of the grid cell (r1b>r1a).
	rsurface1	Radius for the surface at lat1.
	rsurface3	Radius for the surface at lat3.

Author:: Patrick Eriksson

Date:: 2002-11-28

Definition at line 1552 of file ppath.cc.

References abs, ANGTOL, geompath_from_r1_to_r2(), geompath_r_at_lat(), geompath_r_at_za(), ConstVectorView::nelem(), plevel_crossing_2d(), plevel_slope_2d(), RTOL, and sign().

Referenced by ppath_step_geom_2d(), and raytrace_2d_linear_euler().

void do_gridcell_3d	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	lon_v,
		Vector &	za_v,
		Vector &	aa_v,
		double &	lstep,
		Index &	endface,
		Index &	tanpoint,
		const double &	r_start0,
		const double &	lat_start0,
		const double &	lon_start0,
		const double &	za_start,
		const double &	aa_start,
		const double &	ppc,
		const double &	lmax,
		const double &	lat1,
		const double &	lat3,
		const double &	lon5,
		const double &	lon6,
		const double &	r15a,
		const double &	r35a,
		const double &	r36a,
		const double &	r16a,
		const double &	r15b,
		const double &	r35b,
		const double &	r36b,
		const double &	r16b,
		const double &	rsurface15,
		const double &	rsurface35,
		const double &	rsurface36,
		const double &	rsurface16
	)

do_gridcell_3d

Calculates the geometrical path through a 3D grid cell.

The function determines the geometrical path from the given start point to the boundary of the grid cell. The face where the path exits the grid cell is denoted as the end face. The same number coding as in *do_gridcell_2d* is used, where the additional longitude end faces are numbered as:
5: The face at the lower longitude point.
6: The face at the upper longitude point.

The corner points are numbered as *do_gridcell_2d*, but 5 or 6 is added after the latitude number to indicate the longitude. This means that r16a, is the corner at lat1, lon6 and pressure level a.

See further *do_gridcell_2d*.

Parameters:

	r_v	Out: Vector with radius of found path points.
	lat_v	Out: Vector with latitude of found path points.
	lon_v	Out: Vector with longitude of found path points.
	za_v	Out: Vector with LOS zenith angle at found path points.
	aa_v	FIXME: Add documentation.
	lstep	Out: Vector with length along the path between points.
	endface	Out: Number coding for exit face. See above.
	tanpoint	Out: Set to 1 if end point is a tangent point.
	r_start0	Radius of start point.
	lat_start0	Latitude of start point.
	lon_start0	Longitude of start point.
	za_start	LOS zenith angle at start point.
	aa_start	LOS azimuth angle at start point.
	ppc	Propagation path constant.
	lmax	Maximum allowed length along the path. -1 = no limit.
	lat1	Latitude of left end face (face 1) of the grid cell.
	lat3	Latitude of right end face (face 3) of the grid cell.
	lon5	Lower longitude limit of the grid cell.
	lon6	Upper longitude limit of the grid cell.
	r15a	Radius of corner: lower p-level,lat1 and lon5.
	r35a	Radius of corner: lower p-level,lat3 and lon5.
	r36a	Radius of corner: lower p-level,lat3 and lon6.
	r16a	Radius of corner: lower p-level,lat1 and lon6.
	r15b	Radius of corner: upper p-level,lat1 and lon5.
	r35b	Radius of corner: upper p-level,lat3 and lon5.
	r36b	Radius of corner: upper p-level,lat3 and lon6.
	r16b	Radius of corner: upper p-level,lat1 and lon6.
	rsurface15	Radius for the surface at lat1 and lon5.
	rsurface35	Radius for the surface at lat3 and lon5.
	rsurface36	Radius for the surface at lat3 and lon6.
	rsurface16	Radius for the surface at lat1 and lon6.

Author:: Patrick Eriksson

Date:: 2002-11-28

Definition at line 1797 of file ppath.cc.

References abs, ANGTOL, cart2poslos(), cart2sph(), DEBUG_ONLY, dx, geompath_tanpos_3d(), geompath_za_at_r(), is_los_downwards(), LATLONTOL, plevel_angletilt(), plevel_slope_3d(), poslos2cart(), Vector::resize(), resolve_lon(), rsurf_at_latlon(), and RTOL.

Referenced by ppath_step_geom_3d(), and raytrace_3d_linear_euler().

void do_gridrange_1d	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	za_v,
		double &	lstep,
		Index &	endface,
		Index &	tanpoint,
		const double &	r_start0,
		const double &	lat_start,
		const double &	za_start,
		const double &	ppc,
		const double &	lmax,
		const double &	ra,
		const double &	rb,
		const double &	rsurface
	)

do_gridrange_1d

Calculates the geometrical path through a 1D grid range.

This function works as *do_gridcell_2d*, but is valid for 1D cases.

The coding of variables and end face is as for *do_gridcell_2d*, with the excpetion that end faces 2 and 4 do not exist here.

Parameters:

	r_v	Out: Vector with radius of found path points.
	lat_v	Out: Vector with latitude of found path points.
	za_v	Out: Vector with LOS zenith angle at found path points.
	lstep	Out: Vector with length along the path between points.
	endface	Out: Number coding for exit face. See above.
	tanpoint	Out: Set to 1 if end point is a tangent point.
	r_start0	Radius of start point.
	lat_start	Latitude of start point.
	za_start	LOS zenith angle at start point.
	ppc	Propagation path constant.
	lmax	Maximum allowed length along the path. -1 = no limit.
	ra	Radius of lower pressure level.
	rb	Radius of upper pressure level (rb > ra);
	rsurface	Radius for the surface.

Author:: Patrick Eriksson

Date:: 2002-12-02

Definition at line 1424 of file ppath.cc.

References geompath_from_r1_to_r2(), ConstVectorView::nelem(), and RTOL.

Referenced by ppath_step_geom_1d(), and raytrace_1d_linear_euler().

void from_raytracingarrays_to_ppath_vectors_1d_and_2d	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	za_v,
		double &	lstep,
		const Array< double > &	r_array,
		const Array< double > &	lat_array,
		const Array< double > &	za_array,
		const Array< double > &	l_array,
		const Index &	reversed,
		const double &	lmax
	)

from_raytracingarrays_to_ppath_vectors_1d_and_2d

A small help function to convert arrays with ray tracing points t interpolated values along the path.

This function is common for 1D and 2D.

Author:: Patrick Eriksson

Date:: 2002-12-02

Definition at line 3538 of file ppath.cc.

References interpolate_raytracing_points(), and Array< base >::nelem().

Referenced by ppath_step_refr_1d(), and ppath_step_refr_2d().

void from_raytracingarrays_to_ppath_vectors_3d	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	lon_v,
		Vector &	za_v,
		Vector &	aa_v,
		double &	lstep,
		const Array< double > &	r_array,
		const Array< double > &	lat_array,
		const Array< double > &	lon_array,
		const Array< double > &	za_array,
		const Array< double > &	aa_array,
		const Array< double > &	l_array,
		const double &	lmax
	)

from_raytracingarrays_to_ppath_vectors_3d

A small help function to convert arrays with ray tracing points to interpolated values along the path.

Author:: Patrick Eriksson

Date:: 2003-01-18

Definition at line 3600 of file ppath.cc.

References interpolate_raytracing_points(), and Array< base >::nelem().

Referenced by ppath_step_refr_3d().

double geometrical_ppc	(	const double &	r,
		const double &	za
	)

geometrical_ppc

Calculates the propagation path constant for pure geometrical calculations.

Both positive and negative zenith angles are handled.

Returns:: Path constant.

Parameters:

	r	Radius of the sensor position.
	za	Zenith angle of the sensor line-of-sight.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 126 of file ppath.cc.

References abs, and DEG2RAD.

Referenced by plevel_crossing_2d(), ppath_start_stepping(), ppath_step_geom_1d(), ppath_step_geom_2d(), ppath_step_geom_3d(), raytrace_1d_linear_euler(), raytrace_2d_linear_euler(), and raytrace_3d_linear_euler().

void geompath_from_r1_to_r2	(	Vector &	r,
		Vector &	lat,
		Vector &	za,
		double &	lstep,
		const double &	ppc,
		const double &	r1,
		const double &	lat1,
		const double &	za1,
		const double &	r2,
		const double &	lmax
	)

geompath_from_r1_to_r2

Determines radii, latitudes and zenith angles between two points of a propagation path.

Both start and end point are included in the returned vectors.

Parameters:

	r	Output: Radius of propagation path points.
	lat	Output: Latitude of propagation path points.
	za	Output: Zenith angle of propagation path points.
	lstep	Output: Distance along the path between the points.
	ppc	Propagation path constant.
	r1	Radius for first point.
	lat1	Latitude for first point.
	za1	Zenith angle for first point.
	r2	Radius for second point.
	lmax	Length criterion for distance between path points. A negative value means no length criterion.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 345 of file ppath.cc.

References abs, ANGTOL, geompath_l_at_r(), geompath_lat_at_za(), geompath_r_at_l(), geompath_za_at_r(), and Vector::resize().

Referenced by do_gridcell_2d(), and do_gridrange_1d().

double geompath_l_at_r	(	const double &	ppc,
		const double &	r
	)

geompath_l_at_r

Calculates the length from the tangent point for the given radius.

The tangent point is either real or imaginary depending on the zenith angle of the sensor. See geometrical_tangent_radius.

Returns:: Length along the path from the tangent point.

Parameters:

	ppc	Propagation path constant.
	r	Radius of the point of concern.

Author:: Patrick Eriksson

Date:: 2002-05-20

Definition at line 251 of file ppath.cc.

References RTOL.

Referenced by geompath_from_r1_to_r2(), raytrace_1d_linear_euler(), and raytrace_2d_linear_euler().

double geompath_lat_at_za	(	const double &	za0,
		const double &	lat0,
		const double &	za
	)

geompath_lat_at_za

Calculates the latitude for a given zenith angle along a geometrical propagation path.

Positive and negative zenith angles are handled. A positive zenith angle means a movement towards higher latitudes.

Returns:: The latitude of the second point.

Parameters:

	za0	The zenith angle of the starting point.
	lat0	The latitude of the starting point.
	za	The zenith angle of the second point.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 223 of file ppath.cc.

References abs.

Referenced by geompath_from_r1_to_r2(), plevel_crossing_2d(), ppath_start_stepping(), and ZaSatOccultation().

double geompath_r_at_l	(	const double &	ppc,
		const double &	l
	)

geompath_r_at_l

Calculates the radius for a distance from the tangent point.

The tangent point is either rwal or imaginary depending on the zenith angle of the sensor. See geometrical_tangent_radius.

Returns:: Radius.

Parameters:

	ppc	Propagation path constant.
	l	Length from the tangent point.

Author:: Patrick Eriksson

Date:: 2002-05-20

Definition at line 280 of file ppath.cc.

Referenced by geompath_from_r1_to_r2(), raytrace_1d_linear_euler(), and raytrace_2d_linear_euler().

double geompath_r_at_lat	(	const double &	ppc,
		const double &	lat0,
		const double &	za0,
		const double &	lat
	)

geompath_r_at_lat

Calculates the radius for a given latitude.

Returns:: Radius at the point of interest.

Parameters:

	ppc	Propagation path constant.
	lat0	Latitude at some other point of the path.
	za0	Zenith angle for the point with latitude lat0.
	lat	Latitude of the point of interest.

Author:: Patrick Eriksson

Date:: 2002-06-05

Definition at line 305 of file ppath.cc.

References abs, and geompath_r_at_za().

Referenced by do_gridcell_2d(), and ppath_start_stepping().

double geompath_r_at_za	(	const double &	ppc,
		const double &	za
	)

geompath_r_at_za

Calculates the zenith angle for a given radius along a geometrical propagation path.

Both positive and negative zenith angles are handled.

Returns:: Radius at the point of interest.

Parameters:

	ppc	Propagation path constant.
	za	Zenith angle at the point of interest.

Author:: Patrick Eriksson

Date:: 2002-06-05

Definition at line 195 of file ppath.cc.

References abs, and DEG2RAD.

Referenced by do_gridcell_2d(), and geompath_r_at_lat().

void geompath_tanpos_3d	(	double &	r_tan,
		double &	lat_tan,
		double &	lon_tan,
		double &	l_tan,
		const double &	r,
		const double &	lat,
		const double &	lon,
		const double &	za,
		const double &	aa,
		const double &	ppc
	)

geompath_tanpos_3d

Position of the tangent point for 3D cases.

The zenith angle must be >= 90.

Parameters:

	r_tan	Out: Radius of tangent point.
	lat_tan	Out: Latitude of tangent point.
	lon_tan	Out: Longitude of tangent point.
	l_tan	Out: Distance along path to the tangent point.
	r	Radius of observation position.
	lat	Latitude of observation position.
	lon	Longitude of observation position.
	za	LOS zenith angle at observation position.
	aa	LOS azimuth angle at observation position.
	ppc	FIXME: Add documentation.

Author:: Patrick Eriksson

Date:: 2002-12-31

Definition at line 793 of file ppath.cc.

References cart2sph(), dx, and poslos2cart().

Referenced by do_gridcell_3d(), and ppath_start_stepping().

double geompath_za_at_r	(	const double &	ppc,
		const double &	a_za,
		const double &	r
	)

geompath_za_at_r

Calculates the zenith angle for a given radius along a geometrical propagation path.

For downlooking cases, the two points must be on the same side of the tangent point.

Both positive and negative zenith angles are handled.

Returns:: Zenith angle at the point of interest.

Parameters:

	ppc	Propagation path constant.
	a_za	A zenith angle along the path on the same side of the tangent point as the point of interest.
	r	Radius of the point of interest.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 155 of file ppath.cc.

References abs, RAD2DEG, and RTOL.

Referenced by do_gridcell_3d(), geompath_from_r1_to_r2(), plevel_crossing_2d(), ppath_start_stepping(), raytrace_1d_linear_euler(), raytrace_3d_linear_euler(), VectorZtanToZa1D(), and ZaSatOccultation().

void interpolate_raytracing_points	(	Vector &	r_v,
		Vector &	lat_v,
		Vector &	lon_v,
		Vector &	za_v,
		Vector &	aa_v,
		double &	lstep,
		ConstVectorView	r_rt,
		ConstVectorView	lat_rt,
		ConstVectorView	lon_rt,
		ConstVectorView	za_rt,
		ConstVectorView	aa_rt,
		ConstVectorView	l_rt,
		const double &	lmax
	)

interpolate_raytracing_points

Interpolates a set of ray tracing points to a set of points linearly spaced along the path.

All quantities are interpolated linearly.

Empty vectors can be sent as input for *lon_rt* and *aa_rt* for 1D and 2D. The output vectors *lon_v* and *aa_v* are then not filled.

Author:: Patrick Eriksson

Date:: 2002-11-27

Definition at line 3453 of file ppath.cc.

References gridpos(), gridpos_force_end_fd(), interp(), interpweights(), max, ConstVectorView::nelem(), nlinspace(), Vector::resize(), and ConstVectorView::sum().

Referenced by from_raytracingarrays_to_ppath_vectors_1d_and_2d(), and from_raytracingarrays_to_ppath_vectors_3d().

bool is_los_downwards	(	const double &	za,
		const double &	tilt
	)

is_los_downwards

Determines if a line-of-sight is downwards compared to the angular tilt of the surface or a pressure level.

For example, this function can be used to determine if the line-of-sight goes into the surface for a starting point exactly on the surface radius.

As the radius of the surface and pressure levels varies as a function of latitude, it is not clear if a zenith angle of 90 is above or below e.g. the surface.

Returns:: Boolean that is true if LOS is downwards.

Parameters:

	za	Zenith angle of line-of-sight.
	tilt	Angular tilt of the surface or the pressure level (as returned by plevel_angletilt)

Author:: Patrick Eriksson

Date:: 2002-06-03

Definition at line 1129 of file ppath.cc.

References abs.

Referenced by do_gridcell_3d(), plevel_crossing_2d(), ppath_start_2d(), ppath_start_3d(), and ppath_start_stepping().

double plevel_angletilt	(	const double &	r,
		const double &	c
	)

plevel_angletilt

Calculates the angular tilt of the surface or a pressure level.

Note that the tilt value is a local value. The tilt for a constant slope value, is different for different radii.

Returns:: The angular tilt.

Parameters:

	r	The radius for the level at the point of interest.
	c	The radial slope, as returned by e.g. plevel_slope_2d.

Author:: Patrick Eriksson

Date:: 2002-06-03

Definition at line 1098 of file ppath.cc.

References RAD2DEG.

Referenced by do_gridcell_3d(), plevel_crossing_2d(), ppath_start_2d(), ppath_start_3d(), and ppath_start_stepping().

double plevel_crossing_2d	(	const double &	rp,
		const double &	za,
		const double &	r0,
		double	c
	)

plevel_crossing_2d

Calculates the angular distance to a crossing of a 2D pressure level or the surface.

The function solves the problem mentioned above for a pressure level, or the surface, where the radius changes linearly as a function of latitude. No analytical solution to the original problem has been found. The problem involves sine and cosine of the latitude difference and these functions are replaced with their Taylor expansions where the two first terms are kept. This should be OK as in practical situations, the latitude difference inside a grid cell should not exceed 2 degrees, and the accuracy should be sufficient for values up to 3 degrees.

The problem and its solution is further described in AUG. See the chapter on propagation paths.

Both positive and negative zenith angles are handled.

The function only looks for crossings in the forward direction of the given zenith angle. This means that if r>r0 and the absolute value of the zenith angle is < 90, no crossing will be found (if not the slope of the pressure level happen to be very strong).

For downlooking cases, only the part down to the tangent point is considered.

If the given path point is on the pressure level (r=r0), the solution 0 is rejected.

The latitude difference is set to 999 if no crossing exists.

The variable names below are the same as in AUG.

Returns:: The angular distance to the crossing.

Parameters:

	rp	Radius of a point of the path inside the grid cell
	za	Zenith angle of the path at r.
	r0	Radius of the pressure level or the surface at the latitude of r.
	c	Linear slope term, as returned by plevel_slope_2d.

Author:: Patrick Eriksson

Date:: 2002-06-07

Definition at line 1189 of file ppath.cc.

References abs, ANGTOL, beta, DEG2RAD, dmin, geometrical_ppc(), geompath_lat_at_za(), geompath_za_at_r(), is_los_downwards(), plevel_angletilt(), poly_root_solve(), and RAD2DEG.

Referenced by do_gridcell_2d(), and ppath_start_stepping().

void plevel_crossing_3d	(	double &	r,
		double &	lat,
		double &	lon,
		double &	l,
		const double	r_surf,
		const double	r_start,
		const double	lat_start,
		const double	lon_start,
		const double	za_start,
		const double &	x,
		const double &	y,
		const double &	z,
		const double &	dx,
		const double &	dy,
		const double &	dz
	)

plevel_crossing_3d

Calculates the radius of a crossing of a 3D pressure level or the surface.

The function solves the problem mentioned above for a pressure level, or the surface, for 3D cases. The problem is solved by making calculations for five radii, between the min and max values among r15*, *r35*, *r36* and *r16*. For each test radius, the latitude and longitude for the crossing of the path and the assumed radius are calculated. The test radius is then compared to the radius of the pressure level, or the surface, for the found latitude and longitude. These two radii shall ideally be identical. A radius is selected by an interpolation between the test radii.

The problem and its solution is further described in AUG. See the chapter on propagation paths.

The function only looks for crossings in the forward direction of the given zenith angle (neglecting all solutions giving *l* = 0).

The radius *r* is set to -1 if no crossing is found.

Parameters:

	r	Out: Radius of found crossing.
	lat	Out: Latitude of found crossing.
	lon	Out: Longitude of found crossing.
	l	Out: Length along the path to the crossing.
	r_surf	Radius of the level
	r_start	Radius of observation point.
	lat_start	Latitude of start point.
	lon_start	Longitude of start point.
	za_start	Zenith angle at observation point.
	x	x-coordinate of observation position.
	y	y-coordinate of observation position.
	z	z-coordinate of observation position.
	dx	x-part of LOS unit vector.
	dy	y-part of LOS unit vector.
	dz	z-part of LOS unit vector.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 1326 of file ppath.cc.

References abs, ANGTOL, q, and RAD2DEG.

Referenced by ppath_start_stepping().

double plevel_slope_2d	(	const double &	lat1,
		const double &	lat2,
		const double &	r1,
		const double &	r2
	)

plevel_slope_2d

Calculates the radial slope of the surface or a pressure level for 2D.

This function returns the same quantity as the function above, but takes the radius and latitude at two points of the pressure level, instead of vector input. That is, for this function the interesting latitude range is known when calling the function.

Returns:: The radial slope [m/degree]

Parameters:

	lat1	A latitude.
	lat2	Another latitude.
	r1	Radius at lat1.
	r2	Radius at lat2.

Author:: Patrick Eriksson

Date:: 2002-12-21

Definition at line 884 of file ppath.cc.

double plevel_slope_2d	(	ConstVectorView	lat_grid,
		ConstVectorView	r_geoid,
		ConstVectorView	z_surf,
		const GridPos &	gp,
		const double &	za
	)

plevel_slope_2d

Calculates the radial slope of the surface or a pressure level for 2D.

The radial slope is here the derivative of the radius with respect to the latitude. The unit is accordingly m/degree.

Note that the radius is defined to change linearly between grid points, and the slope is constant between to points of the latitude grid.

Note also that the slope is always calculated with respect to increasing latitudes, independently of the zenith angle. The zenith angle is only used to determine which grid range that is of interest when the position is exactly on top of a grid point.

Returns:: The radial slope [m/degree]

Parameters:

	lat_grid	The latitude grid.
	r_geoid	Radius of the geoid for the latitude dimension.
	z_surf	Geometrical altitude of the surface, or the pressure level of interest, for the latitide dimension
	gp	Latitude grid position for the position of interest
	za	LOS zenith angle.

Author:: Patrick Eriksson

Date:: 2002-06-03

Definition at line 851 of file ppath.cc.

References abs, and gridpos2gridrange().

Referenced by do_gridcell_2d(), ppath_start_2d(), and ppath_start_stepping().

double plevel_slope_3d	(	ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstMatrixView	r_geoid,
		ConstMatrixView	z_surf,
		const GridPos &	gp_lat,
		const GridPos &	gp_lon,
		const double &	aa
	)

plevel_slope_3d

Calculates the radial slope of the surface or a pressure level for 3D.

The radial slope is here the derivative of the radius with respect to an angular change (in degrees) along the great circle along the given azimuth angle. That is, how much the radius would change for a movement of r*pi/180 in the given azimuth angle (if the slope where constant along the distance). The unit is m/degree.

For a point exactly on a grid value it is not clear if it is the range below or above that is of interest. The azimuth angle is used to resolve such cases.

This function is in practice another way to call the non-vector version of the function above.

Returns:: The radial slope [m/degree]

Parameters:

	lat_grid	The latitude grid.
	lon_grid	The longitude grid.
	r_geoid	As the WSV with the same name.
	z_surf	Geometrical altitude of the surface, or the pressure level of interest.
	gp_lat	Latitude grid position for the position of interest.
	gp_lon	Longitude grid position for the position of interest.
	aa	Azimuth angle.

Author:: Patrick Eriksson

Date:: 2002-06-03

Definition at line 1048 of file ppath.cc.

References abs, gridpos2gridrange(), interp(), interpweights(), and plevel_slope_3d().

double plevel_slope_3d	(	const double &	lat1,
		const double &	lat3,
		const double &	lon5,
		const double &	lon6,
		const double &	r15,
		const double &	r35,
		const double &	r36,
		const double &	r16,
		const double &	lat,
		const double &	lon,
		const double &	aa
	)

plevel_slope_3d

Calculates the local radial slope of the surface or a pressure level for 3D.

The function works basically as the non-vector version of plevel_slope_2d*, but the position and viewing direction must here be specicified as the slope varies inside the cell grid, in constrast to a 2D latitude grid range.

See further the other version of the function below.

Returns:: The radial slope [m/degree]

Parameters:

	lat1	Lower latitude of grid cell.
	lat3	Upper latitude of grid cell.
	lon5	Lower longitude of grid cell.
	lon6	Upper longitude of grid cell.
	r15	Radius at crossing of lat1 and lon5.
	r35	Radius at crossing of lat3 and lon5.
	r36	Radius at crossing of lat3 and lon6.
	r16	Radius at crossing of lat1 and lon6.
	lat	Latitude for which slope shall be determined.
	lon	Longitude for which slope shall be determined.
	aa	Azimuth angle for which slope shall be determined.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 977 of file ppath.cc.

References cart2poslos(), DEG2RAD, dx, poslos2cart(), and rsurf_at_latlon().

Referenced by do_gridcell_3d(), plevel_slope_3d(), ppath_start_3d(), and ppath_start_stepping().

void poslos2cart	(	double &	x,
		double &	y,
		double &	z,
		double &	dx,
		double &	dy,
		double &	dz,
		const double &	r,
		const double &	lat,
		const double &	lon,
		const double &	za,
		const double &	aa
	)

poslos2cart

Conversion from position and LOS to cartesian coordinates

A position (in geographical coordinates) and LOS are converted to a cartesian position and a viewing vector. The viewing direction is the the vector [dx,dy,dz]. This vector is normalised (it has length 1).

See the user guide for definition on the zenith and azimuth angles.

Parameters:

	x	Out: x-coordinate of observation position.
	y	Out: y-coordinate of observation position.
	z	Out: z-coordinate of observation position.
	dx	Out: x-part of LOS unit vector.
	dy	Out: y-part of LOS unit vector.
	dz	Out: z-part of LOS unit vector.
	r	Radius of observation position.
	lat	Latitude of observation position.
	lon	Longitude of observation position.
	za	LOS zenith angle at observation position.
	aa	LOS azimuth angle at observation position.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 562 of file ppath.cc.

References abs, DEG2RAD, POLELAT, sign(), and sph2cart().

Referenced by do_gridcell_3d(), geompath_tanpos_3d(), mcPathTraceIPA(), plevel_slope_3d(), ppath_start_stepping(), and raytrace_3d_linear_euler().

void ppath_append	(	Ppath &	ppath1,
		const Ppath &	ppath2
	)

ppath_append

Combines two Ppath structures

The function appends a Ppath structure to another structure.

All the data of ppath1 is kept.

The first point in ppath2 is assumed to be the same as the last in ppath1. Only data in ppath from the fields pos, los, z, l_step, gp_XXX and background are considered.

Parameters:

	ppath1	Output: Ppath structure to be expanded.
	ppath2	The Ppath structure to include in ppath.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 2445 of file ppath.cc.

References Ppath::background, Ppath::dim, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos_copy(), joker, Ppath::l_step, Ppath::los, Array< base >::nelem(), ConstVectorView::nelem(), Ppath::next_parts, Ppath::np, Ppath::p, Ppath::pos, ppath_copy(), ppath_init_structure(), ppath_what_background(), Ppath::t, Ppath::vmr, and Ppath::z.

Referenced by ppath_step_geom_1d(), ppath_step_geom_2d(), ppath_step_geom_3d(), ppath_step_refr_1d(), ppath_step_refr_2d(), and ppath_step_refr_3d().

void ppath_calc	(	Workspace &	ws,
		Ppath &	ppath,
		const Agenda &	ppath_step_agenda,
		const Index &	atmosphere_dim,
		const Vector &	p_grid,
		const Vector &	lat_grid,
		const Vector &	lon_grid,
		const Tensor3 &	z_field,
		const Matrix &	r_geoid,
		const Matrix &	z_surface,
		const Index &	cloudbox_on,
		const ArrayOfIndex &	cloudbox_limits,
		const Vector &	rte_pos,
		const Vector &	rte_los,
		const bool &	outside_cloudbox
	)

ppath_calc

This is the core for the WSM ppathCalc.

This function takes the same input as ppathCalc (that is, those input arguments are the WSV with the same name), but there are some additional argument(s):

Parameters:

	ws	Current Workspace
	ppath	Output: A Ppath structure
	ppath_step_agenda	FIXME: Add documentation.
	atmosphere_dim	The atmospheric dimensionality.
	p_grid	The pressure grid.
	lat_grid	The latitude grid.
	lon_grid	The longitude grid.
	z_field	The field of geometrical altitudes.
	r_geoid	The geoid radius.
	z_surface	Surface altitude.
	cloudbox_on	Flag to activate the cloud box.
	cloudbox_limits	Index limits of the cloud box.
	rte_pos	The position of the sensor.
	rte_los	The line-of-sight of the sensor.
	outside_cloudbox	Boolean to flag if the propagation path is (expected to be) outside the cloudbox. Ordinary clear sky calculations are selected by the value 1. The value 0 means tracking of a propagation path inside the cloudbox. The path is then tracked to the cloudbox boundary.

Author:: Patrick Eriksson

Date:: 2003-01-08

Definition at line 6112 of file ppath.cc.

References abs, Ppath::background, chk_if_in_range(), chk_if_over_0(), chk_vector_length(), Ppath::constant, fractional_gp(), Ppath::geom_tan_pos, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos(), is_gridpos_at_index_i(), joker, Ppath::l_step, Ppath::los, Ppath::method, min, Array< base >::nelem(), ConstVectorView::nelem(), Ppath::np, ConstTensor3View::npages(), out2, out3, Ppath::pos, ppath_init_structure(), ppath_set_background(), ppath_start_stepping(), ppath_step_agendaExecute(), ppath_what_background(), Ppath::refraction, Vector::resize(), Ppath::tan_pos, and Ppath::z.

Referenced by iwp_cloud_opt_pathCalc(), iy_calc(), MCIPA(), ppathCalc(), rte_pos_and_losFromTangentPressure(), and ZaSatOccultation().

void ppath_copy	(	Ppath &	ppath1,
		const Ppath &	ppath2
	)

ppath_copy

Copy the content in ppath2 to ppath1.

The ppath1 structure must be allocated before calling the function. The structure can be allocated to hold more points than found in ppath2. The data of ppath2 is placed in the first positions of ppath1.

Parameters:

	ppath1	Output: PPath structure.
	ppath2	The Ppath structure to be copied.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 2366 of file ppath.cc.

References Ppath::background, Ppath::constant, Ppath::dim, Ppath::geom_tan_pos, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos_copy(), joker, Ppath::l_step, Ppath::los, Ppath::method, Array< base >::nelem(), ConstVectorView::nelem(), Ppath::next_parts, Ppath::np, ConstMatrixView::nrows(), Ppath::p, Ppath::pos, Ppath::refraction, Matrix::resize(), Vector::resize(), Ppath::t, Ppath::tan_pos, Ppath::vmr, and Ppath::z.

Referenced by get_radiative_background(), ppath_append(), ppath_step_geom_1d(), ppath_step_geom_2d(), ppath_step_geom_3d(), ppath_step_refr_1d(), ppath_step_refr_2d(), and ppath_step_refr_3d().

void ppath_end_1d	(	Ppath &	ppath,
		ConstVectorView	r_v,
		ConstVectorView	lat_v,
		ConstVectorView	za_v,
		const double &	lstep,
		ConstVectorView	z_field,
		const double &	r_geoid,
		const Index &	ip,
		const Index &	endface,
		const Index &	tanpoint,
		const String &	method,
		const Index &	refraction,
		const double &	ppc
	)

ppath_end_1d

Internal help function for 1D path calculations.

The function performs the end part of the calculations, that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-11-27

Definition at line 2893 of file ppath.cc.

References Ppath::constant, Ppath::gp_p, gridpos_force_end_fd(), Ppath::method, ConstVectorView::nelem(), out3, ppath_fill_1d(), ppath_init_structure(), ppath_set_background(), Ppath::refraction, Vector::resize(), and Ppath::tan_pos.

Referenced by ppath_step_geom_1d(), and ppath_step_refr_1d().

void ppath_end_2d	(	Ppath &	ppath,
		ConstVectorView	r_v,
		ConstVectorView	lat_v,
		ConstVectorView	za_v,
		const double &	lstep,
		ConstVectorView	lat_grid,
		ConstMatrixView	z_field,
		ConstVectorView	r_geoid,
		const Index &	ip,
		const Index &	ilat,
		const Index &	endface,
		const Index &	tanpoint,
		const String &	method,
		const Index &	refraction,
		const double &	ppc
	)

ppath_end_2d

Internal help function for 2D path calculations.

The function performs the end part of the calculations, that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-11-29

Definition at line 3099 of file ppath.cc.

References Ppath::constant, Ppath::gp_lat, Ppath::gp_p, gridpos_force_end_fd(), Ppath::method, ConstVectorView::nelem(), out3, ppath_fill_2d(), ppath_init_structure(), ppath_set_background(), Ppath::refraction, Vector::resize(), and Ppath::tan_pos.

Referenced by ppath_step_geom_2d(), and ppath_step_refr_2d().

void ppath_end_3d	(	Ppath &	ppath,
		ConstVectorView	r_v,
		ConstVectorView	lat_v,
		ConstVectorView	lon_v,
		ConstVectorView	za_v,
		ConstVectorView	aa_v,
		const double &	lstep,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstTensor3View	z_field,
		ConstMatrixView	r_geoid,
		const Index &	ip,
		const Index &	ilat,
		const Index &	ilon,
		const Index &	endface,
		const Index &	tanpoint,
		const String &	method,
		const Index &	refraction,
		const double &	ppc
	)

ppath_end_3d

Internal help function for 3D path calculations.

The function performs the end part of the calculations, that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 3380 of file ppath.cc.

References Ppath::constant, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos_force_end_fd(), Ppath::method, ConstVectorView::nelem(), out3, ppath_fill_3d(), ppath_init_structure(), ppath_set_background(), Ppath::refraction, Vector::resize(), and Ppath::tan_pos.

Referenced by ppath_step_geom_3d(), and ppath_step_refr_3d().

void ppath_fill_1d	(	Ppath &	ppath,
		ConstVectorView	r,
		ConstVectorView	lat,
		ConstVectorView	za,
		ConstVectorView	lstep,
		const double &	r_geoid,
		ConstVectorView	z_field,
		const Index &	ip
	)

ppath_fill_1d

Fills a 1D Ppath structure with position and LOS values.

The function fills the fields: pos, los, z, l_step and gp_p. The pressure grid positions (gp_p) are filtered through gridpos_check_fd.

The structure fields must be allocated to correct size before calling the function. The field size must be at least as large as the length of r, lat and za vectors.

The length along the path shall be the same between all points.

Parameters:

	ppath	Output: Ppath structure.
	r	Vector with radius for the path points.
	lat	Vector with latitude for the path points.
	za	Vector with zenith angle for the path points.
	lstep	Length along the path between the points.
	r_geoid	Geoid radii.
	z_field	Geometrical altitudes.
	ip	Pressure grid range.

Author:: Patrick Eriksson

Date:: 2002-07-18

Definition at line 2528 of file ppath.cc.

References Ppath::gp_p, gridpos_check_fd(), Ppath::l_step, Ppath::los, ConstVectorView::nelem(), Ppath::pos, and Ppath::z.

Referenced by ppath_end_1d().

void ppath_fill_2d	(	Ppath &	ppath,
		ConstVectorView	r,
		ConstVectorView	lat,
		ConstVectorView	za,
		const double &	lstep,
		ConstVectorView	r_geoid,
		ConstMatrixView	z_field,
		ConstVectorView	lat_grid,
		const Index &	ip,
		const Index &	ilat
	)

ppath_fill_2d

Fills a 2D Ppath structure with position and LOS values.

The function fills the fields: pos, los, z, l_step, gp_p and gp_lat.

The structure fields must be allocated to correct size before calling the function. The field size must be at least as large as the length of r, lat and za vectors.

The length along the path shall be the same between all points.

Parameters:

	ppath	Output: Ppath structure.
	r	Vector with radius for the path points.
	lat	Vector with latitude for the path points.
	za	Vector with zenith angle for the path points.
	lstep	Length along the path between the points.
	r_geoid	Geoid radii.
	z_field	Geometrical altitudes
	lat_grid	Latitude grid.
	ip	Pressure grid range.
	ilat	Latitude grid range.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 2588 of file ppath.cc.

References Ppath::gp_lat, Ppath::gp_p, gridpos_check_fd(), Ppath::l_step, Ppath::los, ConstVectorView::nelem(), Ppath::pos, and Ppath::z.

Referenced by ppath_end_2d().

void ppath_fill_3d	(	Ppath &	ppath,
		ConstVectorView	r,
		ConstVectorView	lat,
		ConstVectorView	lon,
		ConstVectorView	za,
		ConstVectorView	aa,
		const double &	lstep,
		ConstMatrixView	r_geoid,
		ConstTensor3View	z_field,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		const Index &	ip,
		const Index &	ilat,
		const Index &	ilon
	)

ppath_fill_3d

Fills a 3D Ppath structure with position and LOS values.

The function fills the fields: pos, los, z, l_step, gp_p, gp_lat and gp_lon.

The structure fields must be allocated to correct size before calling the function. The field size must be at least as large as the length of r, lat and za vectors.

The length along the path shall be the same between all points.

Parameters:

	ppath	Output: Ppath structure.
	r	Vector with radius for the path points.
	lat	Vector with latitude for the path points.
	lon	Vector with longitude for the path points.
	za	Vector with zenith angle for the path points.
	aa	Vector with azimuth angle for the path points.
	lstep	Length along the path between the points.
	r_geoid	Geoid radii.
	z_field	Geometrical altitudes
	lat_grid	Latitude grid.
	lon_grid	Longitude grid.
	ip	Pressure grid range.
	ilat	Latitude grid range.
	ilon	Longitude grid range.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 2677 of file ppath.cc.

References abs, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos_check_fd(), Ppath::l_step, Ppath::los, ConstVectorView::nelem(), Ppath::pos, rsurf_at_latlon(), and Ppath::z.

Referenced by ppath_end_3d().

void ppath_init_structure	(	Ppath &	ppath,
		const Index &	atmosphere_dim,
		const Index &	np
	)

ppath_init_structure

Initiates a Ppath structure to hold the given number of points.

All fields releated with the surface, symmetry and tangent point are set to 0 or empty. The background field is set to background case 0. The constant field is set to -1. The refraction field is set to 0.

The length of the l_step field is set to np-1.

Parameters:

	ppath	Output: A Ppath structure.
	atmosphere_dim	The atmospheric dimensionality.
	np	Number of points of the path.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 2223 of file ppath.cc.

References Ppath::constant, Ppath::dim, Ppath::geom_tan_pos, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, Ppath::l_step, Ppath::los, Ppath::method, Ppath::next_parts, Ppath::np, Ppath::p, Ppath::pos, ppath_set_background(), Ppath::refraction, Vector::resize(), Matrix::resize(), Ppath::t, Ppath::tan_pos, Ppath::vmr, and Ppath::z.

Referenced by cloud_ppath_update1D(), cloud_ppath_update1D_noseq(), cloud_ppath_update3D(), cloudbox_ppath_start_stepping(), Cloudbox_ppathCalc(), get_radiative_background(), ppath_append(), ppath_calc(), ppath_end_1d(), ppath_end_2d(), ppath_end_3d(), ppath_start_stepping(), ppath_step_geom_1d(), ppath_step_geom_2d(), ppath_step_geom_3d(), ppath_step_in_cloudbox(), ppath_step_refr_1d(), ppath_step_refr_2d(), and ppath_step_refr_3d().

void ppath_set_background	(	Ppath &	ppath,
		const Index &	case_nr
	)

ppath_set_background

Sets the background field of a Ppath structure.

The different background cases have a number coding to simplify a possible change of the strings and checking of the what case that is valid.

The case numbers are:
0. Not yet set.
1. Space.
2. The surface.
3. The level of the cloud box.
4. The interior of the cloud box.

Parameters:

	ppath	Output: A Ppath structure.
	case_nr	Case number (see above)

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 2287 of file ppath.cc.

References Ppath::background.

Referenced by Cloudbox_ppathCalc(), ppath_calc(), ppath_end_1d(), ppath_end_2d(), ppath_end_3d(), ppath_init_structure(), and ppath_start_stepping().

void ppath_start_1d	(	double &	r_start,
		double &	lat_start,
		double &	za_start,
		Index &	ip,
		const Ppath &	ppath,
		ConstVectorView	DEBUG_ONLYp_grid,
		ConstVectorView	DEBUG_ONLYz_field,
		const double &	DEBUG_ONLYr_geoid,
		const double &	DEBUG_ONLYz_surface
	)

ppath_start_1d

Internal help function for 1D path calculations.

The function does the asserts and determined some variables that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-11-13

Definition at line 2829 of file ppath.cc.

References DEBUG_ONLY, Ppath::dim, Ppath::gp_p, gridpos2gridrange(), is_decreasing(), is_increasing(), is_size(), Ppath::los, Ppath::np, out3, and Ppath::pos.

Referenced by ppath_step_geom_1d(), and ppath_step_refr_1d().

void ppath_start_2d	(	double &	r_start,
		double &	lat_start,
		double &	za_start,
		Index &	ip,
		Index &	ilat,
		double &	lat1,
		double &	lat3,
		double &	r1a,
		double &	r3a,
		double &	r3b,
		double &	r1b,
		double &	rsurface1,
		double &	rsurface3,
		const Ppath &	ppath,
		ConstVectorView	DEBUG_ONLYp_grid,
		ConstVectorView	lat_grid,
		ConstMatrixView	z_field,
		ConstVectorView	r_geoid,
		ConstVectorView	z_surface
	)

ppath_start_2d

Internal help function for 2D path calculations.

The function does the asserts and determined some variables that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-11-18

Definition at line 2960 of file ppath.cc.

References abs, DEBUG_ONLY, Ppath::dim, Ppath::gp_lat, Ppath::gp_p, gridpos2gridrange(), is_decreasing(), is_gridpos_at_index_i(), is_increasing(), is_los_downwards(), is_size(), Ppath::los, ConstVectorView::nelem(), Ppath::np, out3, plevel_angletilt(), plevel_slope_2d(), and Ppath::pos.

Referenced by ppath_step_geom_2d(), and ppath_step_refr_2d().

void ppath_start_3d	(	double &	r_start,
		double &	lat_start,
		double &	lon_start,
		double &	za_start,
		double &	aa_start,
		Index &	ip,
		Index &	ilat,
		Index &	ilon,
		double &	lat1,
		double &	lat3,
		double &	lon5,
		double &	lon6,
		double &	r15a,
		double &	r35a,
		double &	r36a,
		double &	r16a,
		double &	r15b,
		double &	r35b,
		double &	r36b,
		double &	r16b,
		double &	rsurface15,
		double &	rsurface35,
		double &	rsurface36,
		double &	rsurface16,
		Ppath &	ppath,
		ConstVectorView	DEBUG_ONLYp_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstTensor3View	z_field,
		ConstMatrixView	r_geoid,
		ConstMatrixView	z_surface
	)

ppath_start_3d

Internal help function for 3D path calculations.

The function does the asserts and determined some variables that are common for geometrical and refraction calculations.

See the code fo details.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 3164 of file ppath.cc.

References abs, DEBUG_ONLY, Ppath::dim, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos(), gridpos2gridrange(), gridpos_force_end_fd(), is_decreasing(), is_gridpos_at_index_i(), is_increasing(), is_los_downwards(), is_size(), Ppath::los, ConstVectorView::nelem(), Ppath::np, out3, plevel_angletilt(), plevel_slope_3d(), Ppath::pos, rsurf_at_latlon(), and RTOL.

Referenced by ppath_step_geom_3d(), and ppath_step_refr_3d().

void ppath_start_stepping	(	Ppath &	ppath,
		const Index &	atmosphere_dim,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstTensor3View	z_field,
		ConstMatrixView	r_geoid,
		ConstMatrixView	z_surface,
		const Index &	cloudbox_on,
		const ArrayOfIndex &	cloudbox_limits,
		const bool &	outside_cloudbox,
		ConstVectorView	rte_pos,
		ConstVectorView	rte_los
	)

ppath_start_stepping

Initiates a Ppath structure for calculation of a path with *ppath_step*.

The function performs two main tasks. As mentioned above, it initiates a Ppath structure (a), but it also checks that the end point of the path is at an allowed location (b).

(a): The Ppath structure is set to hold the position and LOS of the last point of the path inside the atmosphere. This point is either the sensor position, or the point where the path leaves the model atmosphere. If the path is totally outside the atmosphere, no point is put into the structure. If the (practical) end and start points are identical, such as when the sensor is inside the cloud box, the background field is set.

(b): If it is found that the end point of the path is at an illegal position a detailed error message is given. Not allowed cases are:
1. The sensor is placed below surface level.
2. For 2D and 3D, the path leaves the model atmosphere at a latitude or longitude end face.
3. For 2D and 3D, the path is totally outside the atmosphere and the latitude and longitude of the tangent point is outside the range of the corresponding grids.

All input variables are identical with the WSV with the same name. The output variable is here called ppath for simplicity, but is in fact *ppath_step*.

Parameters:

	ppath	Output: A Ppath structure.
	atmosphere_dim	The atmospheric dimensionality.
	p_grid	The pressure grid.
	lat_grid	The latitude grid.
	lon_grid	The longitude grid.
	z_field	The field of geometrical altitudes.
	r_geoid	The geoid radius.
	z_surface	Surface altitude.
	cloudbox_on	Flag to activate the cloud box.
	cloudbox_limits	Index limits of the cloud box.
	outside_cloudbox	Boolean to flag if the propagation path is (expected to be) outside the cloudbox. Ordinary clerar sky calculations are selected by the value 1. The value 0 means tracking of a propagation path inside the cloudbox. The path is then tracked to the cloudbox boundary.
	rte_pos	The position of the sensor.
	rte_los	The line-of-sight of the sensor.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 5141 of file ppath.cc.

References abs, ANGTOL, cart2poslos(), Ppath::constant, dx, GridPos::fd, Ppath::geom_tan_pos, geometrical_ppc(), geompath_lat_at_za(), geompath_r_at_lat(), geompath_tanpos_3d(), geompath_za_at_r(), Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos(), gridpos2gridrange(), gridpos_check_fd(), GridPos::idx, interp(), interpweights(), is_los_downwards(), joker, Ppath::los, max, min, Array< base >::nelem(), ConstVectorView::nelem(), out1, out2, plevel_angletilt(), plevel_crossing_2d(), plevel_crossing_3d(), plevel_slope_2d(), plevel_slope_3d(), Ppath::pos, poslos2cart(), ppath_init_structure(), ppath_set_background(), Vector::resize(), rsurf_at_latlon(), RTOL, Ppath::z, z_at_lat_2d(), and z_at_latlon().

Referenced by mcPathTraceGeneral(), mcPathTraceIPA(), and ppath_calc().

void ppath_step_geom_1d	(	Ppath &	ppath,
		ConstVectorView	p_grid,
		ConstVectorView	z_field,
		const double &	r_geoid,
		const double &	z_surface,
		const double &	lmax
	)

ppath_step_geom_1d

Calculates 1D geometrical propagation path steps.

This is the core function to determine 1D propagation path steps by pure geometrical calculations. Path points are included for crossings with the grids, tangent points and points of surface intersections. In addition, points are included in the propgation path to ensure that the distance along the path between the points does not exceed the selected maximum length (lmax). If lmax is <= 0, this means that no length criterion shall be applied.

Note that the input variables are here compressed to only hold data for a 1D atmosphere. For example, z_field is z_field(:,0,0).

For more information read the chapter on propagation paths in AUG.

Parameters:

	ppath	Output: A Ppath structure.
	p_grid	Pressure grid.
	z_field	Geometrical altitudes corresponding to p_grid.
	r_geoid	Geoid radius.
	z_surface	Surface altitude.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2002-05-20

Definition at line 3674 of file ppath.cc.

References Ppath::constant, Ppath::dim, do_gridrange_1d(), geometrical_ppc(), Ppath::np, out3, ppath_append(), ppath_copy(), ppath_end_1d(), ppath_init_structure(), ppath_start_1d(), and ppath_step_geom_1d().

Referenced by ppath_step_geom_1d(), and ppath_stepGeometric().

void ppath_step_geom_2d	(	Ppath &	ppath,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstMatrixView	z_field,
		ConstVectorView	r_geoid,
		ConstVectorView	z_surface,
		const double &	lmax
	)

ppath_step_geom_2d

Calculates 2D geometrical propagation path steps.

Works as the same function for 1D despite that some input arguments are of different type.

Parameters:

	ppath	Output: A Ppath structure.
	p_grid	Pressure grid.
	lat_grid	Latitude grid.
	z_field	Geometrical altitudes
	r_geoid	Geoid radii.
	z_surface	Surface altitudes.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 3766 of file ppath.cc.

References Ppath::constant, Ppath::dim, do_gridcell_2d(), geometrical_ppc(), Ppath::np, out3, ppath_append(), ppath_copy(), ppath_end_2d(), ppath_init_structure(), ppath_start_2d(), and ppath_step_geom_2d().

Referenced by ppath_step_geom_2d(), and ppath_stepGeometric().

void ppath_step_geom_3d	(	Ppath &	ppath,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstTensor3View	z_field,
		ConstMatrixView	r_geoid,
		ConstMatrixView	z_surface,
		const double &	lmax
	)

ppath_step_geom_3d

Calculates 3D geometrical propagation path steps.

Works as the same function for 1D despite that some input arguments are of different type.

Parameters:

	ppath	Output: A Ppath structure.
	p_grid	Pressure grid.
	lat_grid	Latitude grid.
	lon_grid	Longitude grid.
	z_field	Geometrical altitudes
	r_geoid	Geoid radii.
	z_surface	Surface altitudes.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 3863 of file ppath.cc.

References Ppath::constant, Ppath::dim, do_gridcell_3d(), geometrical_ppc(), Ppath::np, out3, ppath_append(), ppath_copy(), ppath_end_3d(), ppath_init_structure(), ppath_start_3d(), and ppath_step_geom_3d().

Referenced by mcPathTrace(), mcPathTraceGeneral(), ppath_step_geom_3d(), and ppath_stepGeometric().

void ppath_step_refr_1d	(	Workspace &	ws,
		Ppath &	ppath,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		ConstVectorView	p_grid,
		ConstVectorView	z_field,
		ConstVectorView	t_field,
		ConstMatrixView	vmr_field,
		const double &	r_geoid,
		const double &	z_surface,
		const String &	rtrace_method,
		const double &	lraytrace,
		const double &	lmax
	)

ppath_step_refr_1d

Calculates 1D propagation path steps including effects of refraction.

This function works as the function *ppath_step_geom_1d* but considers also refraction. The upper length of the ray tracing steps is set by the argument *lraytrace*. This argument controls only the internal calculations. The maximum distance between the path points is still determined by *lmax*.

Parameters:

	ws	Current Workspace
	ppath	Out: A Ppath structure.
	rte_pressure	Out: The WSV with the same name.
	rte_temperature	Out: The WSV with the same name.
	rte_vmr_list	Out: The WSV with the same name.
	refr_index	Out: The WSV with the same name.
	refr_index_agenda	The WSV with the same name.
	p_grid	Pressure grid.
	z_field	Geometrical altitudes corresponding to p_grid.
	t_field	Temperatures corresponding to p_grid.
	vmr_field	VMR values corresponding to p_grid.
	r_geoid	Geoid radius.
	z_surface	Surface altitude.
	rtrace_method	String giving which ray tracing method to use. See the function for options.
	lraytrace	Maximum allowed length for ray tracing steps.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2002-11-26

Definition at line 4632 of file ppath.cc.

References Ppath::constant, Ppath::dim, from_raytracingarrays_to_ppath_vectors_1d_and_2d(), get_refr_index_1d(), ConstMatrixView::ncols(), ConstVectorView::nelem(), Ppath::np, out3, ppath_append(), ppath_copy(), ppath_end_1d(), ppath_init_structure(), ppath_start_1d(), ppath_step_refr_1d(), raytrace_1d_linear_euler(), and refraction_ppc().

Referenced by ppath_step_refr_1d(), and ppath_stepRefractionEuler().

void ppath_step_refr_2d	(	Workspace &	ws,
		Ppath &	ppath,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstMatrixView	z_field,
		ConstMatrixView	t_field,
		ConstTensor3View	vmr_field,
		ConstVectorView	r_geoid,
		ConstVectorView	z_surface,
		const String &	rtrace_method,
		const double &	lraytrace,
		const double &	lmax
	)

ppath_step_refr_2d

Calculates 2D propagation path steps, with refraction, using a simple and fast ray tracing scheme.

Works as the same function for 1D despite that some input arguments are of different type.

Parameters:

	ws	Current Workspace
	ppath	Out: A Ppath structure.
	rte_pressure	Out: The WSV with the same name.
	rte_temperature	Out: The WSV with the same name.
	rte_vmr_list	Out: The WSV with the same name.
	refr_index	Out: The WSV with the same name.
	refr_index_agenda	The WSV with the same name.
	p_grid	Pressure grid.
	lat_grid	Latitude grid.
	z_field	Geometrical altitudes.
	t_field	Atmospheric temperatures.
	vmr_field	VMR values.
	r_geoid	Geoid radii.
	z_surface	Surface altitudes.
	rtrace_method	String giving which ray tracing method to use. See the function for options.
	lraytrace	Maximum allowed length for ray tracing steps.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2002-12-02

Definition at line 4793 of file ppath.cc.

References Ppath::dim, from_raytracingarrays_to_ppath_vectors_1d_and_2d(), ConstTensor3View::ncols(), ConstMatrixView::ncols(), ConstVectorView::nelem(), Ppath::np, ConstTensor3View::nrows(), ConstMatrixView::nrows(), out3, ppath_append(), ppath_copy(), ppath_end_2d(), ppath_init_structure(), ppath_start_2d(), ppath_step_refr_2d(), and raytrace_2d_linear_euler().

Referenced by ppath_step_refr_2d(), and ppath_stepRefractionEuler().

void ppath_step_refr_3d	(	Workspace &	ws,
		Ppath &	ppath,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstTensor3View	z_field,
		ConstTensor3View	t_field,
		ConstTensor4View	vmr_field,
		ConstMatrixView	r_geoid,
		ConstMatrixView	z_surface,
		const String &	rtrace_method,
		const double &	lraytrace,
		const double &	lmax
	)

ppath_step_refr_3d

Calculates 3D propagation path steps, with refraction, using a simple and fast ray tracing scheme.

Works as the same function for 1D despite that some input arguments are of different type.

Parameters:

	ws	Current Workspace
	ppath	Out: A Ppath structure.
	rte_pressure	Out: The WSV with the same name.
	rte_temperature	Out: The WSV with the same name.
	rte_vmr_list	Out: The WSV with the same name.
	refr_index	Out: The WSV with the same name.
	refr_index_agenda	The WSV with the same name.
	p_grid	Pressure grid.
	lat_grid	Latitude grid.
	lon_grid	Longitude grid.
	z_field	Geometrical altitudes.
	t_field	Atmospheric temperatures.
	vmr_field	VMR values.
	r_geoid	Geoid radii.
	z_surface	Surface altitudes.
	rtrace_method	String giving which ray tracing method to use. See the function for options.
	lraytrace	Maximum allowed length for ray tracing steps.
	lmax	Maximum allowed length between the path points.

Author:: Patrick Eriksson

Date:: 2003-01-08

Definition at line 4947 of file ppath.cc.

References Ppath::dim, from_raytracingarrays_to_ppath_vectors_3d(), ConstTensor4View::ncols(), ConstTensor3View::ncols(), ConstVectorView::nelem(), Ppath::np, ConstTensor4View::npages(), ConstTensor3View::npages(), ConstTensor4View::nrows(), ConstTensor3View::nrows(), out3, ppath_append(), ppath_copy(), ppath_end_3d(), ppath_init_structure(), ppath_start_3d(), ppath_step_refr_3d(), and raytrace_3d_linear_euler().

Referenced by ppath_step_refr_3d(), and ppath_stepRefractionEuler().

Index ppath_what_background ( const Ppath & ppath )

ppath_what_background

Returns the case number for the radiative background.

See further the function *ppath_set_background*.

Returns:: The case number.

Parameters:

ppath

A Ppath structure.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 2329 of file ppath.cc.

References Ppath::background.

Referenced by cloud_ppath_update1D(), cloud_ppath_update1D_noseq(), Cloudbox_ppathCalc(), get_radiative_background(), iwp_cloud_opt_pathCalc(), mcPathTraceGeneral(), ppath_append(), and ppath_calc().

void raytrace_1d_linear_euler	(	Workspace &	ws,
		Array< double > &	r_array,
		Array< double > &	lat_array,
		Array< double > &	za_array,
		Array< double > &	l_array,
		Index &	endface,
		Index &	tanpoint,
		double	r,
		double	lat,
		double	za,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		const double &	ppc,
		const double &	lraytrace,
		const double &	r1,
		const double &	r3,
		const double &	r_surface,
		const double &	r_geoid,
		ConstVectorView	p_grid,
		ConstVectorView	z_field,
		ConstVectorView	t_field,
		ConstMatrixView	vmr_field
	)

raytrace_1d_linear_euler

Performs ray tracing for 1D with linear Euler steps.

A geometrical step with length of *lraytrace* is taken from each point. The zenith angle for the end point of that step is calculated exactly by the expression c = r*n*sin(theta), and a new step is taken. The length of the last ray tracing step to reach the end radius is adopted to the distance to the end radius.

The refractive index is assumed to vary linearly between the pressure levels.

As the ray tracing is performed from the last end point, the found path will not be symmetric around the tangent point.

For more information read the chapter on propagation paths in AUG. The algorithm used is described in that part of AUG.

The array variables *r_array*, *lat_array* and *za_array* shall include the start position when calling the function. The length of *l_array* will be one smaller than the length of the other arrays.

Parameters:

	ws	Current Workspace
	r_array	Out: Radius of ray tracing points.
	lat_array	Out: Latitude of ray tracing points.
	za_array	Out: LOS zenith angle at ray tracing points.
	l_array	Out: Distance along the path between ray tracing points.
	endface	FIXME: Add documentation.
	tanpoint	FIXME: Add documentation.
	r	Start radius for ray tracing.
	lat	Start latitude for ray tracing.
	za	Start zenith angle for ray tracing.
	rte_pressure	FIXME: Add documentation.
	rte_temperature	FIXME: Add documentation.
	rte_vmr_list	FIXME: Add documentation.
	refr_index	Refractive index.
	refr_index_agenda	FIXME: Add documentation.
	ppc	Propagation path constant.
	lraytrace	Maximum allowed length for ray tracing steps.
	r1	Radius of lower pressure level.
	r3	Radius of upper pressure level (r3 > r1).
	r_surface	Radius of the surface.
	r_geoid	Geoid radii.
	p_grid	Pressure grid.
	z_field	Geometrical altitudes corresponding to p_grid.
	t_field	Temperatures corresponding to p_grid.
	vmr_field	VMR values corresponding to p_grid.

Author:: Patrick Eriksson

Date:: 2002-12-02

Definition at line 4008 of file ppath.cc.

References abs, do_gridrange_1d(), geometrical_ppc(), geompath_l_at_r(), geompath_r_at_l(), geompath_za_at_r(), get_refr_index_1d(), ConstVectorView::nelem(), and RAD2DEG.

Referenced by ppath_step_refr_1d().

void raytrace_2d_linear_euler	(	Workspace &	ws,
		Array< double > &	r_array,
		Array< double > &	lat_array,
		Array< double > &	za_array,
		Array< double > &	l_array,
		Index &	endface,
		Index &	tanpoint,
		double	r,
		double	lat,
		double	za,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		const double &	lraytrace,
		const double &	lat1,
		const double &	lat3,
		const double &	r1a,
		const double &	r3a,
		const double &	r3b,
		const double &	r1b,
		const double &	rsurface1,
		const double &	rsurface3,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	r_geoid,
		ConstMatrixView	z_field,
		ConstMatrixView	t_field,
		ConstTensor3View	vmr_field
	)

raytrace_2d_linear_euler

Performs ray tracing for 2D with linear Euler steps.

A geometrical step with length of *lraytrace* is taken from each point. The zenith angle for the end point of that step is calculated considering the gradient of the refractive index. The length of the last ray tracing step to reach the end radius is adopted to the distance to the end radius.

The refractive index is assumed to vary linearly along the pressure levels and the latitude grid points.

For more information read the chapter on propagation paths in AUG. The algorithm used is described in that part of AUG.

The array variables *r_array*, *lat_array* and *za_array* shall include the start position when calling the function. The length of *l_array* will be one smaller than the length of the other arrays.

Parameters:

	ws	Current Workspace
	r_array	Out: Radius of ray tracing points.
	lat_array	Out: Latitude of ray tracing points.
	za_array	Out: LOS zenith angle at ray tracing points.
	l_array	Out: Distance along the path between ray tracing points.
	endface	Out: Number coding of exit face.
	tanpoint	Out: True if last point is a tangent point.
	r	Out: Start radius for ray tracing.
	lat	Out: Start latitude for ray tracing.
	za	Out: Start zenith angle for ray tracing.
	rte_pressure	Out: The WSV with the same name.
	rte_temperature	Out: The WSV with the same name.
	rte_vmr_list	Out: The WSV with the same name.
	refr_index	Out: The WSV with the same name.
	refr_index_agenda	The WSV with the same name.
	lraytrace	Maximum allowed length for ray tracing steps.
	lat1	Latitude of left end face of the grid cell.
	lat3	Latitude of right end face of the grid cell.
	r1a	Radius of lower-left corner of the grid cell.
	r3a	Radius of lower-right corner of the grid cell.
	r3b	Radius of upper-right corner of the grid cell.
	r1b	Radius of upper-left corner of the grid cell.
	rsurface1	Radius for the surface at lat1.
	rsurface3	Radius for the surface at lat3.
	p_grid	The WSV with the same name.
	lat_grid	The WSV with the same name.
	r_geoid	The WSV with the same name.
	z_field	The WSV with the same name.
	t_field	The WSV with the same name.
	vmr_field	The WSV with the same name.

Author:: Patrick Eriksson

Date:: 2002-12-02

Definition at line 4175 of file ppath.cc.

References abs, DEG2RAD, do_gridcell_2d(), geometrical_ppc(), geompath_l_at_r(), geompath_r_at_l(), ConstVectorView::nelem(), RAD2DEG, refr_gradients_2d(), and sign().

Referenced by ppath_step_refr_2d().

void raytrace_3d_linear_euler	(	Workspace &	ws,
		Array< double > &	r_array,
		Array< double > &	lat_array,
		Array< double > &	lon_array,
		Array< double > &	za_array,
		Array< double > &	aa_array,
		Array< double > &	l_array,
		Index &	endface,
		Index &	tanpoint,
		double	r,
		double	lat,
		double	lon,
		double	za,
		double	aa,
		Numeric &	rte_pressure,
		Numeric &	rte_temperature,
		Vector &	rte_vmr_list,
		Numeric &	refr_index,
		const Agenda &	refr_index_agenda,
		const double &	lraytrace,
		const double &	lat1,
		const double &	lat3,
		const double &	lon5,
		const double &	lon6,
		const double &	r15a,
		const double &	r35a,
		const double &	r36a,
		const double &	r16a,
		const double &	r15b,
		const double &	r35b,
		const double &	r36b,
		const double &	r16b,
		const double &	rsurface15,
		const double &	rsurface35,
		const double &	rsurface36,
		const double &	rsurface16,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		ConstMatrixView	r_geoid,
		ConstTensor3View	z_field,
		ConstTensor3View	t_field,
		ConstTensor4View	vmr_field
	)

raytrace_3d_linear_euler

Performs ray tracing for 3D with linear Euler steps.

A geometrical step with length of *lraytrace* is taken from each point. The zenith angle for the end point of that step is calculated considering the gradient of the refractive index. The length of the last ray tracing step to reach the end radius is adopted to the distance to the end radius.

The refractive index is assumed to vary linearly along the pressure levels and the latitude grid points.

For more information read the chapter on propagation paths in AUG. The algorithm used is described in that part of AUG.

The array variables *r_array*, *lat_array*, *lon_array*, *za_array* and *aa_array* shall include the start position when calling the function. The length of *l_array* will be one smaller than the length of the other arrays.

Parameters:

	ws	Current Workspace
	r_array	Out: Radius of ray tracing points.
	lat_array	Out: Latitude of ray tracing points.
	lon_array	Out: Longitude of ray tracing points.
	za_array	Out: LOS zenith angle at ray tracing points.
	aa_array	Out: LOS azimuth angle at ray tracing points.
	l_array	Out: Distance along the path between ray tracing points.
	endface	Out: Number coding of exit face.
	tanpoint	Out: True if last point is a tangent point.
	r	Out: Start radius for ray tracing.
	lat	Out: Start latitude for ray tracing.
	lon	Out: Start longitude for ray tracing.
	za	Out: Start zenith angle for ray tracing.
	aa	Out: Start azimuth angle for ray tracing.
	rte_pressure	Out: The WSV with the same name.
	rte_temperature	Out: The WSV with the same name.
	rte_vmr_list	Out: The WSV with the same name.
	refr_index	Out: The WSV with the same name.
	refr_index_agenda	The WSV with the same name.
	lraytrace	Maximum allowed length for ray tracing steps.
	lat1	Latitude of left end face of the grid cell.
	lat3	Latitude of right end face of the grid cell.
	lon5	Lower longitude of the grid cell.
	lon6	Upper longitude of the grid cell.
	r15a	Radius of corner: lower p-level,lat1 and lon5.
	r35a	Radius of corner: lower p-level,lat3 and lon5.
	r36a	Radius of corner: lower p-level,lat3 and lon6.
	r16a	Radius of corner: lower p-level,lat1 and lon6.
	r15b	Radius of corner: upper p-level,lat1 and lon5.
	r35b	Radius of corner: upper p-level,lat3 and lon5.
	r36b	Radius of corner: upper p-level,lat3 and lon6.
	r16b	Radius of corner: upper p-level,lat1 and lon6.
	rsurface15	Radius for the surface at lat1 and lon5.
	rsurface35	Radius for the surface at lat3 and lon5.
	rsurface36	Radius for the surface at lat3 and lon6.
	rsurface16	Radius for the surface at lat1 and lon6.
	p_grid	The WSV with the same name.
	lat_grid	The WSV with the same name.
	lon_grid	The WSV with the same name.
	r_geoid	The WSV with the same name.
	z_field	The WSV with the same name.
	t_field	The WSV with the same name.
	vmr_field	The WSV with the same name.

Author:: Patrick Eriksson

Date:: 2003-01-18

Definition at line 4382 of file ppath.cc.

References abs, ANGTOL, cart2poslos(), DEG2RAD, do_gridcell_3d(), dx, geometrical_ppc(), geompath_za_at_r(), ConstVectorView::nelem(), poslos2cart(), RAD2DEG, refr_gradients_3d(), and resolve_lon().

Referenced by ppath_step_refr_3d().

double refraction_ppc	(	const double &	r,
		const double &	za,
		const double &	refr_index
	)

refraction_ppc

Calculates the propagation path constant for cases with refraction.

Both positive and negative zenith angles are handled.

Returns:: Path constant.

Parameters:

	r	Radius.
	za	LOS Zenith angle.
	refr_index	Refractive index.

Author:: Patrick Eriksson

Date:: 2002-05-17

Definition at line 2794 of file ppath.cc.

References abs, and DEG2RAD.

Referenced by ppath_step_refr_1d().

void resolve_lon	(	float &	lon,
		const double &	lon5,
		const double &	lon6
	)

Definition at line 750 of file ppath.cc.

References abs.

void resolve_lon	(	double &	lon,
		const double &	lon5,
		const double &	lon6
	)

resolve_lon

Resolves which longitude angle that shall be used.

Longitudes are allowed to vary between -360 and 360 degress, while the inverse trigonomtric functions returns values between -180 and 180. This function determines if the longitude shall be shifted -360 or +360 to fit the longitudes set by the user.

The argument *lon* as input is a value calculated by some inverse trigonometric function. The arguments *lon5* and *lon6* are the lower and upper limit for the probable range for *lon*. The longitude lon* will be shifted with -360 or +360 degrees if such a shift better fit *lon5* and *lon6*. No error is given if it is not possible to obtain a value between *lon5* and *lon6*.

The function exists both in a float and double version to avoid unnecessary copying of data for Numeric=float.

Parameters:

	lon	In/Out: Longitude, possible shifted when returned.
	lon5	Lower limit of probable range for lon.
	lon6	Upper limit of probable range for lon

Author:: Patrick Eriksson

Date:: 2003-01-05

Definition at line 730 of file ppath.cc.

References abs.

Referenced by do_gridcell_3d(), and raytrace_3d_linear_euler().

double rsurf_at_latlon	(	const double &	lat1,
		const double &	lat3,
		const double &	lon5,
		const double &	lon6,
		const double &	r15,
		const double &	r35,
		const double &	r36,
		const double &	r16,
		const double &	lat,
		const double &	lon
	)

rsurf_at_latlon

Determines the radius of a pressure level or the surface given the radius at the corners of a 3D grid cell.

Returns:: Radius at the given latitude and longitude.

Parameters:

	lat1	Lower latitude of grid cell.
	lat3	Upper latitude of grid cell.
	lon5	Lower longitude of grid cell.
	lon6	Upper longitude of grid cell.
	r15	Radius at crossing of lat1 and lon5.
	r35	Radius at crossing of lat3 and lon5.
	r36	Radius at crossing of lat3 and lon6.
	r16	Radius at crossing of lat1 and lon6.
	lat	Latitude for which radius shall be determined.
	lon	Longitude for which radius shall be determined.

Author:: Patrick Eriksson

Date:: 2002-12-30

Definition at line 915 of file ppath.cc.

Referenced by do_gridcell_3d(), plevel_slope_3d(), ppath_fill_3d(), ppath_start_3d(), and ppath_start_stepping().

void sph2cart	(	double &	x,
		double &	y,
		double &	z,
		const double &	r,
		const double &	lat,
		const double &	lon
	)

sph2cart

Conversion from spherical to cartesian coordinates.

The cartesian coordinate system is defined such as the x-axis goes along lat=0 and lon=0, y-axis goes along lat=90, and the z-axis goes along lat=0 and lon=90.

Parameters:

	x	Out: x position.
	y	Out: y position.
	z	Out: z position.
	r	Radius.
	lat	Latitude.
	lon	Longitude.

Author:: Patrick Eriksson

Date:: 2002-12-17

Definition at line 485 of file ppath.cc.

References abs, and DEG2RAD.

Referenced by poslos2cart().

double za_geom2other_point	(	const double &	r1,
		const double &	lat1,
		const double &	r2,
		const double &	lat2
	)

za_geom2other_point

Calculates the zenith angle for the geometrical propagation path between two specified points.

The returned zenith angle is valid for point 1. That is, the propagation path goes from point 1 to point 2.

Returns:: Zenith angle.

Parameters:

	r1	Radius for point 1.
	lat1	Latiytude for point 1.
	r2	Radius for point 2.
	lat2	Latitude for point 2.

Author:: Patrick Eriksson

Date:: 2002-07-03

Definition at line 428 of file ppath.cc.

References abs, DEG2RAD, and RAD2DEG.

Variable Documentation

const double ANGTOL = 1e-4

Definition at line 98 of file ppath.cc.

Referenced by cart2poslos(), do_gridcell_2d(), do_gridcell_3d(), geompath_from_r1_to_r2(), pha_mat_labCalc(), plevel_crossing_2d(), plevel_crossing_3d(), ppath_start_stepping(), and raytrace_3d_linear_euler().

const Numeric DEG2RAD

const double LATLONTOL = 1e-6

Definition at line 84 of file ppath.cc.

Referenced by do_gridcell_3d().

const double POLELAT = 89.9999

Definition at line 105 of file ppath.cc.

Referenced by cart2poslos(), and poslos2cart().

const Numeric RAD2DEG

const double RTOL = 10

Definition at line 75 of file ppath.cc.

Referenced by do_gridcell_2d(), do_gridcell_3d(), do_gridrange_1d(), geompath_l_at_r(), geompath_za_at_r(), ppath_start_3d(), and ppath_start_stepping().


Functions
double	geometrical_ppc (const double &r, const double &za)
	geometrical_ppc
double	geompath_za_at_r (const double &ppc, const double &a_za, const double &r)
	geompath_za_at_r
double	geompath_r_at_za (const double &ppc, const double &za)
	geompath_r_at_za
double	geompath_lat_at_za (const double &za0, const double &lat0, const double &za)
	geompath_lat_at_za
double	geompath_l_at_r (const double &ppc, const double &r)
	geompath_l_at_r
double	geompath_r_at_l (const double &ppc, const double &l)
	geompath_r_at_l
double	geompath_r_at_lat (const double &ppc, const double &lat0, const double &za0, const double &lat)
	geompath_r_at_lat
void	geompath_from_r1_to_r2 (Vector &r, Vector &lat, Vector &za, double &lstep, const double &ppc, const double &r1, const double &lat1, const double &za1, const double &r2, const double &lmax)
	geompath_from_r1_to_r2
double	za_geom2other_point (const double &r1, const double &lat1, const double &r2, const double &lat2)
	za_geom2other_point
void	sph2cart (double &x, double &y, double &z, const double &r, const double &lat, const double &lon)
	sph2cart
void	cart2sph (double &r, double &lat, double &lon, const double &x, const double &y, const double &z)
	cart2sph
void	poslos2cart (double &x, double &y, double &z, double &dx, double &dy, double &dz, const double &r, const double &lat, const double &lon, const double &za, const double &aa)
	poslos2cart
void	cart2poslos (double &r, double &lat, double &lon, double &za, double &aa, const double &x, const double &y, const double &z, const double &dx, const double &dy, const double &dz)
	cart2poslos
void	resolve_lon (double &lon, const double &lon5, const double &lon6)
	resolve_lon
void	resolve_lon (float &lon, const double &lon5, const double &lon6)
void	geompath_tanpos_3d (double &r_tan, double &lat_tan, double &lon_tan, double &l_tan, const double &r, const double &lat, const double &lon, const double &za, const double &aa, const double &ppc)
	geompath_tanpos_3d
double	plevel_slope_2d (ConstVectorView lat_grid, ConstVectorView r_geoid, ConstVectorView z_surf, const GridPos &gp, const double &za)
	plevel_slope_2d
double	plevel_slope_2d (const double &lat1, const double &lat2, const double &r1, const double &r2)
	plevel_slope_2d
double	rsurf_at_latlon (const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15, const double &r35, const double &r36, const double &r16, const double &lat, const double &lon)
	rsurf_at_latlon
double	plevel_slope_3d (const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15, const double &r35, const double &r36, const double &r16, const double &lat, const double &lon, const double &aa)
	plevel_slope_3d
double	plevel_slope_3d (ConstVectorView lat_grid, ConstVectorView lon_grid, ConstMatrixView r_geoid, ConstMatrixView z_surf, const GridPos &gp_lat, const GridPos &gp_lon, const double &aa)
	plevel_slope_3d
double	plevel_angletilt (const double &r, const double &c)
	plevel_angletilt
bool	is_los_downwards (const double &za, const double &tilt)
	is_los_downwards
double	plevel_crossing_2d (const double &rp, const double &za, const double &r0, double c)
	plevel_crossing_2d
void	plevel_crossing_3d (double &r, double &lat, double &lon, double &l, const double r_surf, const double r_start, const double lat_start, const double lon_start, const double za_start, const double &x, const double &y, const double &z, const double &dx, const double &dy, const double &dz)
	plevel_crossing_3d
void	do_gridrange_1d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start, const double &za_start, const double &ppc, const double &lmax, const double &ra, const double &rb, const double &rsurface)
	do_gridrange_1d
void	do_gridcell_2d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start, const double &za_start, const double &ppc, const double &lmax, const double &lat1, const double &lat3, const double &r1a, const double &r3a, const double &r3b, const double &r1b, const double &rsurface1, const double &rsurface3)
	do_gridcell_2d
void	do_gridcell_3d (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, Index &endface, Index &tanpoint, const double &r_start0, const double &lat_start0, const double &lon_start0, const double &za_start, const double &aa_start, const double &ppc, const double &lmax, const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15a, const double &r35a, const double &r36a, const double &r16a, const double &r15b, const double &r35b, const double &r36b, const double &r16b, const double &rsurface15, const double &rsurface35, const double &rsurface36, const double &rsurface16)
	do_gridcell_3d
void	ppath_init_structure (Ppath &ppath, const Index &atmosphere_dim, const Index &np)
	ppath_init_structure
void	ppath_set_background (Ppath &ppath, const Index &case_nr)
	ppath_set_background
Index	ppath_what_background (const Ppath &ppath)
	ppath_what_background
void	ppath_copy (Ppath &ppath1, const Ppath &ppath2)
	ppath_copy
void	ppath_append (Ppath &ppath1, const Ppath &ppath2)
	ppath_append
void	ppath_fill_1d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView za, ConstVectorView lstep, const double &r_geoid, ConstVectorView z_field, const Index &ip)
	ppath_fill_1d
void	ppath_fill_2d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView za, const double &lstep, ConstVectorView r_geoid, ConstMatrixView z_field, ConstVectorView lat_grid, const Index &ip, const Index &ilat)
	ppath_fill_2d
void	ppath_fill_3d (Ppath &ppath, ConstVectorView r, ConstVectorView lat, ConstVectorView lon, ConstVectorView za, ConstVectorView aa, const double &lstep, ConstMatrixView r_geoid, ConstTensor3View z_field, ConstVectorView lat_grid, ConstVectorView lon_grid, const Index &ip, const Index &ilat, const Index &ilon)
	ppath_fill_3d
double	refraction_ppc (const double &r, const double &za, const double &refr_index)
	refraction_ppc
void	ppath_start_1d (double &r_start, double &lat_start, double &za_start, Index &ip, const Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView DEBUG_ONLY(z_field), const double &DEBUG_ONLY(r_geoid), const double &DEBUG_ONLY(z_surface))
	ppath_start_1d
void	ppath_end_1d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView za_v, const double &lstep, ConstVectorView z_field, const double &r_geoid, const Index &ip, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)
	ppath_end_1d
void	ppath_start_2d (double &r_start, double &lat_start, double &za_start, Index &ip, Index &ilat, double &lat1, double &lat3, double &r1a, double &r3a, double &r3b, double &r1b, double &rsurface1, double &rsurface3, const Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, ConstVectorView z_surface)
	ppath_start_2d
void	ppath_end_2d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView za_v, const double &lstep, ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, const Index &ip, const Index &ilat, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)
	ppath_end_2d
void	ppath_start_3d (double &r_start, double &lat_start, double &lon_start, double &za_start, double &aa_start, Index &ip, Index &ilat, Index &ilon, double &lat1, double &lat3, double &lon5, double &lon6, double &r15a, double &r35a, double &r36a, double &r16a, double &r15b, double &r35b, double &r36b, double &r16b, double &rsurface15, double &rsurface35, double &rsurface36, double &rsurface16, Ppath &ppath, ConstVectorView DEBUG_ONLY(p_grid), ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface)
	ppath_start_3d
void	ppath_end_3d (Ppath &ppath, ConstVectorView r_v, ConstVectorView lat_v, ConstVectorView lon_v, ConstVectorView za_v, ConstVectorView aa_v, const double &lstep, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, const Index &ip, const Index &ilat, const Index &ilon, const Index &endface, const Index &tanpoint, const String &method, const Index &refraction, const double &ppc)
	ppath_end_3d
void	interpolate_raytracing_points (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, ConstVectorView r_rt, ConstVectorView lat_rt, ConstVectorView lon_rt, ConstVectorView za_rt, ConstVectorView aa_rt, ConstVectorView l_rt, const double &lmax)
	interpolate_raytracing_points
void	from_raytracingarrays_to_ppath_vectors_1d_and_2d (Vector &r_v, Vector &lat_v, Vector &za_v, double &lstep, const Array< double > &r_array, const Array< double > &lat_array, const Array< double > &za_array, const Array< double > &l_array, const Index &reversed, const double &lmax)
	from_raytracingarrays_to_ppath_vectors_1d_and_2d
void	from_raytracingarrays_to_ppath_vectors_3d (Vector &r_v, Vector &lat_v, Vector &lon_v, Vector &za_v, Vector &aa_v, double &lstep, const Array< double > &r_array, const Array< double > &lat_array, const Array< double > &lon_array, const Array< double > &za_array, const Array< double > &aa_array, const Array< double > &l_array, const double &lmax)
	from_raytracingarrays_to_ppath_vectors_3d
void	ppath_step_geom_1d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView z_field, const double &r_geoid, const double &z_surface, const double &lmax)
	ppath_step_geom_1d
void	ppath_step_geom_2d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView lat_grid, ConstMatrixView z_field, ConstVectorView r_geoid, ConstVectorView z_surface, const double &lmax)
	ppath_step_geom_2d
void	ppath_step_geom_3d (Ppath &ppath, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const double &lmax)
	ppath_step_geom_3d
void	raytrace_1d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &za_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double za, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &ppc, const double &lraytrace, const double &r1, const double &r3, const double &r_surface, const double &r_geoid, ConstVectorView p_grid, ConstVectorView z_field, ConstVectorView t_field, ConstMatrixView vmr_field)
	raytrace_1d_linear_euler
void	raytrace_2d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &za_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double za, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &lraytrace, const double &lat1, const double &lat3, const double &r1a, const double &r3a, const double &r3b, const double &r1b, const double &rsurface1, const double &rsurface3, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView r_geoid, ConstMatrixView z_field, ConstMatrixView t_field, ConstTensor3View vmr_field)
	raytrace_2d_linear_euler
void	raytrace_3d_linear_euler (Workspace &ws, Array< double > &r_array, Array< double > &lat_array, Array< double > &lon_array, Array< double > &za_array, Array< double > &aa_array, Array< double > &l_array, Index &endface, Index &tanpoint, double r, double lat, double lon, double za, double aa, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, const double &lraytrace, const double &lat1, const double &lat3, const double &lon5, const double &lon6, const double &r15a, const double &r35a, const double &r36a, const double &r16a, const double &r15b, const double &r35b, const double &r36b, const double &r16b, const double &rsurface15, const double &rsurface35, const double &rsurface36, const double &rsurface16, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstMatrixView r_geoid, ConstTensor3View z_field, ConstTensor3View t_field, ConstTensor4View vmr_field)
	raytrace_3d_linear_euler
void	ppath_step_refr_1d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView z_field, ConstVectorView t_field, ConstMatrixView vmr_field, const double &r_geoid, const double &z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)
	ppath_step_refr_1d
void	ppath_step_refr_2d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView lat_grid, ConstMatrixView z_field, ConstMatrixView t_field, ConstTensor3View vmr_field, ConstVectorView r_geoid, ConstVectorView z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)
	ppath_step_refr_2d
void	ppath_step_refr_3d (Workspace &ws, Ppath &ppath, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Numeric &refr_index, const Agenda &refr_index_agenda, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstTensor3View t_field, ConstTensor4View vmr_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const String &rtrace_method, const double &lraytrace, const double &lmax)
	ppath_step_refr_3d
void	ppath_start_stepping (Ppath &ppath, const Index &atmosphere_dim, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, ConstTensor3View z_field, ConstMatrixView r_geoid, ConstMatrixView z_surface, const Index &cloudbox_on, const ArrayOfIndex &cloudbox_limits, const bool &outside_cloudbox, ConstVectorView rte_pos, ConstVectorView rte_los)
	ppath_start_stepping
void	ppath_calc (Workspace &ws, Ppath &ppath, const Agenda &ppath_step_agenda, const Index &atmosphere_dim, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Index &cloudbox_on, const ArrayOfIndex &cloudbox_limits, const Vector &rte_pos, const Vector &rte_los, const bool &outside_cloudbox)
	ppath_calc
Variables
const Numeric	DEG2RAD
const Numeric	RAD2DEG
const double	RTOL = 10
const double	LATLONTOL = 1e-6
const double	ANGTOL = 1e-4
const double	POLELAT = 89.9999
