constants.cc File Reference
This file contains global constants. More...

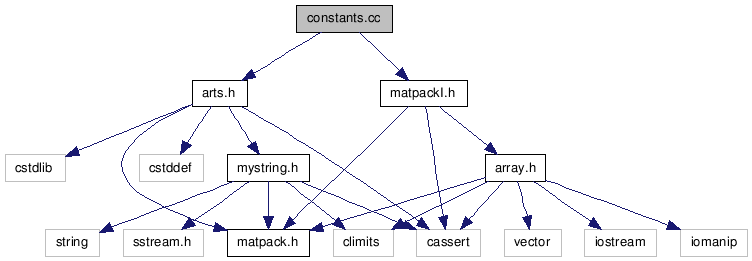

#include "arts.h"
#include "matpackI.h"
Go to the source code of this file.
Variables | |
| const Numeric | EARTH_RADIUS = 6.378e6 |
| Global constant, the radius of the Earth [m]. | |
| const Numeric | RAD2DEG = 57.29577951308232 |
| Global constant, conversion from radians to degrees. | |
| const Numeric | DEG2RAD = 0.01745329251994 |
| Global constant, conversion from degrees to radians. | |
| const Numeric | PLANCK_CONST = 6.626180e-34 |
| Global constant, the Planck constant [Js]. | |
| const Numeric | SPEED_OF_LIGHT = 2.99792458e8 |
| Global constant, spped of light in vaccum [m/s]. | |
| const Numeric | BOLTZMAN_CONST = 1.380662e-23 |
| Global constant, the Boltzmann constant [J/K]. | |
| const Numeric | AVOGADROS_NUMB = 6.0220450e26 |
| Global constant, the Avogadro's number [molec/kg]. | |
| const Numeric | ATOMIC_MASS_UNIT = 1.6606E-27 |
| Atomic mass unit, 12th of a C^12_6 atom. | |
| const Numeric | COSMIC_BG_TEMP = 2.735 |
| Global constant, Planck temperature for cosmic background radiation [K]. | |
| const Numeric | SUN_TEMP = 6000.0 |
| Global constant, Planck temperature for solar radiation [K]. | |
| const Numeric | EULER_NUMBER = 2.7182818284590452 |
| Global constant, e (Euler's number). | |
| const Numeric | LOG10_EULER_NUMBER = 0.43429448190325176 |
| Global constant, log10(Euler's number). | |
| const Numeric | NAT_LOG_TEN = 2.3025850929940459 |
| Global constant, ln(10). | |
| const Numeric | NAT_LOG_2 = 0.69314718055994 |
| Global constant, ln(2). | |
| const Numeric | SQRT_NAT_LOG_2 = 0.832554611 |
| Global constant, sqrt(ln(2)). | |
| const Numeric | PI = 3.14159265358979 |
| Global constant, pi. | |
| const Numeric | ATM2PA = 1.01325e5 |
| Global constant, converts atm to Pa. | |
| const Numeric | TORR2PA = 133.3227 |
| Global constant, converts torr to Pa. | |
| const Numeric | TEMP_0_C = 273.15 |
| Global constant, Temperature in Celsius of 0 Kelvin. | |
| const Numeric | PRES_STAND = 101300.25 |
| Global constant, Standard pressure in Pa. | |
| const Numeric | LOSCHMIDT_CONST = 2.686763E25 |
| Global constant, Loschmidt constant [m^-3]. | |
| const Numeric | EARTH_GRAV_CONST = 3.98601E14 |
| Global constant, Earth gravitational constant [m^3/s^2]. | |
| const Numeric | HZ2CM = 0.01 / SPEED_OF_LIGHT |
| Global constant, converts Hz to cm-1. | |
| const Index | GFIELD1_F_GRID = 0 |
| Global constant, Index of the frequency grid in GField1. | |
| const Index | GFIELD3_P_GRID = 0 |
| Global constant, Index of the pressure grid in GField3. | |
| const Index | GFIELD3_LAT_GRID = 1 |
| Global constant, Index of the latitude grid in GField3. | |
| const Index | GFIELD3_LON_GRID = 2 |
| Global constant, Index of the longitude grid in GField3. | |
| const Index | GFIELD4_FIELD_NAMES = 0 |
| Global constant, Index of the field names in GField4. | |
| const Index | GFIELD4_IA_GRID = 0 |
| Global constant, Index of incidence angles in GField4. | |
| const Index | GFIELD4_P_GRID = 1 |
| Global constant, Index of the pressure grid in GField4. | |
| const Index | GFIELD4_F_GRID = 1 |
| Global constant, Index of the frequency grid in GField4. | |
| const Index | GFIELD4_LAT_GRID = 2 |
| Global constant, Index of the latitude grid in GField4. | |
| const Index | GFIELD4_ZA_GRID = 2 |
| Global constant, Index of the zenith angle grid in GField4. | |
| const Index | GFIELD4_LON_GRID = 3 |
| Global constant, Index of the longitude grid in GField4. | |
| const Index | GFIELD4_AA_GRID = 3 |
| Global constant, Index of the azimuth angle grid in GField4. | |
| Joker | joker |
| Define the global joker objekt. | |
| const String | ABSSPECIES_MAINTAG = "Absorption species" |
| const String | POINTING_MAINTAG = "Sensor pointing" |
| const String | POLYFIT_MAINTAG = "Polynomial baseline fit" |
| const String | TEMPERATURE_MAINTAG = "Atmospheric temperatures" |
Detailed Description
This file contains global constants.You can use them anywhere by declaring them as in the following example:
extern const Numeric PI;
See for example the National Institute of Standards and Technology (NIST) home page for the values of specific constants.
- Date:
- 2000-09-14
Definition in file constants.cc.
Variable Documentation
| const String ABSSPECIES_MAINTAG = "Absorption species" |
Global constant, converts atm to Pa.
Multiply your value in atm by this constant to get the value in Pa.
- Date:
- 2000-06-17
Referenced by LineRecord::ReadFromHitran2004Stream(), and LineRecord::ReadFromHitranStream().
| const Numeric ATOMIC_MASS_UNIT = 1.6606E-27 |
Atomic mass unit, 12th of a C^12_6 atom.
- Date:
- 27.09.2000
| const Numeric AVOGADROS_NUMB = 6.0220450e26 |
| const Numeric BOLTZMAN_CONST = 1.380662e-23 |
Global constant, the Boltzmann constant [J/K].
- Date:
- 08.04.2000
Referenced by invplanck(), invrayjean(), lineshape_norm_VVH(), MCGeneral(), MCIPA(), number_density(), planck(), planck2(), ScatteringMonteCarlo(), xsec_continuum_tag(), and xsec_species().
| const Numeric COSMIC_BG_TEMP = 2.735 |
Global constant, Planck temperature for cosmic background radiation [K].
- Date:
- 08.04.2000
Referenced by MatrixCBR().
Global constant, conversion from degrees to radians.
Multiply your value in degrees by this constant to get the value in radians.
- Date:
- 08.04.2000
Referenced by AngIntegrate_trapezoid(), AngIntegrate_trapezoid_fixedstep(), AngIntegrate_trapezoid_fixedstep_opt(), AngIntegrate_trapezoid_fixedstep_opt2(), AngIntegrate_trapezoid_opt(), AngIntegrate_trapezoid_opti(), AngIntegrate_trapezoid_original(), cart2poslos(), fastem(), fresnel(), geometrical_ppc(), geompath_r_at_za(), interp_scat_angle_temperature(), interpolate_scat_angle(), magfield_nk(), main(), mcPathTraceIPA(), pha_mat_labCalc(), plevel_crossing_2d(), plevel_slope_3d(), poslos2cart(), r_geoidWGS84(), raytrace_2d_linear_euler(), raytrace_3d_linear_euler(), refr_gradients_2d(), refr_gradients_3d(), refraction_ppc(), sph2cart(), ybatchMetProfiles(), za_geom2other_point(), and ZaSatOccultation().
| const Numeric EARTH_GRAV_CONST = 3.98601E14 |
Global constant, Earth gravitational constant [m^3/s^2].
- Date:
- 2001-04-20
Referenced by ZaSatOccultation().
| const Numeric EARTH_RADIUS = 6.378e6 |
Global constant, the radius of the Earth [m].
- Date:
- 08.04.2000
Referenced by magfield_nk(), and r_geoidSpherical().
| const Numeric EULER_NUMBER = 2.7182818284590452 |
Global constant, e (Euler's number).
- Date:
- 08.11.2001
| const Index GFIELD1_F_GRID = 0 |
Global constant, Index of the frequency grid in GField1.
- Date:
- 2008-07-02
Referenced by mixer_matrix(), sensor_responseBackend(), sensor_responseMixer(), and spectrometer_matrix().
| const Index GFIELD3_LAT_GRID = 1 |
| const Index GFIELD3_LON_GRID = 2 |
| const Index GFIELD3_P_GRID = 0 |
| const Index GFIELD4_AA_GRID = 3 |
Global constant, Index of the azimuth angle grid in GField4.
- Date:
- 2008-07-01
Referenced by antenna1d_matrix(), and sensor_responseAntenna().
| const Index GFIELD4_F_GRID = 1 |
Global constant, Index of the frequency grid in GField4.
- Date:
- 2008-07-01
Referenced by antenna1d_matrix(), and sensor_responseAntenna().
| const Index GFIELD4_FIELD_NAMES = 0 |
Global constant, Index of the field names in GField4.
- Date:
- 2008-06-25
Referenced by abs_lookupSetupBatch(), antenna1d_matrix(), atm_fields_compactAddConstant(), atm_fields_compactFromMatrix(), AtmFieldsFromCompact(), and sensor_responseAntenna().
| const Index GFIELD4_IA_GRID = 0 |
| const Index GFIELD4_LAT_GRID = 2 |
Global constant, Index of the latitude grid in GField4.
- Date:
- 2008-06-25
Referenced by atm_fields_compactFromMatrix(), and AtmFieldsFromCompact().
| const Index GFIELD4_LON_GRID = 3 |
Global constant, Index of the longitude grid in GField4.
- Date:
- 2008-06-25
Referenced by atm_fields_compactFromMatrix(), and AtmFieldsFromCompact().
| const Index GFIELD4_P_GRID = 1 |
Global constant, Index of the pressure grid in GField4.
- Date:
- 2008-06-25
Referenced by abs_lookupSetupBatch(), atm_fields_compactFromMatrix(), and AtmFieldsFromCompact().
| const Index GFIELD4_ZA_GRID = 2 |
Global constant, Index of the zenith angle grid in GField4.
- Date:
- 2008-07-01
Referenced by antenna1d_matrix(), and sensor_responseAntenna().
| const Numeric HZ2CM = 0.01 / SPEED_OF_LIGHT |
Global constant, converts Hz to cm-1.
Multiply your value in Hz by this constant to get the value in cm-1.
- Date:
- 2003-09-07
Referenced by chi_cousin().
Define the global joker objekt.
This is used by Matpack to specify joker ranges.
- Date:
- 2001-09-10
Definition at line 304 of file constants.cc.
Referenced by abs_coefCalcSaveMemory(), abs_fieldCalc(), abs_h2oSet(), abs_lookupCreate(), abs_lookupSetup(), abs_lookupSetupBatch(), abs_lookupSetupWide(), abs_lookupTestAccuracy(), abs_n2Set(), abs_scalar_gasFromAbsCoef(), abs_vecAddGas(), abs_vecAddPart(), abs_vecTransform(), abs_xsec_per_speciesAddConts(), abs_xsec_per_speciesAddLines(), AbsInputFromAtmFields(), GasAbsLookup::Adapt(), antenna1d_matrix(), apply_y_unit_single(), atm_fields_compactAddConstant(), atm_fields_compactFromMatrix(), AtmFieldsCalc(), AtmFieldsFromCompact(), AtmFieldsRefinePgrid(), calc_lookup_error(), clear_rt_vars_at_gp(), cloud_atm_vars_by_gp(), cloud_fieldsCalc(), cloud_ppath_update1D_planeparallel(), cloud_ppath_update3D(), cloud_RT_no_background(), cloud_RT_surface(), Cloudbox_ppath_rteCalc(), cloudbox_ppath_start_stepping(), Cloudbox_ppathCalc(), CloudboxGetIncoming(), CloudboxGetIncoming1DAtm(), cloudy_rt_vars_at_gp(), doit_i_fieldSetClearsky(), doit_i_fieldUpdateSeq3D(), doit_scat_fieldCalc(), doit_scat_fieldCalcLimb(), DoitCloudboxFieldPut(), DoitScatteringDataPrepare(), dtauc_ssalbCalc(), ext_matAddGas(), ext_matAddPart(), ext_matTransform(), Extract(), GasAbsLookup::Extract(), findZ11max(), get_radiative_background(), get_refr_index_1d(), get_refr_index_2d(), get_refr_index_3d(), include_cumtrans_in_diy_dq(), include_trans_in_diy_dq(), interp(), interp_atmfield_by_itw(), interp_atmsurface_by_itw(), interp_cloud_coeff1D(), interp_gfield3(), interp_scat_angle_temperature(), interpolate_scat_angle(), interpolate_scat_angleDOIT(), interpTArray(), iwp_cloud_opt_pathCalc(), iy_calc(), iy_interp_cloudbox_field(), jacobian_from_path_to_rgrids(), jacobianCalcAbsSpecies(), jacobianCalcPointing(), jacobianCalcTemperature(), Matrix1ColFromVector(), Matrix1RowFromVector(), Matrix2ColFromVectors(), Matrix2RowFromVectors(), Matrix3ColFromVectors(), Matrix3RowFromVectors(), matrix_exp(), mc_IWP_cloud_opt_pathCalc(), MCGeneral(), MCIPA(), mcPathTrace(), mcPathTraceGeneral(), mcPathTraceIPA(), opt_depth_calc(), opt_prop_sptFromData(), opt_prop_sptFromMonoData(), opt_propExtract(), pha_mat_singleExtract(), pha_mat_sptFromData(), pha_mat_sptFromDataDOITOpt(), pha_mat_sptFromMonoData(), pha_matTransform(), pmomCalc(), pnd_fieldCalc(), ppath_append(), ppath_calc(), ppath_copy(), ppath_start_stepping(), ppath_stepGeometric(), ppath_stepRefractionEuler(), refr_indexFieldAndGradients(), rte_pos_and_losFromTangentPressure(), rte_posAddGeoidWGS84(), rte_posAddRgeoid(), rte_posShift(), rte_std(), RteCalc(), rtecalc_check_input(), RteCalcMC(), scat_data_monoCalc(), scat_data_rawCheck(), ScatteringMonteCarlo(), Select(), sensor_posAddGeoidWGS84(), sensor_posAddRgeoid(), sensor_responseAntenna(), surface_calc(), surfaceFlatRefractiveIndex(), surfaceFlatVaryingEmissivity(), TArrayCalc(), Tensor3FillWithVector(), test01(), test04(), test06(), test40(), VectorExtractFromMatrix(), VectorZtanToZaRefr1D(), xsec_continuum_tag(), ybatchCalc_implementation(), ybatchMetProfiles(), ybatchMetProfilesClear(), z_at_lat_2d(), z_at_latlon(), and za_gridOpt().
| const Numeric LOG10_EULER_NUMBER = 0.43429448190325176 |
Global constant, log10(Euler's number).
- Date:
- 08.11.2001
| const Numeric LOSCHMIDT_CONST = 2.686763E25 |
Global constant, Loschmidt constant [m^-3].
- Date:
- 2000-12-19
| const Numeric NAT_LOG_TEN = 2.3025850929940459 |
Global constant, ln(10).
- Date:
- 08.11.2001
Global constant, pi.
- Date:
- 08.04.2000
Referenced by AngIntegrate_trapezoid(), AngIntegrate_trapezoid_fixedstep(), AngIntegrate_trapezoid_original(), cloud_ppath_update1D_planeparallel(), interp_scat_angle_temperature(), interpolate_scat_angle(), lineshape_CO2_lorentz(), lineshape_doppler(), lineshape_lorentz(), lineshape_rosenkranz_voigt_drayson(), lineshape_rosenkranz_voigt_kuntz6(), lineshape_voigt_drayson(), lineshape_voigt_kuntz3(), lineshape_voigt_kuntz4(), lineshape_voigt_kuntz6(), magfield_nk(), MPM93_N2_continuum(), MPM93_O2_continuum(), pha_mat_labCalc(), phase_functionCalc(), pmomCalc(), PWR93O2AbsModel(), Standard_O2_continuum(), test_AngIntegrate_trapezoid_opti(), test_x(), test_x_fixedstep(), test_xy(), test_xy_fixedstep(), test_xy_fixedstep_opt(), test_xy_fixedstep_opt2(), test_xy_opt(), and ybatchMetProfilesClear().
| const Numeric PLANCK_CONST = 6.626180e-34 |
Global constant, the Planck constant [Js].
- Date:
- 08.04.2000
Referenced by invplanck(), lineshape_norm_VVH(), planck(), planck2(), wavenumber_to_joule(), and xsec_species().
| const String POINTING_MAINTAG = "Sensor pointing" |
| const String POLYFIT_MAINTAG = "Polynomial baseline fit" |
| const Numeric PRES_STAND = 101300.25 |
Global constant, Standard pressure in Pa.
- Date:
- 2000-12-19
Global constant, conversion from radians to degrees.
Multiply your value in radians by this constant to get the value in degrees.
- Date:
- 08.04.2000
Referenced by cart2poslos(), cart2sph(), doit_i_fieldUpdateSeq1D(), doit_i_fieldUpdateSeq3D(), geompath_za_at_r(), interp_scat_angle_temperature(), interpolate_scat_angle(), pha_mat_labCalc(), plevel_angletilt(), plevel_crossing_2d(), plevel_crossing_3d(), raytrace_1d_linear_euler(), raytrace_2d_linear_euler(), raytrace_3d_linear_euler(), Sample_los(), VectorZtanToZaRefr1D(), ybatchMetProfiles(), za_geom2other_point(), and ZaSatOccultation().
| const Numeric SPEED_OF_LIGHT = 2.99792458e8 |
Global constant, spped of light in vaccum [m/s].
- Date:
- 08.04.2000
Referenced by CKD_222_foreign_h2o(), CKD_222_self_h2o(), CKD_241_co2(), CKD_242_foreign_h2o(), CKD_242_self_h2o(), CKD_mt_100_foreign_h2o(), CKD_mt_100_self_h2o(), CKD_mt_CIAfun_n2(), CKD_mt_CIAfun_o2(), CKD_mt_CIArot_n2(), CKD_mt_co2(), CKD_mt_v0v0_o2(), CKD_mt_v1v0_o2(), invplanck(), invrayjean(), MCGeneral(), MCIPA(), MPM93_N2_continuum(), MPM93_O2_continuum(), planck(), planck2(), LineRecord::ReadFromHitran2004Stream(), LineRecord::ReadFromHitranStream(), LineRecord::ReadFromMytran2Stream(), ScatteringMonteCarlo(), Standard_O2_continuum(), wavenumber_to_joule(), and xsec_species().
| const Numeric SQRT_NAT_LOG_2 = 0.832554611 |
Global constant, sqrt(ln(2)).
- Date:
- 25.09.2000
Global constant, Planck temperature for solar radiation [K].
- Date:
- 08.04.2000
Global constant, Temperature in Celsius of 0 Kelvin.
- Date:
- 2000-12-19
Referenced by complex_nWaterLiebe93().
| const String TEMPERATURE_MAINTAG = "Atmospheric temperatures" |
Global constant, converts torr to Pa.
Multiply your value in torr by this constant to get the value in Pa.
- Date:
- 2000-10-31
Referenced by LineRecord::ReadFromMytran2Stream().
