optproperties.cc File Reference

This file contains definitions and functions related to the optical properties of particles. More...

#include <cmath>
#include <stdexcept>
#include "arts.h"
#include "matpackVII.h"
#include "array.h"
#include "math_funcs.h"
#include "messages.h"
#include "logic.h"
#include "interpolation.h"
#include "optproperties.h"
#include "xml_io.h"

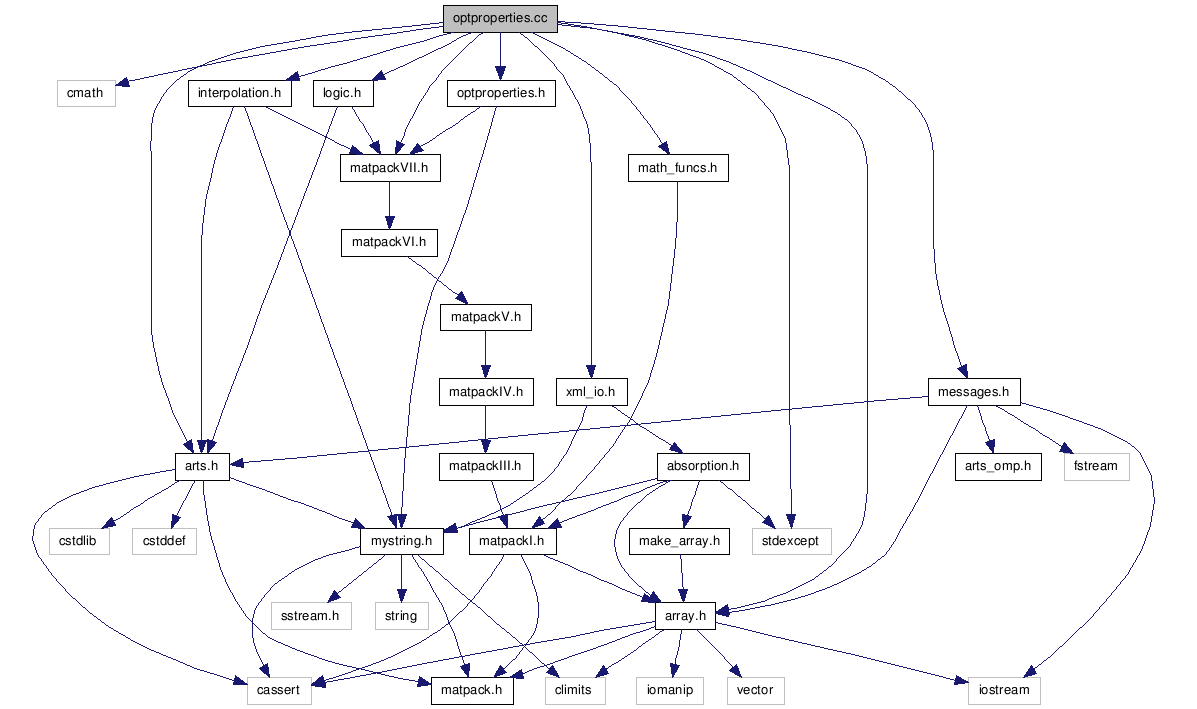

Include dependency graph for optproperties.cc:

Go to the source code of this file.

Defines

#define F11   pha_mat_int[0]

#define F12   pha_mat_int[1]

#define F22   pha_mat_int[2]

#define F33   pha_mat_int[3]

#define F34   pha_mat_int[4]

#define F44   pha_mat_int[5]

Functions

void abs_vecTransform (VectorView abs_vec_lab, ConstTensor3View abs_vec_data, ConstVectorView za_datagrid, ConstVectorView aa_datagrid, const PType &ptype, const Numeric &za_sca, const Numeric &aa_sca)

Transformation of absorption vector.

void ext_matTransform (MatrixView ext_mat_lab, ConstTensor3View ext_mat_data, ConstVectorView za_datagrid, ConstVectorView aa_datagrid, const PType &ptype, const Numeric &za_sca, const Numeric &aa_sca)

Transformation of extinction matrix.

void pha_matTransform (MatrixView pha_mat_lab, ConstTensor5View pha_mat_data, ConstVectorView za_datagrid, ConstVectorView aa_datagrid, const PType &ptype, const Index &za_sca_idx, const Index &aa_sca_idx, const Index &za_inc_idx, const Index &aa_inc_idx, ConstVectorView scat_za_grid, ConstVectorView scat_aa_grid)

Transformation of phase matrix.

void interpolate_scat_angleDOIT (VectorView pha_mat_int, ConstTensor5View pha_mat_data, const Index &za_sca_idx, const Index &aa_sca_idx, const Index &za_inc_idx, const Index &aa_inc_idx, const ArrayOfArrayOfArrayOfArrayOfGridPos &scat_theta_gps, ConstTensor5View scat_theta_itws)

Interpolate data on the scattering angle.

void interpolate_scat_angle (VectorView pha_mat_int, Numeric &theta_rad, ConstTensor5View pha_mat_data, ConstVectorView za_datagrid, const Numeric &za_sca, const Numeric &aa_sca, const Numeric &za_inc, const Numeric &aa_inc)

Interpolate data on the scattering angle.

void pha_mat_labCalc (MatrixView pha_mat_lab, ConstVectorView pha_mat_int, const Numeric &za_sca, const Numeric &aa_sca, const Numeric &za_inc, const Numeric &aa_inc, const Numeric &theta_rad)

Calculate phase matrix in laboratory coordinate system.

ostream & operator<< (ostream &os, const SingleScatteringData &)

ostream & operator<< (ostream &os, const ArrayOfSingleScatteringData &)

Variables

const Numeric DEG2RAD

const Numeric RAD2DEG

const Numeric PI

Detailed Description

This file contains definitions and functions related to the optical properties of particles.

Author:: Claudia Emde <claudia.emde@dlr.de>

Date:: Thu Mar 6 11:29:59 2003

Definition in file optproperties.cc.

Define Documentation

#define F11 pha_mat_int[0]

Definition at line 56 of file optproperties.cc.

Referenced by pha_mat_labCalc().

#define F12 pha_mat_int[1]

Definition at line 57 of file optproperties.cc.

Referenced by pha_mat_labCalc().

#define F22 pha_mat_int[2]

Definition at line 58 of file optproperties.cc.

Referenced by pha_mat_labCalc().

#define F33 pha_mat_int[3]

Definition at line 59 of file optproperties.cc.

Referenced by pha_mat_labCalc().

#define F34 pha_mat_int[4]

Definition at line 60 of file optproperties.cc.

Referenced by pha_mat_labCalc().

#define F44 pha_mat_int[5]

Definition at line 61 of file optproperties.cc.

Referenced by pha_mat_labCalc().

Function Documentation

void abs_vecTransform	(	VectorView	abs_vec_lab,
		ConstTensor3View	abs_vec_data,
		ConstVectorView	za_datagrid,
		ConstVectorView	aa_datagrid,
		const PType &	ptype,
		const Numeric &	za_sca,
		const Numeric &	aa_sca
	)

Transformation of absorption vector.

In the single scattering database the data of the absorption vector is stored in different coordinate systems, depending on the type of hydrometeor species.

See AUG for information about different classifications of the hydrometeor species.

Output and Input:

Parameters:

	abs_vec_lab	Absorption vector in Laboratory frame. Input:
	abs_vec_data	Absorption vector in database.
	za_datagrid	Zenith angle grid in the database.
	aa_datagrid	Zenith angle grid in the database.
	ptype	Clasiification of the hydometeor species.
	za_sca	Zenith angle of scattered direction.
	aa_sca	Azimuth angle of scattered direction.

Author:: Claudia Emde

Date:: 2003-05-24

Definition at line 85 of file optproperties.cc.

References gridpos(), interp(), interpweights(), joker, ConstTensor3View::ncols(), ConstVectorView::nelem(), out0, PTYPE_GENERAL, PTYPE_HORIZ_AL, and PTYPE_MACROS_ISO.

Referenced by opt_prop_sptFromData(), and opt_prop_sptFromMonoData().

void ext_matTransform	(	MatrixView	ext_mat_lab,
		ConstTensor3View	ext_mat_data,
		ConstVectorView	za_datagrid,
		ConstVectorView	aa_datagrid,
		const PType &	ptype,
		const Numeric &	za_sca,
		const Numeric &	aa_sca
	)

Transformation of extinction matrix.

In the single scattering database the data of the extinction matrix is stored in different coordinate systems, depending on the type of hydrometeor species.

See AUG for information about different classifications of the hydrometeor species.

Output and Input:

Parameters:

	ext_mat_lab	Absorption vector in Laboratory frame. Input:
	ext_mat_data	Absorption vector in database.
	za_datagrid	Zenith angle grid in the database.
	aa_datagrid	Zenith angle grid in the database.
	ptype	Clasiification of the hydometeor species.
	za_sca	Zenith angle of scattered direction.
	aa_sca	Azimuth angle of scattered direction.

Author:: Claudia Emde

Date:: 2003-05-24

Definition at line 182 of file optproperties.cc.

References gridpos(), interp(), interpweights(), joker, ConstTensor3View::ncols(), ConstMatrixView::ncols(), out0, PTYPE_GENERAL, PTYPE_HORIZ_AL, and PTYPE_MACROS_ISO.

Referenced by opt_prop_sptFromData(), and opt_prop_sptFromMonoData().

void interpolate_scat_angle	(	VectorView	pha_mat_int,
		Numeric &	theta_rad,
		ConstTensor5View	pha_mat_data,
		ConstVectorView	za_datagrid,
		const Numeric &	za_sca,
		const Numeric &	aa_sca,
		const Numeric &	za_inc,
		const Numeric &	aa_inc
	)

Interpolate data on the scattering angle.

This function is used for the transformation of the phase matrix from scattering frame to the laboratory frame for randomly oriented scattering media (case PTYPE_MACRO_ISO).

The scattering angle is calculated from the angles defining the directions of the incoming and scattered radiation. After that the data (which is stored in the data files as a function of the scattering angle) is interpolated on the calculated scattering angle.

Parameters:

`[out]`	pha_mat_int	Interpolated phase matrix.
`[out]`	theta_rad	Scattering angle [rad].
`[in]`	pha_mat_data	Phase matrix in database.
`[in]`	za_datagrid	Zenith angle grid in the database.
`[in]`	za_sca	Zenith angle of scattered direction [rad].
`[in]`	aa_sca	Azimuth angle of scattered direction [rad].
`[in]`	za_inc	Zenith angle of incoming direction [rad].
`[in]`	aa_inc	Azimuth angle of incoming direction [rad].

Author:: Claudia Emde

Date:: 2003-08-19

Definition at line 590 of file optproperties.cc.

References abs, DEG2RAD, gridpos(), interp(), interpweights(), joker, ConstTensor5View::ncols(), PI, and RAD2DEG.

Referenced by pha_matTransform().

void interpolate_scat_angleDOIT	(	VectorView	pha_mat_int,
		ConstTensor5View	pha_mat_data,
		const Index &	za_sca_idx,
		const Index &	aa_sca_idx,
		const Index &	za_inc_idx,
		const Index &	aa_inc_idx,
		const ArrayOfArrayOfArrayOfArrayOfGridPos &	scat_theta_gps,
		ConstTensor5View	scat_theta_itws
	)

Interpolate data on the scattering angle.

This function is used for the transformation of the phase matrix from scattering frame to the laboratory frame for randomly oriented scattering media (case PTYPE_MACRO_ISO).

The scattering angle is calculated from the angles defining the directions of the incoming and scattered radiation. After that the data (which is stored in the data files as a function of the scattering angle) is interpolated on the calculated scattering angle.

Parameters:

`[out]`	pha_mat_int	Interpolated phase matrix.
`[in]`	pha_mat_data	Phase matrix in database.
`[in]`	za_sca_idx	Index of zenith angle of scattered direction.
`[in]`	aa_sca_idx	Index of azimuth angle of scattered direction.
`[in]`	za_inc_idx	Zenith angle of incoming direction.
`[in]`	aa_inc_idx	Azimuth angle of incoming direction.
`[in]`	scat_theta_gps	Array of gridposizions for scattering angle.
`[in]`	scat_theta_itws	Interpolation weights belonging to the scattering angles.

Author:: Claudia Emde

Date:: 2003-05-13

Definition at line 541 of file optproperties.cc.

References interp(), and joker.

ostream& operator<<	(	ostream &	os,
		const ArrayOfSingleScatteringData &
	)

Definition at line 870 of file optproperties.cc.

ostream& operator<<	(	ostream &	os,
		const SingleScatteringData &
	)

Definition at line 863 of file optproperties.cc.

void pha_mat_labCalc	(	MatrixView	pha_mat_lab,
		ConstVectorView	pha_mat_int,
		const Numeric &	za_sca,
		const Numeric &	aa_sca,
		const Numeric &	za_inc,
		const Numeric &	aa_inc,
		const Numeric &	theta_rad
	)

Calculate phase matrix in laboratory coordinate system.

Transformation function for the phase matrix for the case of randomly oriented particles (case PTYPE_MACRO_ISO).

Some of the formulas can be found in

Mishchenkho: "Scattering, Absorption and Emission of Light by Small Particles", Cambridge University Press, 2002 Capter 4

The full set of formulas will be documented in AUG.

Output and Input:

Parameters:

	pha_mat_lab	Phase matrix in laboratory frame. Input:
	pha_mat_int	Interpolated phase matrix.
	za_sca	Zenith angle of scattered direction.
	aa_sca	Azimuth angle of scattered direction.
	za_inc	Zenith angle of incoming direction.
	aa_inc	Azimuth angle of incoming direction.
	theta_rad	Scattering angle [rad].

Author:: Claudia Emde

Date:: 2003-05-13

Definition at line 678 of file optproperties.cc.

References abs, ANGTOL, DEG2RAD, F11, F12, F22, F33, F34, F44, ConstMatrixView::ncols(), PI, and RAD2DEG.

Referenced by pha_mat_singleExtract(), and pha_matTransform().

void pha_matTransform	(	MatrixView	pha_mat_lab,
		ConstTensor5View	pha_mat_data,
		ConstVectorView	za_datagrid,
		ConstVectorView	aa_datagrid,
		const PType &	ptype,
		const Index &	za_sca_idx,
		const Index &	aa_sca_idx,
		const Index &	za_inc_idx,
		const Index &	aa_inc_idx,
		ConstVectorView	scat_za_grid,
		ConstVectorView	scat_aa_grid
	)

Transformation of phase matrix.

In the single scattering database the data of the phase matrix is stored in different coordinate systems, depending on the type of hydrometeor species.

See AUG for information about different classifications of the hydrometeor species.

Parameters:

`[in,out]`	pha_mat_lab	Absorption vector in Laboratory frame.
`[in]`	pha_mat_data	Absorption vector in database.
`[in]`	za_datagrid	Zenith angle grid in the database.
`[in]`	aa_datagrid	Zenith angle grid in the database.
`[in]`	ptype	Classification of the hydometeor species.
`[in]`	za_sca_idx	Index of zenith angle of scattered direction.
`[in]`	aa_sca_idx	Index of azimuth angle of scattered direction.
`[in]`	za_inc_idx	Index of zenith angle of incoming direction.
`[in]`	aa_inc_idx	Index of azimuth angle of incoming direction.
`[in]`	scat_za_grid	FIXME: DOC
`[in]`	scat_aa_grid	FIXME: DOC

Author:: Claudia Emde

Date:: 2003-08-19

Definition at line 328 of file optproperties.cc.

References abs, gridpos(), interp(), interpolate_scat_angle(), interpweights(), joker, ConstTensor5View::ncols(), ConstMatrixView::ncols(), out0, pha_mat_labCalc(), PTYPE_GENERAL, PTYPE_HORIZ_AL, and PTYPE_MACROS_ISO.

Referenced by DoitScatteringDataPrepare(), pha_mat_sptFromData(), and pha_mat_sptFromMonoData().

Variable Documentation

const Numeric DEG2RAD

const Numeric PI

const Numeric RAD2DEG
