mc_interp.h File Reference

Interpolation classes and functions created for use within Monte Carlo scattering simulations. More...

#include "arts.h"
#include "matpackI.h"
#include "array.h"
#include "interpolation.h"
#include "optproperties.h"
#include "ppath.h"

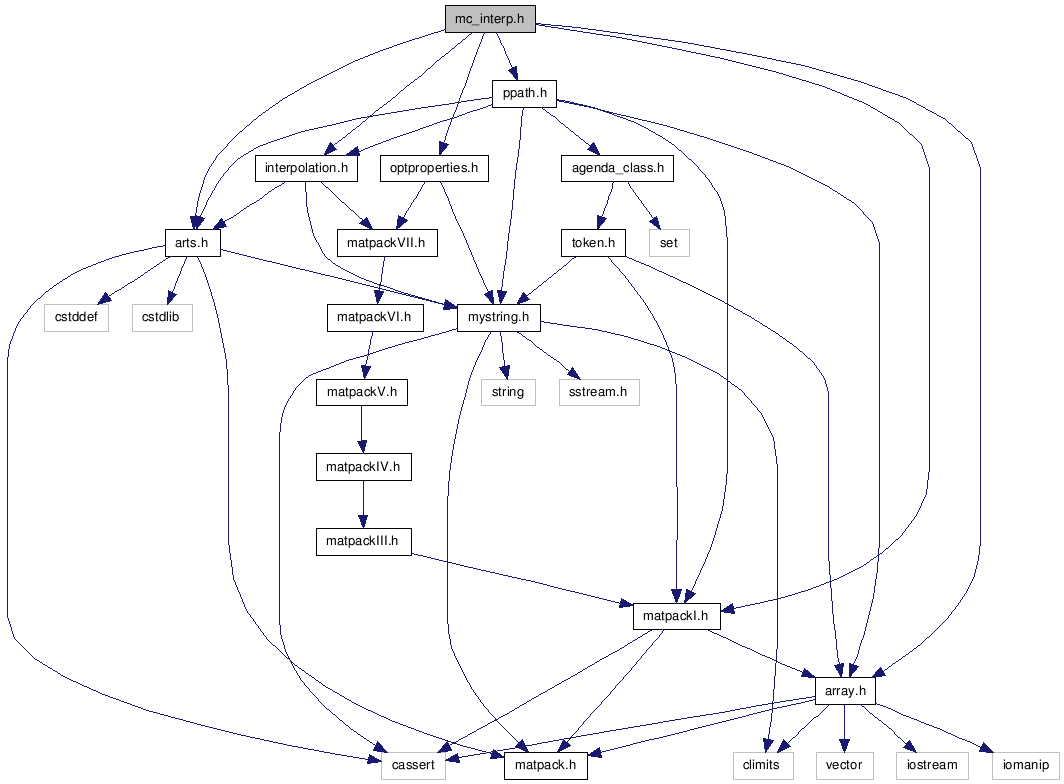

Include dependency graph for mc_interp.h:

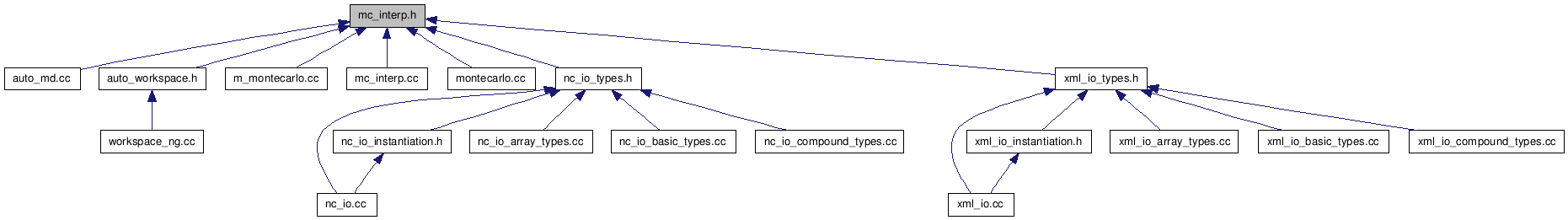

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	SLIData2
	A 2D sequential linear interpolation (SLI) lookup table. More...
Functions
ostream &	operator<< (ostream &os, const SLIData2 &sli)
Matrix	interp (ConstVectorView itw, ArrayOfMatrix a, const GridPos &tc)
	Red 1D Interpolate.
void	interp_scat_angle_temperature (VectorView pha_mat_int, Numeric &theta_rad, const SingleScatteringData &scat_data, const Numeric &za_sca, const Numeric &aa_sca, const Numeric &za_inc, const Numeric &aa_inc, const Numeric &rte_temperature)
void	interpTArray (Matrix &T, Vector &Kabs, Numeric &temperature, MatrixView &K, Vector &rte_pos, Vector &rte_los, VectorView &pnd_vec, const ArrayOfMatrix &TArray, const ArrayOfMatrix &ext_matArray, const ArrayOfVector &abs_vecArray, const Vector &t_ppath, const Matrix &pnd_ppath, const Vector &cum_l_step, const Numeric &pathlength, const Index &stokes_dim, const Ppath &ppath)
Variables
const Numeric	DEG2RAD
const Numeric	RAD2DEG
const Numeric	PI

---

Detailed Description

Interpolation classes and functions created for use within Monte Carlo scattering simulations.

Author:

Cory Davis <cory@met.ed.ac.uk>

Date:

2005-02-28

Definition in file mc_interp.h.

---

Function Documentation

Matrix interp	(	ConstVectorView	itw,
		ArrayOfMatrix	a,
		const GridPos &	tc
	)

Red 1D Interpolate.

This is a slight modifiaction of Stefan's code to do 1_D interpolation to get a Matrix from an array of Matrices

The dimension of itw must be consistent with the dimension of the interpolation (2^n).

Parameters:

	itw	Interpolation weights.
	a	The field to interpolate.(ArrayOfMatrix)
	tc	The grid position for the column dimension.

Returns:

Interpolated value.

Author:

Cory Davis (modified original code by Stefan Buehler)

Date:

2003-06-19

This is a slight modifiaction of Stefan's code to do 1_D interpolation to get a Vector from an array of Vectors

The dimension of itw must be consistent with the dimension of the interpolation (2^n).

Parameters:

	itw	Interpolation weights.
	a	The field to interpolate. (ArrayOfVector)
	tc	The grid position for the column dimension.

Returns:

Interpolated value.

Author:

Cory Davis (modified original code by Stefan Buehler)

Date:

2003-06-19

Definition at line 111 of file mc_interp.cc.

References DEBUG_ONLY, GridPos::idx, is_same_within_epsilon(), is_size(), ConstVectorView::sum(), and sum_check_epsilon.

void interp_scat_angle_temperature	(	VectorView	pha_mat_int,
		Numeric &	theta_rad,
		const SingleScatteringData &	scat_data,
		const Numeric &	za_sca,
		const Numeric &	aa_sca,
		const Numeric &	za_inc,
		const Numeric &	aa_inc,
		const Numeric &	rte_temperature
	)

Definition at line 190 of file mc_interp.cc.

References abs, DEG2RAD, gridpos(), interp(), interpweights(), joker, ConstTensor7View::ncols(), SingleScatteringData::pha_mat_data, PI, RAD2DEG, SingleScatteringData::T_grid, and SingleScatteringData::za_grid.

Referenced by pha_mat_singleExtract().

void interpTArray	(	Matrix &	T,
		Vector &	Kabs,
		Numeric &	temperature,
		MatrixView &	K,
		Vector &	rte_pos,
		Vector &	rte_los,
		VectorView &	pnd_vec,
		const ArrayOfMatrix &	TArray,
		const ArrayOfMatrix &	ext_matArray,
		const ArrayOfVector &	abs_vecArray,
		const Vector &	t_ppath,
		const Matrix &	pnd_ppath,
		const Vector &	cum_l_step,
		const Numeric &	pathlength,
		const Index &	stokes_dim,
		const Ppath &	ppath
	)

ostream& operator<<	(	ostream &	os,
		const SLIData2 &	sli
	)

Definition at line 78 of file mc_interp.cc.

---

Variable Documentation

const Numeric DEG2RAD

const Numeric PI

const Numeric RAD2DEG
