mc_interp.cc File Reference

Interpolation classes and functions created for use within Monte Carlo scattering simulations. More...

#include "mc_interp.h"
#include "logic.h"
#include "montecarlo.h"

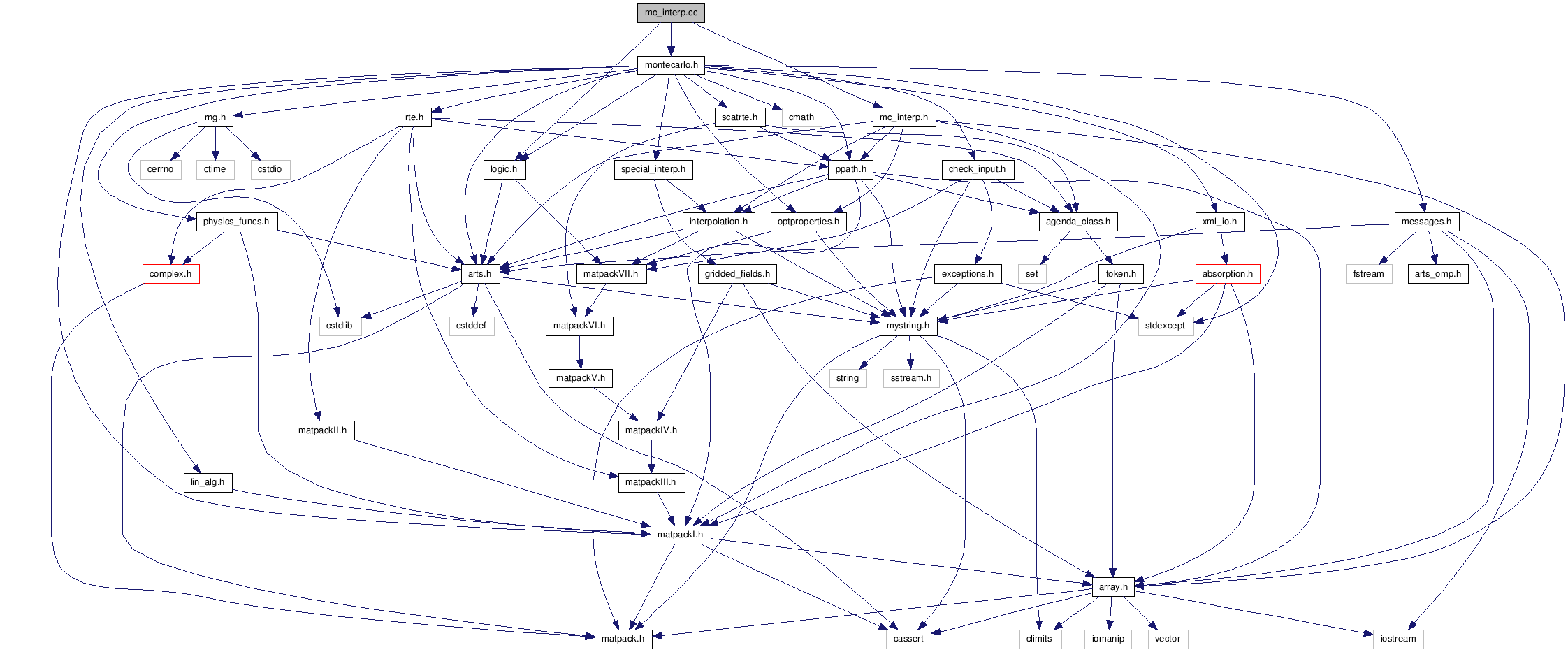

Include dependency graph for mc_interp.cc:

Go to the source code of this file.

Functions
ostream &	operator<< (ostream &os, const SLIData2 &)
Matrix	interp (ConstVectorView itw, ArrayOfMatrix a, const GridPos &tc)
	Red 1D Interpolate.
void	interp_scat_angle_temperature (VectorView pha_mat_int, Numeric &theta_rad, const SingleScatteringData &scat_data, const Numeric &za_sca, const Numeric &aa_sca, const Numeric &za_inc, const Numeric &aa_inc, const Numeric &rte_temperature)
void	interpTArray (Matrix &T, Vector &K_abs, Numeric &temperature, MatrixView &K, Vector &rte_pos, Vector &rte_los, VectorView &pnd_vec, const ArrayOfMatrix &TArray, const ArrayOfMatrix &ext_matArray, const ArrayOfVector &abs_vecArray, const Vector &t_ppath, const Matrix &pnd_ppath, const Vector &cum_l_step, const Numeric &pathlength, const Index &stokes_dim, const Ppath &ppath)
	interpTarray

---

Detailed Description

Interpolation classes and functions created for use within Monte Carlo scattering simulations.

Author:

Cory Davis <cory@met.ed.ac.uk>

Date:

2005-02-28

Definition in file mc_interp.cc.

---

Function Documentation

Matrix interp	(	ConstVectorView	itw,
		ArrayOfMatrix	a,
		const GridPos &	tc
	)

Red 1D Interpolate.

This is a slight modifiaction of Stefan's code to do 1_D interpolation to get a Matrix from an array of Matrices

The dimension of itw must be consistent with the dimension of the interpolation (2^n).

Parameters:

	itw	Interpolation weights.
	a	The field to interpolate.(ArrayOfMatrix)
	tc	The grid position for the column dimension.

Returns:

Interpolated value.

Author:

Cory Davis (modified original code by Stefan Buehler)

Date:

2003-06-19

This is a slight modifiaction of Stefan's code to do 1_D interpolation to get a Vector from an array of Vectors

The dimension of itw must be consistent with the dimension of the interpolation (2^n).

Parameters:

	itw	Interpolation weights.
	a	The field to interpolate. (ArrayOfVector)
	tc	The grid position for the column dimension.

Returns:

Interpolated value.

Author:

Cory Davis (modified original code by Stefan Buehler)

Date:

2003-06-19

Definition at line 111 of file mc_interp.cc.

References DEBUG_ONLY, GridPos::idx, is_same_within_epsilon(), is_size(), ConstVectorView::sum(), and sum_check_epsilon.

void interp_scat_angle_temperature	(	VectorView	pha_mat_int,
		Numeric &	theta_rad,
		const SingleScatteringData &	scat_data,
		const Numeric &	za_sca,
		const Numeric &	aa_sca,
		const Numeric &	za_inc,
		const Numeric &	aa_inc,
		const Numeric &	rte_temperature
	)

Definition at line 190 of file mc_interp.cc.

References abs, DEG2RAD, gridpos(), interp(), interpweights(), joker, ConstTensor7View::ncols(), SingleScatteringData::pha_mat_data, PI, RAD2DEG, SingleScatteringData::T_grid, and SingleScatteringData::za_grid.

Referenced by pha_mat_singleExtract().

void interpTArray	(	Matrix &	T,
		Vector &	K_abs,
		Numeric &	temperature,
		MatrixView &	K,
		Vector &	rte_pos,
		Vector &	rte_los,
		VectorView &	pnd_vec,
		const ArrayOfMatrix &	TArray,
		const ArrayOfMatrix &	ext_matArray,
		const ArrayOfVector &	abs_vecArray,
		const Vector &	t_ppath,
		const Matrix &	pnd_ppath,
		const Vector &	cum_l_step,
		const Numeric &	pathlength,
		const Index &	stokes_dim,
		const Ppath &	ppath
	)

interpTarray

Interpolates several arrays calculated by TarrayCalc to give values at a given pathlength

Parameters:

[out]	T	transmittance matrix ( I may have made this term up ).
[out]	K_abs	absorption coefficient vector
[out]	temperature	temperature
[out]	K	extinction matrix at interpolation point
[out]	rte_pos	position at pathlength along ppath
[out]	rte_los	LOS at pathlength along ppath
[in]	pnd_vec	pnd vector
[in]	TArray	array of transmittance matrices
[in]	ext_matArray	array of extinction matrices
[in]	abs_vecArray	array of absorption coefficients
[in]	t_ppath	array of temperatures
[in]	pnd_ppath	array of pressures
[in]	cum_l_step	vector of cumulative pathlengths
[in]	pathlength	pathlength at which to calculate above values
[in]	stokes_dim	length of Stokes vector
[in]	ppath	the Ppath

Author:

Cory Davis

Date:

2003-06-19

Definition at line 283 of file mc_interp.cc.

References gridpos(), interp(), interpweights(), is_diagonal(), joker, Ppath::los, matrix_exp_p30(), mult(), ConstVectorView::nelem(), and Ppath::pos.

Referenced by ScatteringMonteCarlo().

ostream& operator<<	(	ostream &	os,
		const SLIData2 &
	)

Definition at line 78 of file mc_interp.cc.
