m_scatrte.cc File Reference

This file contains functions to calculate the radiative transfer inside the cloudbox. More...

#include <stdexcept>
#include <iostream>
#include <cstdlib>
#include <cmath>
#include "arts.h"
#include "array.h"
#include "auto_md.h"
#include "check_input.h"
#include "matpackVII.h"
#include "logic.h"
#include "ppath.h"
#include "agenda_class.h"
#include "physics_funcs.h"
#include "lin_alg.h"
#include "math_funcs.h"
#include "messages.h"
#include "xml_io.h"
#include "rte.h"
#include "special_interp.h"
#include "scatrte.h"
#include "m_general.h"
#include "wsv_aux.h"

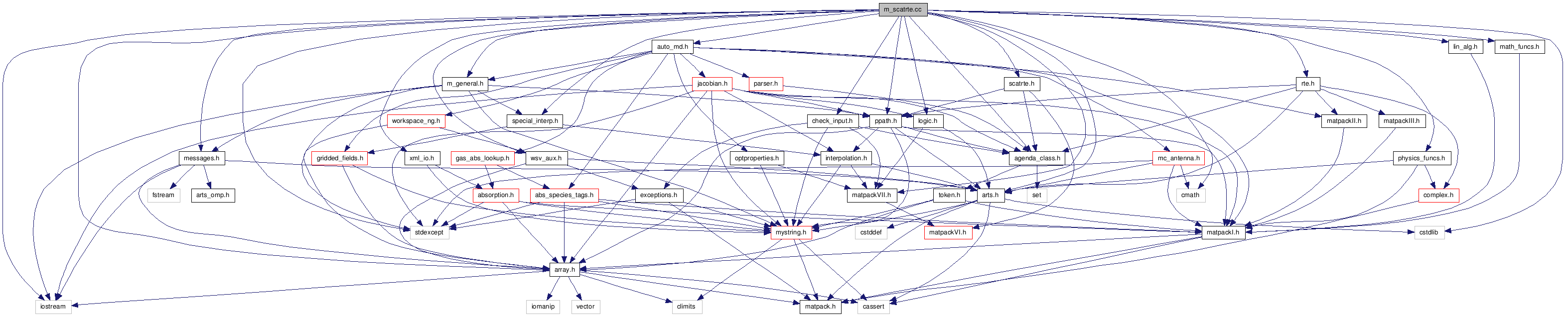

Include dependency graph for m_scatrte.cc:

Go to the source code of this file.

Functions
void	DoitAngularGridsSet (Index &doit_za_grid_size, Vector &scat_aa_grid, Vector &scat_za_grid, const Index &N_za_grid, const Index &N_aa_grid, const String &za_grid_opt_file)
	WORKSPACE METHOD: DoitAngularGridsSet.
void	doit_conv_flagAbs (Index &doit_conv_flag, Index &doit_iteration_counter, const Tensor6 &doit_i_field, const Tensor6 &doit_i_field_old, const Vector &epsilon)
	WORKSPACE METHOD: doit_conv_flagAbs.
void	doit_conv_flagAbsBT (Index &doit_conv_flag, Index &doit_iteration_counter, const Tensor6 &doit_i_field, const Tensor6 &doit_i_field_old, const Vector &f_grid, const Index &f_index, const Vector &epsilon)
	WORKSPACE METHOD: doit_conv_flagAbsBT.
void	doit_conv_flagLsq (Index &doit_conv_flag, Index &doit_iteration_counter, const Tensor6 &doit_i_field, const Tensor6 &doit_i_field_old, const Vector &f_grid, const Index &f_index, const Vector &epsilon)
	WORKSPACE METHOD: doit_conv_flagLsq.
void	doit_i_fieldIterate (Workspace &ws, Tensor6 &doit_i_field, const Agenda &doit_scat_field_agenda, const Agenda &doit_rte_agenda, const Agenda &doit_conv_test_agenda)
	WORKSPACE METHOD: doit_i_fieldIterate.
void	doit_i_fieldUpdate1D (Workspace &ws, Tensor6 &doit_i_field, const Tensor6 &doit_i_field_old, const Tensor6 &doit_scat_field, const ArrayOfIndex &cloudbox_limits, const Agenda &abs_scalar_gas_agenda, const Tensor4 &vmr_field, const Agenda &spt_calc_agenda, const Vector &scat_za_grid, const Tensor4 &pnd_field, const Agenda &opt_prop_part_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &ppath_step_agenda, const Vector &p_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &t_field, const Vector &f_grid, const Index &f_index, const Agenda &, const Index &doit_za_interp)
	WORKSPACE METHOD: doit_i_fieldUpdate1D.
void	doit_i_fieldUpdateSeq1D (Workspace &ws, Tensor6 &doit_i_field, const Tensor6 &doit_scat_field, const ArrayOfIndex &cloudbox_limits, const Agenda &abs_scalar_gas_agenda, const Tensor4 &vmr_field, const Agenda &spt_calc_agenda, const Vector &scat_za_grid, const Tensor4 &pnd_field, const Agenda &opt_prop_part_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &ppath_step_agenda, const Vector &p_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &t_field, const Vector &f_grid, const Index &f_index, const Agenda &surface_prop_agenda, const Index &doit_za_interp)
	WORKSPACE METHOD: doit_i_fieldUpdateSeq1D.
void	doit_i_fieldUpdateSeq3D (Workspace &ws, Tensor6 &doit_i_field, const Tensor6 &doit_scat_field, const ArrayOfIndex &cloudbox_limits, const Agenda &abs_scalar_gas_agenda, const Tensor4 &vmr_field, const Agenda &spt_calc_agenda, const Vector &scat_za_grid, const Vector &scat_aa_grid, const Tensor4 &pnd_field, const Agenda &opt_prop_part_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &ppath_step_agenda, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &t_field, const Vector &f_grid, const Index &f_index, const Index &doit_za_interp)
	WORKSPACE METHOD: doit_i_fieldUpdateSeq3D.
void	doit_i_fieldUpdateSeq1DPP (Workspace &ws, Tensor6 &doit_i_field, Index &scat_za_index, const Tensor6 &doit_scat_field, const ArrayOfIndex &cloudbox_limits, const Agenda &abs_scalar_gas_agenda, const Tensor4 &vmr_field, const Agenda &spt_calc_agenda, const Vector &scat_za_grid, const Tensor4 &pnd_field, const Agenda &opt_prop_part_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &ppath_step_agenda, const Vector &p_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Tensor3 &t_field, const Vector &f_grid, const Index &f_index)
	WORKSPACE METHOD: doit_i_fieldUpdateSeq1DPP.
void	DoitInit (Index &scat_p_index, Index &scat_lat_index, Index &scat_lon_index, Index &scat_za_index, Index &scat_aa_index, Tensor6 &doit_scat_field, Tensor6 &doit_i_field, Index &doit_za_interp, Index &doit_is_initialized, const Index &stokes_dim, const Index &atmosphere_dim, const Vector &scat_za_grid, const Vector &scat_aa_grid, const Index &doit_za_grid_size, const ArrayOfIndex &cloudbox_limits, const ArrayOfSingleScatteringData &scat_data_raw)
	WORKSPACE METHOD: DoitInit.
void	DoitWriteIterationFields (const Index &doit_iteration_counter, const Tensor6 &doit_i_field, const ArrayOfIndex &iterations)
	WORKSPACE METHOD: DoitWriteIterationFields.
void	doit_scat_fieldCalc (Workspace &ws, Tensor6 &doit_scat_field, const Agenda &pha_mat_spt_agenda, const Tensor6 &doit_i_field, const Tensor4 &pnd_field, const Tensor3 &t_field, const Index &atmosphere_dim, const ArrayOfIndex &cloudbox_limits, const Vector &scat_za_grid, const Vector &scat_aa_grid, const Index &doit_za_grid_size)
	WORKSPACE METHOD: doit_scat_fieldCalc.
void	doit_scat_fieldCalcLimb (Workspace &ws, Tensor6 &doit_scat_field, const Agenda &pha_mat_spt_agenda, const Tensor6 &doit_i_field, const Tensor4 &pnd_field, const Tensor3 &t_field, const Index &atmosphere_dim, const ArrayOfIndex &cloudbox_limits, const Vector &scat_za_grid, const Vector &scat_aa_grid, const Index &doit_za_grid_size, const Index &doit_za_interp)
	WORKSPACE METHOD: doit_scat_fieldCalcLimb.
void	doit_za_grid_optCalc (Vector &doit_za_grid_opt, const Tensor6 &doit_i_field, const Vector &scat_za_grid, const Index &doit_za_interp, const Numeric &acc)
	WORKSPACE METHOD: doit_za_grid_optCalc.
void	doit_za_interpSet (Index &doit_za_interp, const Index &atmosphere_dim, const String &method)
	WORKSPACE METHOD: doit_za_interpSet.
void	ScatteringDoit (Workspace &ws, Tensor6 &doit_i_field, Tensor7 &scat_i_p, Tensor7 &scat_i_lat, Tensor7 &scat_i_lon, Tensor4 &doit_i_field1D_spectrum, const Vector &f_grid, const Agenda &doit_mono_agenda, const Index &doit_is_initialized)
	WORKSPACE METHOD: ScatteringDoit.
Variables
const Numeric	PI
const Numeric	RAD2DEG

---

Detailed Description

This file contains functions to calculate the radiative transfer inside the cloudbox.

Author:

Claudia Emde <claudia.emde@dlr.de>

Sreerekha T.R. <rekha@uni-bremen.de>

Date:

Wed Jun 19 11:03:57 2002

These functions are listed in the doxygen documentation as entries of the file auto_md.h

Definition in file m_scatrte.cc.

---

Function Documentation

void doit_conv_flagAbs	(	Index &	doit_conv_flag,
		Index &	doit_iteration_counter,
		const Tensor6 &	doit_i_field,
		const Tensor6 &	doit_i_field_old,
		const Vector &	epsilon
	)

WORKSPACE METHOD: doit_conv_flagAbs.

Convergence test (maximum absolute difference).

The function calculates the absolute differences for two successive iteration fields. It picks out the maximum values for each Stokes component separately. The convergence test is fullfilled under the following conditions: |I(m+1) - I(m)| < epsilon_1 Intensity. |Q(m+1) - Q(m)| < epsilon_2 The other Stokes components. |U(m+1) - U(m)| < epsilon_3 |V(m+1) - V(m)| < epsilon_4 These conditions have to be valid for all positions in the cloudbox and for all directions.

The limits for convergence are set in the controlfile by setting the vector *epsilon* to appropriate values. The unit of *epsilon* is radiance [W / (m^2 Hz sr)].

This method can be used in *doit_convergence_test_agenda*.

Author:

Claudia Emde

Parameters:

[out]	doit_conv_flag	WS Output
[out]	doit_iteration_counter	WS Output
[in]	doit_i_field	WS Input
[in]	doit_i_field_old	WS Input
[in]	epsilon	Generic Input

Definition at line 114 of file m_scatrte.cc.

References abs, is_size(), ConstTensor6View::nbooks(), ConstTensor6View::ncols(), ConstVectorView::nelem(), ConstTensor6View::npages(), ConstTensor6View::nrows(), ConstTensor6View::nshelves(), ConstTensor6View::nvitrines(), out1, and out2.

Referenced by doit_conv_flagAbs_g().

void doit_conv_flagAbsBT	(	Index &	doit_conv_flag,
		Index &	doit_iteration_counter,
		const Tensor6 &	doit_i_field,
		const Tensor6 &	doit_i_field_old,
		const Vector &	f_grid,
		const Index &	f_index,
		const Vector &	epsilon
	)

WORKSPACE METHOD: doit_conv_flagAbsBT.

Convergence test (maximum absolute difference in Rayleigh Jeans BT)

The function calculates the absolute differences for two successive iteration fields. It picks out the maximum values for each Stokes component separately. The convergence test is fullfilled under the following conditions: |I(m+1) - I(m)| < epsilon_1 Intensity. |Q(m+1) - Q(m)| < epsilon_2 The other Stokes components. |U(m+1) - U(m)| < epsilon_3 |V(m+1) - V(m)| < epsilon_4 These conditions have to be valid for all positions in the cloudbox and for all directions.

The limits for convergence are set in the controlfile by setting the vector *epsilon* to appropriate values. The unit of *epsilon* is Rayleigh Jeans BT [K].

This method can be used in *doit_convergence_test_agenda*.

Author:

Sreerekha T.R.

Claudia Emde

Parameters:

[out]	doit_conv_flag	WS Output
[out]	doit_iteration_counter	WS Output
[in]	doit_i_field	WS Input
[in]	doit_i_field_old	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input
[in]	epsilon	Generic Input

Definition at line 222 of file m_scatrte.cc.

References abs, chk_if_increasing(), invrayjean(), is_size(), ConstTensor6View::nbooks(), ConstTensor6View::ncols(), ConstVectorView::nelem(), ConstTensor6View::npages(), ConstTensor6View::nrows(), ConstTensor6View::nshelves(), ConstTensor6View::nvitrines(), out1, and out2.

Referenced by doit_conv_flagAbsBT_g().

void doit_conv_flagLsq	(	Index &	doit_conv_flag,
		Index &	doit_iteration_counter,
		const Tensor6 &	doit_i_field,
		const Tensor6 &	doit_i_field_old,
		const Vector &	f_grid,
		const Index &	f_index,
		const Vector &	epsilon
	)

WORKSPACE METHOD: doit_conv_flagLsq.

Convergence test (Least square).

This method performs a least square convergence test for two successive iteration fields.

The limits for convergence are set in the controlfile by setting the vector *epsilon* to appropriate values. The unit of *epsilon* is Rayleigh Jeans BT [K].

Warning: This method is not recommended because this kind of convergence test is not sufficiently strict, so that the DOIT result might be wrong.

Author:

Claudia Emde

Parameters:

[out]	doit_conv_flag	WS Output
[out]	doit_iteration_counter	WS Output
[in]	doit_i_field	WS Input
[in]	doit_i_field_old	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input
[in]	epsilon	Generic Input

Definition at line 340 of file m_scatrte.cc.

References chk_if_increasing(), invrayjean(), is_size(), ConstTensor6View::nbooks(), ConstTensor6View::ncols(), ConstVectorView::nelem(), ConstTensor6View::npages(), ConstTensor6View::nrows(), ConstTensor6View::nshelves(), ConstTensor6View::nvitrines(), out1, and out2.

Referenced by doit_conv_flagLsq_g().

void doit_i_fieldIterate	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		const Agenda &	doit_scat_field_agenda,
		const Agenda &	doit_rte_agenda,
		const Agenda &	doit_conv_test_agenda
	)

WORKSPACE METHOD: doit_i_fieldIterate.

Iterative solution of the VRTE (DOIT method).

A solution for the RTE with scattering is found using the DOIT method:

1. Calculate scattering integral using *doit_scat_field_agenda*. 2. Calculate RT with fixed scattered field using <br> *doit_rte_agenda*. 3. Convergence test using *doit_conv_test_agenda*.

Note: The atmospheric dimensionality *atmosphere_dim* can be <br> either 1 or 3. To these dimensions the method adapts <br> automatically. 2D scattering calculations are not <br> supported.

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[in]	doit_scat_field_agenda	WS Input
[in]	doit_rte_agenda	WS Input
[in]	doit_conv_test_agenda	WS Input

Definition at line 463 of file m_scatrte.cc.

References chk_not_empty(), doit_conv_test_agendaExecute(), doit_rte_agendaExecute(), doit_scat_field_agendaExecute(), ConstTensor6View::nbooks(), ConstTensor6View::ncols(), ConstTensor6View::npages(), ConstTensor6View::nrows(), ConstTensor6View::nshelves(), ConstTensor6View::nvitrines(), and out2.

Referenced by doit_i_fieldIterate_g().

void doit_i_fieldUpdate1D	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		const Tensor6 &	doit_i_field_old,
		const Tensor6 &	doit_scat_field,
		const ArrayOfIndex &	cloudbox_limits,
		const Agenda &	abs_scalar_gas_agenda,
		const Tensor4 &	vmr_field,
		const Agenda &	spt_calc_agenda,
		const Vector &	scat_za_grid,
		const Tensor4 &	pnd_field,
		const Agenda &	opt_prop_part_agenda,
		const Agenda &	opt_prop_gas_agenda,
		const Agenda &	ppath_step_agenda,
		const Vector &	p_grid,
		const Tensor3 &	z_field,
		const Matrix &	r_geoid,
		const Matrix &	z_surface,
		const Tensor3 &	t_field,
		const Vector &	f_grid,
		const Index &	f_index,
		const Agenda &	surface_prop_agenda,
		const Index &	doit_za_interp
	)

WORKSPACE METHOD: doit_i_fieldUpdate1D.

RT calculation in cloudbox with fixed scattering integral (1D).

Update the radiation field (DOIT method). The method loops through the cloudbox to update the radiation field for all positions and directions in the 1D cloudbox.

Note: This method is very inefficient, because the number of iterations scales with the number of cloudbox pressure levels. It is recommended to use *doit_i_fieldUpdateSeq1D*.

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[in]	doit_i_field_old	WS Input
[in]	doit_scat_field	WS Input
[in]	cloudbox_limits	WS Input
[in]	abs_scalar_gas_agenda	WS Input
[in]	vmr_field	WS Input
[in]	spt_calc_agenda	WS Input
[in]	scat_za_grid	WS Input
[in]	pnd_field	WS Input
[in]	opt_prop_part_agenda	WS Input
[in]	opt_prop_gas_agenda	WS Input
[in]	ppath_step_agenda	WS Input
[in]	p_grid	WS Input
[in]	z_field	WS Input
[in]	r_geoid	WS Input
[in]	z_surface	WS Input
[in]	t_field	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input
[in]	surface_prop_agenda	WS Input
[in]	doit_za_interp	WS Input

Definition at line 528 of file m_scatrte.cc.

References chk_atm_surface(), chk_if_decreasing(), chk_if_increasing(), chk_not_empty(), chk_size(), cloud_fieldsCalc(), cloud_ppath_update1D_noseq(), is_size(), ConstTensor6View::ncols(), ConstVectorView::nelem(), Array< base >::nelem(), out2, and out3.

Referenced by doit_i_fieldUpdate1D_g().

void doit_i_fieldUpdateSeq1D	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		const Tensor6 &	doit_scat_field,
		const ArrayOfIndex &	cloudbox_limits,
		const Agenda &	abs_scalar_gas_agenda,
		const Tensor4 &	vmr_field,
		const Agenda &	spt_calc_agenda,
		const Vector &	scat_za_grid,
		const Tensor4 &	pnd_field,
		const Agenda &	opt_prop_part_agenda,
		const Agenda &	opt_prop_gas_agenda,
		const Agenda &	ppath_step_agenda,
		const Vector &	p_grid,
		const Tensor3 &	z_field,
		const Matrix &	r_geoid,
		const Matrix &	z_surface,
		const Tensor3 &	t_field,
		const Vector &	f_grid,
		const Index &	f_index,
		const Agenda &	surface_prop_agenda,
		const Index &	doit_za_interp
	)

WORKSPACE METHOD: doit_i_fieldUpdateSeq1D.

RT calculation in cloudbox with fixed scattering integral.

Update radiation field (*doit_i_field*) in DOIT module. This method loops through the cloudbox to update the radiation field for all positions and directions in the 1D cloudbox. The method applies the sequential update. For more information refer to AUG.

Note: This is the commonly used WSM for the radiation field update (can be used in *doit_rte_agenda*). It is recommended because it is the most efficient and accurate method.

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[in]	doit_scat_field	WS Input
[in]	cloudbox_limits	WS Input
[in]	abs_scalar_gas_agenda	WS Input
[in]	vmr_field	WS Input
[in]	spt_calc_agenda	WS Input
[in]	scat_za_grid	WS Input
[in]	pnd_field	WS Input
[in]	opt_prop_part_agenda	WS Input
[in]	opt_prop_gas_agenda	WS Input
[in]	ppath_step_agenda	WS Input
[in]	p_grid	WS Input
[in]	z_field	WS Input
[in]	r_geoid	WS Input
[in]	z_surface	WS Input
[in]	t_field	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input
[in]	surface_prop_agenda	WS Input
[in]	doit_za_interp	WS Input

Definition at line 694 of file m_scatrte.cc.

References chk_atm_surface(), chk_if_decreasing(), chk_if_increasing(), chk_not_empty(), chk_size(), cloud_fieldsCalc(), cloud_ppath_update1D(), is_size(), ConstTensor6View::ncols(), ConstVectorView::nelem(), Array< base >::nelem(), out2, out3, and RAD2DEG.

Referenced by doit_i_fieldUpdateSeq1D_g().

void doit_i_fieldUpdateSeq1DPP	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		Index &	scat_za_index,
		const Tensor6 &	doit_scat_field,
		const ArrayOfIndex &	cloudbox_limits,
		const Agenda &	abs_scalar_gas_agenda,
		const Tensor4 &	vmr_field,
		const Agenda &	spt_calc_agenda,
		const Vector &	scat_za_grid,
		const Tensor4 &	pnd_field,
		const Agenda &	opt_prop_part_agenda,
		const Agenda &	opt_prop_gas_agenda,
		const Agenda &	ppath_step_agenda,
		const Vector &	p_grid,
		const Tensor3 &	z_field,
		const Matrix &	r_geoid,
		const Tensor3 &	t_field,
		const Vector &	f_grid,
		const Index &	f_index
	)

WORKSPACE METHOD: doit_i_fieldUpdateSeq1DPP.

RT calculation in cloudbox with fixed scattering integral.

<br> Update radiation field (*doit_i_field*) in DOIT module. This method loops through the cloudbox to update the radiation field for all positions and directions in the 1D cloudbox. The method applies the sequential update and the plane parallel approximation. This method is only slightly faster than doit_i_fieldUpdateSeq1D* and it is less accurate. It can not be used for limb simulations.

Author:

Sreerekha T.R.

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[out]	scat_za_index	WS Output
[in]	doit_scat_field	WS Input
[in]	cloudbox_limits	WS Input
[in]	abs_scalar_gas_agenda	WS Input
[in]	vmr_field	WS Input
[in]	spt_calc_agenda	WS Input
[in]	scat_za_grid	WS Input
[in]	pnd_field	WS Input
[in]	opt_prop_part_agenda	WS Input
[in]	opt_prop_gas_agenda	WS Input
[in]	ppath_step_agenda	WS Input
[in]	p_grid	WS Input
[in]	z_field	WS Input
[in]	r_geoid	WS Input
[in]	t_field	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input

Definition at line 1226 of file m_scatrte.cc.

References cloud_fieldsCalc(), cloud_ppath_update1D_planeparallel(), is_size(), ConstTensor6View::ncols(), ConstVectorView::nelem(), out2, and out3.

Referenced by doit_i_fieldUpdateSeq1DPP_g().

void doit_i_fieldUpdateSeq3D	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		const Tensor6 &	doit_scat_field,
		const ArrayOfIndex &	cloudbox_limits,
		const Agenda &	abs_scalar_gas_agenda,
		const Tensor4 &	vmr_field,
		const Agenda &	spt_calc_agenda,
		const Vector &	scat_za_grid,
		const Vector &	scat_aa_grid,
		const Tensor4 &	pnd_field,
		const Agenda &	opt_prop_part_agenda,
		const Agenda &	opt_prop_gas_agenda,
		const Agenda &	ppath_step_agenda,
		const Vector &	p_grid,
		const Vector &	lat_grid,
		const Vector &	lon_grid,
		const Tensor3 &	z_field,
		const Matrix &	r_geoid,
		const Matrix &	z_surface,
		const Tensor3 &	t_field,
		const Vector &	f_grid,
		const Index &	f_index,
		const Index &	doit_za_interp
	)

WORKSPACE METHOD: doit_i_fieldUpdateSeq3D.

RT calculation in cloudbox with fixed scattering integral.

Update radiation field (*doit_i_field*) in DOIT module. This method loops through the cloudbox to update the radiation field for all positions and directions in the 3D cloudbox. The method applies the sequential update. For more information please refer to AUG. Surface reflections are not yet implemented in 3D scattering calculations.

Note: DOIT calculations in 3D are computationally expensive. For large 3D cloud fields it is recommended to use the Monte Carlo module or an independent pixel approach applying DOIT-1D.

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[in]	doit_scat_field	WS Input
[in]	cloudbox_limits	WS Input
[in]	abs_scalar_gas_agenda	WS Input
[in]	vmr_field	WS Input
[in]	spt_calc_agenda	WS Input
[in]	scat_za_grid	WS Input
[in]	scat_aa_grid	WS Input
[in]	pnd_field	WS Input
[in]	opt_prop_part_agenda	WS Input
[in]	opt_prop_gas_agenda	WS Input
[in]	ppath_step_agenda	WS Input
[in]	p_grid	WS Input
[in]	lat_grid	WS Input
[in]	lon_grid	WS Input
[in]	z_field	WS Input
[in]	r_geoid	WS Input
[in]	z_surface	WS Input
[in]	t_field	WS Input
[in]	f_grid	WS Input
[in]	f_index	WS Input
[in]	doit_za_interp	WS Input

Definition at line 927 of file m_scatrte.cc.

References chk_atm_grids(), chk_atm_surface(), chk_if_increasing(), chk_not_empty(), chk_size(), cloud_fieldsCalc(), cloud_ppath_update3D(), is_size(), joker, ConstTensor6View::ncols(), ConstVectorView::nelem(), Array< base >::nelem(), out2, out3, and RAD2DEG.

Referenced by doit_i_fieldUpdateSeq3D_g().

void doit_scat_fieldCalc	(	Workspace &	ws,
		Tensor6 &	doit_scat_field,
		const Agenda &	pha_mat_spt_agenda,
		const Tensor6 &	doit_i_field,
		const Tensor4 &	pnd_field,
		const Tensor3 &	t_field,
		const Index &	atmosphere_dim,
		const ArrayOfIndex &	cloudbox_limits,
		const Vector &	scat_za_grid,
		const Vector &	scat_aa_grid,
		const Index &	doit_za_grid_size
	)

WORKSPACE METHOD: doit_scat_fieldCalc.

This method calculates the scattering integral field in the DOIT module.

The scattering integral field is generated by integrating the product of phase matrix and Stokes vector over all incident angles. For more information please refer to AUG.

The output of this method is *doit_scat_field* which is used in the radiative transfer part (*doit_i_fieldUpdateXXX*).

Author:

Sreerekha T.R.

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_scat_field	WS Output
[in]	pha_mat_spt_agenda	WS Input
[in]	doit_i_field	WS Input
[in]	pnd_field	WS Input
[in]	t_field	WS Input
[in]	atmosphere_dim	WS Input
[in]	cloudbox_limits	WS Input
[in]	scat_za_grid	WS Input
[in]	scat_aa_grid	WS Input
[in]	doit_za_grid_size	WS Input

Definition at line 1564 of file m_scatrte.cc.

References AngIntegrate_trapezoid_opti(), chk_not_empty(), is_size(), joker, ConstTensor4View::nbooks(), ConstTensor6View::ncols(), Array< base >::nelem(), ConstVectorView::nelem(), out2, out3, pha_mat_spt_agendaExecute(), and pha_matCalc().

Referenced by doit_scat_fieldCalc_g().

void doit_scat_fieldCalcLimb	(	Workspace &	ws,
		Tensor6 &	doit_scat_field,
		const Agenda &	pha_mat_spt_agenda,
		const Tensor6 &	doit_i_field,
		const Tensor4 &	pnd_field,
		const Tensor3 &	t_field,
		const Index &	atmosphere_dim,
		const ArrayOfIndex &	cloudbox_limits,
		const Vector &	scat_za_grid,
		const Vector &	scat_aa_grid,
		const Index &	doit_za_grid_size,
		const Index &	doit_za_interp
	)

WORKSPACE METHOD: doit_scat_fieldCalcLimb.

This method calculates the scattering integral field in the DOIT module (Limb).

The scattering integral field is the field generated by integrating the product of phase matrix and the Stokes vector over all incident angles.

The output of this method is the scattering integral field *doit_scat_field* which is used in the radiative transfer part (*doit_i_fieldUpdateXXX*). For limb simulations it makes sense to use different zenith angle grids for the scattering integral part and the RT part, because the latter part requires a much finer resolution about 90°. Taking an optimized grid for the RT part and an equidistant grid for the scattering integral part saves very much CPU time. This method uses the equidistant za_grid defined in doit_angular_gridsSet* and it should always be used for limb simulations.

For more information please refer to AUG.

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_scat_field	WS Output
[in]	pha_mat_spt_agenda	WS Input
[in]	doit_i_field	WS Input
[in]	pnd_field	WS Input
[in]	t_field	WS Input
[in]	atmosphere_dim	WS Input
[in]	cloudbox_limits	WS Input
[in]	scat_za_grid	WS Input
[in]	scat_aa_grid	WS Input
[in]	doit_za_grid_size	WS Input
[in]	doit_za_interp	WS Input

Definition at line 1860 of file m_scatrte.cc.

References AngIntegrate_trapezoid_opti(), chk_not_empty(), gridpos(), interp(), interp_poly(), interpweights(), is_size(), joker, ConstTensor4View::nbooks(), ConstTensor6View::ncols(), Array< base >::nelem(), ConstVectorView::nelem(), nlinspace(), out1, out2, out3, pha_mat_spt_agendaExecute(), and pha_matCalc().

Referenced by doit_scat_fieldCalcLimb_g().

void doit_za_grid_optCalc	(	Vector &	doit_za_grid_opt,
		const Tensor6 &	doit_i_field,
		const Vector &	scat_za_grid,
		const Index &	doit_za_interp,
		const Numeric &	acc
	)

WORKSPACE METHOD: doit_za_grid_optCalc.

Zenith angle grid optimization for scattering calculation.

This method optimizes the zenith angle grid. As input it requires a radiation field (*doit_i_field*) which is calculated on a very fine zenith angle grid (*scat_za_grid*). Based on this field zenith angle grid points are selected, such that the maximum difference between the radiation field represented on the very fine zenith angle grid and the radiation field represented on the optimized grid (*doit_za_grid_opt*) is less than the accuracy (*acc*) provided as a keyword. The accuracy must be given in %. Between the grid points theradiation field is interpolated linearly or polynomially depending on *doit_za_interp*.

Note: The method works only for a 1D atmosphere and for one frequency.

Author:

Claudia Emde

Parameters:

[out]	doit_za_grid_opt	WS Output
[in]	doit_i_field	WS Input
[in]	scat_za_grid	WS Input
[in]	doit_za_interp	WS Input
[in]	acc	Generic Input

Definition at line 2249 of file m_scatrte.cc.

References chk_size(), ConstTensor6View::ncols(), ConstVectorView::nelem(), ConstTensor6View::nvitrines(), and za_gridOpt().

Referenced by doit_za_grid_optCalc_g().

void doit_za_interpSet	(	Index &	doit_za_interp,
		const Index &	atmosphere_dim,
		const String &	interp_method
	)

WORKSPACE METHOD: doit_za_interpSet.

Define interpolation method for zenith angle dimension.

You can use this method to choose the interpolation method for interpolations in the zenith angle dimension. By default, linear interpolation is used.

Keyword: <br> interp_method - 'linear' or 'polynomial'

Author:

Claudia Emde

Parameters:

[out]	doit_za_interp	WS Output
[in]	atmosphere_dim	WS Input
[in]	interp_method	Generic Input

Definition at line 2297 of file m_scatrte.cc.

References chk_if_in_range().

Referenced by doit_za_interpSet_g().

void DoitAngularGridsSet	(	Index &	doit_za_grid_size,
		Vector &	scat_aa_grid,
		Vector &	scat_za_grid,
		const Index &	N_za_grid,
		const Index &	N_aa_grid,
		const String &	za_grid_opt_file
	)

WORKSPACE METHOD: DoitAngularGridsSet.

Set angular grids for DOIT calculation. In this method the angular grids for a DOIT calculation are specified. For down-looking geometries it is sufficient to define

N_za_grid: number of grid points in zenith angle grid <br> recommended value: 19 N_aa_grid: number of grid points in zenith angle grid <br> recommended value: 37

From these numbers equally spaced grids are created and stored in the WSVs *scat_za_grid* and *scat_aa_grid*.

For limb simulations it is important to use an optimized zenith angle grid with a very fine resolution about 90° for the RT calculations. Such a grid can be generated using *doit_za_grid_optCalc*. The filename of the optimized zenith angle grid can be given as a keyword. If a filename is given, the equidistant grid is taken for the calculation of the scattering integrals and the optimized grid is taken for the radiative transfer part. Otherwise, if no filename is specified ( za_grid_opt_file = "" ) the equidistant grid is taken for the calculation of the scattering integrals and for the RT calculations. This option makes sense for down-looking cases to speed up the calculation.

Author:

Claudia Emde

Parameters:

[out]	doit_za_grid_size	WS Output
[out]	scat_aa_grid	WS Output
[out]	scat_za_grid	WS Output
[in]	N_za_grid	Generic Input
[in]	N_aa_grid	Generic Input
[in]	za_grid_opt_file	Generic Input

Definition at line 71 of file m_scatrte.cc.

References nlinspace(), out1, and xml_read_from_file().

Referenced by DoitAngularGridsSet_g().

void DoitInit	(	Index &	scat_p_index,
		Index &	scat_lat_index,
		Index &	scat_lon_index,
		Index &	scat_za_index,
		Index &	scat_aa_index,
		Tensor6 &	doit_scat_field,
		Tensor6 &	doit_i_field,
		Index &	doit_za_interp,
		Index &	doit_is_initialized,
		const Index &	stokes_dim,
		const Index &	atmosphere_dim,
		const Vector &	scat_za_grid,
		const Vector &	scat_aa_grid,
		const Index &	doit_za_grid_size,
		const ArrayOfIndex &	cloudbox_limits,
		const ArrayOfSingleScatteringData &	scat_data_raw
	)

WORKSPACE METHOD: DoitInit.

Initialize variables for DOIT scattering calculations.

Before using the WSM *ScatteringDOIT*, please use this method to initialize the required WSVs.

Author:

Claudia Emde

Parameters:

[out]	scat_p_index	WS Output
[out]	scat_lat_index	WS Output
[out]	scat_lon_index	WS Output
[out]	scat_za_index	WS Output
[out]	scat_aa_index	WS Output
[out]	doit_scat_field	WS Output
[out]	doit_i_field	WS Output
[out]	doit_za_interp	WS Output
[out]	doit_is_initialized	WS Output
[in]	stokes_dim	WS Input
[in]	atmosphere_dim	WS Input
[in]	scat_za_grid	WS Input
[in]	scat_aa_grid	WS Input
[in]	doit_za_grid_size	WS Input
[in]	cloudbox_limits	WS Input
[in]	scat_data_raw	WS Input

Definition at line 1395 of file m_scatrte.cc.

References chk_if_in_range(), Array< base >::nelem(), ConstVectorView::nelem(), out1, and Tensor6::resize().

Referenced by DoitInit_g().

void DoitWriteIterationFields	(	const Index &	doit_iteration_counter,
		const Tensor6 &	doit_i_field,
		const ArrayOfIndex &	iterations
	)

WORKSPACE METHOD: DoitWriteIterationFields.

Write DOIT iteration fields.

This method writes intermediate iteration fields to xml-files which is useful to check the DOIT method. It can be interesting to look how the radiation fields (*doit_i_field*) behave. The method can be used as a part of convergence_test_agenda*.

The keyword 'iterations' includes the numbers of the iterations which should be stored, e.g., <br> 'iterations = [3, 6, 9]'. In this case the 3rd, 6th and 9th iterations are stored in the files 'doit_iteration_3.xml', 'doit_iteration_6.xml' ... <br> If a number is larger than the total number of iterations, this number is ignored.

If all iterations should be stored please set the keyword <br> 'iterations = [0]'.

Author:

Claudia Emde

Parameters:

[in]	doit_iteration_counter	WS Input
[in]	doit_i_field	WS Input
[in]	iterations	Generic Input

Definition at line 1527 of file m_scatrte.cc.

References Array< base >::nelem(), and xml_write_to_file().

Referenced by DoitWriteIterationFields_g().

void ScatteringDoit	(	Workspace &	ws,
		Tensor6 &	doit_i_field,
		Tensor7 &	scat_i_p,
		Tensor7 &	scat_i_lat,
		Tensor7 &	scat_i_lon,
		Tensor4 &	doit_i_field1D_spectrum,
		const Vector &	f_grid,
		const Agenda &	doit_mono_agenda,
		const Index &	doit_is_initialized
	)

WORKSPACE METHOD: ScatteringDoit.

This method executes *doit_mono_agenda* for each frequency in *f_grid*. The output is the radiation field inside the cloudbox (*doit_i_field*) and on the cloudbox boundary (*scat_i_p* (1D), scat_i_lat* and *scat_i_lon* (3D)).

Author:

Claudia Emde

Parameters:

[in,out]	ws	Workspace
[out]	doit_i_field	WS Output
[out]	scat_i_p	WS Output
[out]	scat_i_lat	WS Output
[out]	scat_i_lon	WS Output
[out]	doit_i_field1D_spectrum	WS Output
[in]	f_grid	WS Input
[in]	doit_mono_agenda	WS Input
[in]	doit_is_initialized	WS Input

Definition at line 2326 of file m_scatrte.cc.

References chk_if_increasing(), chk_not_empty(), doit_mono_agendaExecute(), ConstVectorView::nelem(), and out1.

Referenced by ScatteringDoit_g().

---

Variable Documentation

const Numeric PI

const Numeric RAD2DEG
