m_montecarlo.cc File Reference

Workspace functions for the solution of cloud-box radiative transfer by Monte Carlo methods. All of these functions refer to 3D calculations. More...

#include "messages.h"
#include "arts.h"
#include "ppath.h"
#include "matpackI.h"
#include "special_interp.h"
#include "check_input.h"
#include <stdexcept>
#include <cmath>
#include "rte.h"
#include "lin_alg.h"
#include "auto_md.h"
#include "logic.h"
#include "physics_funcs.h"
#include "xml_io.h"
#include "montecarlo.h"
#include "rng.h"
#include <ctime>
#include <fstream>
#include "mc_interp.h"
#include "math_funcs.h"

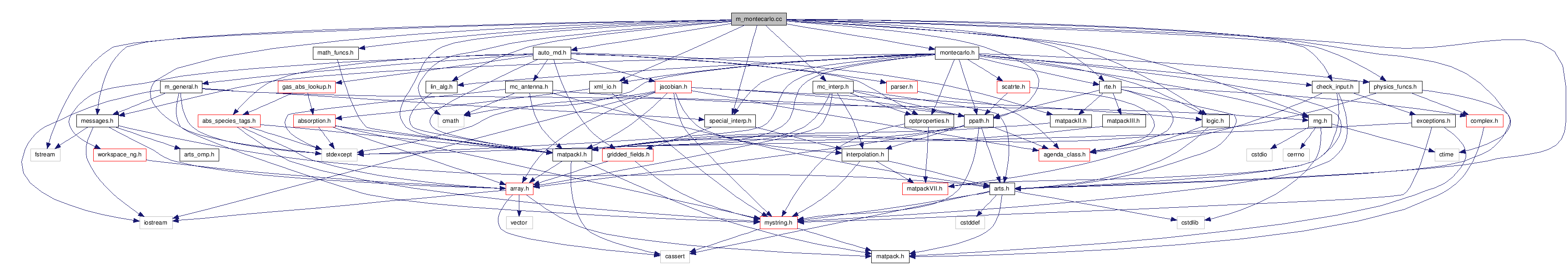

Include dependency graph for m_montecarlo.cc:

Go to the source code of this file.

Functions

void mc_IWP_cloud_opt_pathCalc (Workspace &ws, Numeric &mc_IWP, Numeric &mc_cloud_opt_path, Numeric &mc_IWP_error, Numeric &mc_cloud_opt_path_error, Index &mc_iteration_count, const MCAntenna &mc_antenna, const Matrix &sensor_pos, const Matrix &sensor_los, const Agenda &ppath_step_agenda, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &z_field, const Tensor3 &t_field, const Tensor4 &vmr_field, const ArrayOfIndex &cloudbox_limits, const Tensor4 &pnd_field, const ArrayOfSingleScatteringData &scat_data_mono, const Vector &particle_masses, const Index &mc_seed, const Index &max_iter)
 WORKSPACE METHOD: mc_IWP_cloud_opt_pathCalc.
void mc_antennaSetGaussian (MCAntenna &mc_antenna, const Numeric &za_sigma, const Numeric &aa_sigma)
 WORKSPACE METHOD: mc_antennaSetGaussian.
void mc_antennaSetGaussianByFWHM (MCAntenna &mc_antenna, const Numeric &za_fwhm, const Numeric &aa_fwhm)
 WORKSPACE METHOD: mc_antennaSetGaussianByFWHM.
void mc_antennaSetPencilBeam (MCAntenna &mc_antenna)
 WORKSPACE METHOD: mc_antennaSetPencilBeam.
void MCGeneral (Workspace &ws, Vector &y, Index &mc_iteration_count, Vector &mc_error, Tensor3 &mc_points, const MCAntenna &mc_antenna, const Vector &f_grid, const Index &f_index, const Matrix &sensor_pos, const Matrix &sensor_los, const Index &stokes_dim, const Agenda &iy_space_agenda, const Agenda &surface_prop_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &abs_scalar_gas_agenda, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &t_field, const Tensor4 &vmr_field, const ArrayOfIndex &cloudbox_limits, const Tensor4 &pnd_field, const ArrayOfSingleScatteringData &scat_data_mono, const Index &mc_seed, const String &y_unit, const Numeric &std_err, const Index &max_time, const Index &max_iter, const Index &z_field_is_1D)
 WORKSPACE METHOD: MCGeneral.
void MCIPA (Workspace &ws, Vector &y, Index &mc_iteration_count, Vector &mc_error, Tensor3 &mc_points, const MCAntenna &mc_antenna, const Vector &f_grid, const Index &f_index, const Matrix &sensor_pos, const Matrix &sensor_los, const Index &stokes_dim, const Agenda &iy_space_agenda, const Agenda &surface_prop_agenda, const Agenda &opt_prop_gas_agenda, const Agenda &abs_scalar_gas_agenda, const Agenda &ppath_step_agenda, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const Tensor3 &t_field, const Tensor4 &vmr_field, const ArrayOfIndex &cloudbox_limits, const Tensor4 &pnd_field, const ArrayOfSingleScatteringData &scat_data_mono, const Index &mc_seed, const String &y_unit, const Numeric &std_err, const Index &max_time, const Index &max_iter, const Index &z_field_is_1D)
 WORKSPACE METHOD: MCIPA.
void MCSetIncomingEmpty (SLIData2 &mc_incoming)
void MCSetSeedFromTime (Index &mc_seed)
 WORKSPACE METHOD: MCSetSeedFromTime.
void ScatteringMonteCarlo (Workspace &ws, Ppath &ppath, Ppath &ppath_step, Vector &mc_error, Index &mc_iteration_count, Vector &rte_pos, Vector &rte_los, Matrix &iy, Numeric &rte_pressure, Numeric &rte_temperature, Vector &rte_vmr_list, Tensor3 &ext_mat, Matrix &abs_vec, const Agenda &ppath_step_agenda, const Index &atmosphere_dim, const Vector &p_grid, const Vector &lat_grid, const Vector &lon_grid, const Tensor3 &z_field, const Matrix &r_geoid, const Matrix &z_surface, const ArrayOfIndex &cloudbox_limits, const Index &stokes_dim, const Agenda &rte_agenda, const Agenda &iy_space_agenda, const Agenda &surface_prop_agenda, const Tensor3 &t_field, const Vector &f_grid, const Agenda &opt_prop_gas_agenda, const Agenda &abs_scalar_gas_agenda, const Tensor4 &vmr_field, const ArrayOfSingleScatteringData &scat_data_mono, const Tensor4 &pnd_field, const Index &mc_seed, const Index &f_index, const SLIData2 &mc_incoming, const Numeric &std_err, const Index &max_time, const Index &max_iter, const Index &incoming_lookup, const Index &z_field_is_1D)
void rte_posShift (Vector &rte_pos, Vector &rte_los, GridPos &rte_gp_p, GridPos &rte_gp_lat, GridPos &rte_gp_lon, const Ppath &ppath, const Index &atmosphere_dim)
 WORKSPACE METHOD: rte_posShift.

Variables

const Numeric DEG2RAD
const Numeric RAD2DEG
const Numeric PI
const Numeric BOLTZMAN_CONST
const Numeric SPEED_OF_LIGHT

Detailed Description

Workspace functions for the solution of cloud-box radiative transfer by Monte Carlo methods. All of these functions refer to 3D calculations.

Author:
Cory Davis <cory@met.ed.ac.uk>
Date:
2003-06-19
These functions are listed in the doxygen documentation as entries of the file auto_md.h.

Definition in file m_montecarlo.cc.

Function Documentation

void mc_antennaSetGaussian ( MCAntenna &  mc_antenna,
const Numeric &  za_sigma,
const Numeric &  aa_sigma
)

WORKSPACE METHOD: mc_antennaSetGaussian.

Makes mc_antenna (used by MCGeneral) a 2D Gaussian pattern.

The gaussian antenna pattern is determined by the keyword parameters za_sigma, and aa_sigma, which represent the standard deviations in the uncorrelated bivariate normal distribution

Author:
Cory Davis
Parameters:
[out] mc_antenna WS Output
[in] za_sigma Generic Input
[in] aa_sigma Generic Input

Definition at line 154 of file m_montecarlo.cc.

References MCAntenna::set_gaussian().

Referenced by mc_antennaSetGaussian_g().

void mc_antennaSetGaussianByFWHM ( MCAntenna &  mc_antenna,
const Numeric &  za_fwhm,
const Numeric &  aa_fwhm
)

WORKSPACE METHOD: mc_antennaSetGaussianByFWHM.

Makes mc_antenna (used by MCGeneral) a 2D Gaussian pattern.

The gaussian antenna pattern is determined by the keyword parameters za_fwhm, and aa_fwhm, which represent the full width half maximum (FWHM) of the antenna response, in the zenith and azimuthal planes.

Author:
Cory Davis
Parameters:
[out] mc_antenna WS Output
[in] za_fwhm Generic Input
[in] aa_fwhm Generic Input

Definition at line 166 of file m_montecarlo.cc.

References MCAntenna::set_gaussian_fwhm().

Referenced by mc_antennaSetGaussianByFWHM_g().

void mc_antennaSetPencilBeam ( MCAntenna &  mc_antenna  )

WORKSPACE METHOD: mc_antennaSetPencilBeam.

Makes mc_antenna (used by MCGeneral) a pencil beam.

This WSM makes the subsequent MCGeneral WSM perform pencil beam RT calculations.

Author:
Cory Davis
Parameters:
[out] mc_antenna WS Output

Definition at line 178 of file m_montecarlo.cc.

References MCAntenna::set_pencil_beam().

Referenced by mc_antennaSetPencilBeam_g().

void mc_IWP_cloud_opt_pathCalc ( Workspace &  ws,
Numeric &  mc_IWP,
Numeric &  mc_cloud_opt_path,
Numeric &  mc_IWP_error,
Numeric &  mc_cloud_opt_path_error,
Index &  mc_iteration_count,
const MCAntenna &  mc_antenna,
const Matrix &  sensor_pos,
const Matrix &  sensor_los,
const Agenda &  ppath_step_agenda,
const Vector &  p_grid,
const Vector &  lat_grid,
const Vector &  lon_grid,
const Matrix &  r_geoid,
const Matrix &  z_surface,
const Tensor3 &  z_field,
const Tensor3 &  t_field,
const Tensor4 &  vmr_field,
const ArrayOfIndex &  cloudbox_limits,
const Tensor4 &  pnd_field,
const ArrayOfSingleScatteringData &  scat_data_mono,
const Vector &  particle_masses,
const Index &  mc_seed,
const Index &  max_iter
)

WORKSPACE METHOD: mc_IWP_cloud_opt_pathCalc.

Calculates the FOV averaged ice water path and cloud optical path for a given viewing direction

Author:
Cory Davis
Parameters:
[in,out] ws Workspace
[out] mc_IWP WS Output
[out] mc_cloud_opt_path WS Output
[out] mc_IWP_error WS Output
[out] mc_cloud_opt_path_error WS Output
[out] mc_iteration_count WS Output
[in] mc_antenna WS Input
[in] sensor_pos WS Input
[in] sensor_los WS Input
[in] ppath_step_agenda WS Input
[in] p_grid WS Input
[in] lat_grid WS Input
[in] lon_grid WS Input
[in] r_geoid WS Input
[in] z_surface WS Input
[in] z_field WS Input
[in] t_field WS Input
[in] vmr_field WS Input
[in] cloudbox_limits WS Input
[in] pnd_field WS Input
[in] scat_data_mono WS Input
[in] particle_masses WS Input
[in] mc_seed WS Input
[in] max_iter Generic Input

Definition at line 73 of file m_montecarlo.cc.

References ATYPE_PENCIL_BEAM, MCAntenna::draw_los(), MCAntenna::get_type(), iwp_cloud_opt_pathCalc(), joker, and Rng::seed().

Referenced by mc_IWP_cloud_opt_pathCalc_g().

void MCGeneral ( Workspace &  ws,
Vector &  y,
Index &  mc_iteration_count,
Vector &  mc_error,
Tensor3 &  mc_points,
const MCAntenna &  mc_antenna,
const Vector &  f_grid,
const Index &  f_index,
const Matrix &  sensor_pos,
const Matrix &  sensor_los,
const Index &  stokes_dim,
const Agenda &  iy_space_agenda,
const Agenda &  surface_prop_agenda,
const Agenda &  opt_prop_gas_agenda,
const Agenda &  abs_scalar_gas_agenda,
const Vector &  p_grid,
const Vector &  lat_grid,
const Vector &  lon_grid,
const Tensor3 &  z_field,
const Matrix &  r_geoid,
const Matrix &  z_surface,
const Tensor3 &  t_field,
const Tensor4 &  vmr_field,
const ArrayOfIndex &  cloudbox_limits,
const Tensor4 &  pnd_field,
const ArrayOfSingleScatteringData &  scat_data_mono,
const Index &  mc_seed,
const String &  y_unit,
const Numeric &  mc_std_err,
const Index &  mc_max_time,
const Index &  mc_max_iter,
const Index &  mc_z_field_is_1D
)

WORKSPACE METHOD: MCGeneral.

A generalised 3D reversed Monte Carlo radiative algorithm, that allows for 2D antenna patterns, surface reflection and arbitrary sensor positions.

The main output variables *y* and *mc_error* represent the Stokes vector integrated over the antenna function, and the estimated error in this vector respectively.

The WSV *mc_max_iter* describes the number of `photons' used in the simulation (more photons means smaller *mc_error*). mc_std_err* is the desired value of mc_error, and *mc_max_time* is the maximum allowed number of seconds for MCGeneral. MCGeneral will terminate once any of the max_iter, std_err, max_time criteria are met. If negative values are given for these parameters then it is ignored.

Negative values of mc_seed seed the random number generator according to system time, positive rng_seed values are taken literally.

Author:
Cory Davis
Parameters:
[in,out] ws Workspace
[out] y WS Output
[out] mc_iteration_count WS Output
[out] mc_error WS Output
[out] mc_points WS Output
[in] mc_antenna WS Input
[in] f_grid WS Input
[in] f_index WS Input
[in] sensor_pos WS Input
[in] sensor_los WS Input
[in] stokes_dim WS Input
[in] iy_space_agenda WS Input
[in] surface_prop_agenda WS Input
[in] opt_prop_gas_agenda WS Input
[in] abs_scalar_gas_agenda WS Input
[in] p_grid WS Input
[in] lat_grid WS Input
[in] lon_grid WS Input
[in] z_field WS Input
[in] r_geoid WS Input
[in] z_surface WS Input
[in] t_field WS Input
[in] vmr_field WS Input
[in] cloudbox_limits WS Input
[in] pnd_field WS Input
[in] scat_data_mono WS Input
[in] mc_seed WS Input
[in] y_unit WS Input
[in] mc_std_err WS Input
[in] mc_max_time WS Input
[in] mc_max_iter WS Input
[in] mc_z_field_is_1D WS Input

Definition at line 187 of file m_montecarlo.cc.

References BOLTZMAN_CONST, Rng::draw(), MCAntenna::draw_los(), findZ11max(), Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, id_mat(), invrayjean(), is_anyptype30(), iy_space_agendaExecute(), joker, mcPathTraceGeneral(), mult(), ConstTensor4View::nbooks(), ConstVectorView::nelem(), Ppath::np, ConstMatrixView::nrows(), planck(), q, Tensor3::resize(), Vector::resize(), Sample_los(), Rng::seed(), SPEED_OF_LIGHT, and surface_prop_agendaExecute().

Referenced by MCGeneral_g(), and RteCalcMC().

void MCIPA ( Workspace &  ws,
Vector &  y,
Index &  mc_iteration_count,
Vector &  mc_error,
Tensor3 &  mc_points,
const MCAntenna &  mc_antenna,
const Vector &  f_grid,
const Index &  f_index,
const Matrix &  sensor_pos,
const Matrix &  sensor_los,
const Index &  stokes_dim,
const Agenda &  iy_space_agenda,
const Agenda &  surface_prop_agenda,
const Agenda &  opt_prop_gas_agenda,
const Agenda &  abs_scalar_gas_agenda,
const Agenda &  ppath_step_agenda,
const Vector &  p_grid,
const Vector &  lat_grid,
const Vector &  lon_grid,
const Tensor3 &  z_field,
const Matrix &  r_geoid,
const Matrix &  z_surface,
const Tensor3 &  t_field,
const Tensor4 &  vmr_field,
const ArrayOfIndex &  cloudbox_limits,
const Tensor4 &  pnd_field,
const ArrayOfSingleScatteringData &  scat_data_mono,
const Index &  mc_seed,
const String &  y_unit,
const Numeric &  mc_std_err,
const Index &  mc_max_time,
const Index &  mc_max_iter,
const Index &  mc_z_field_is_1D
)

WORKSPACE METHOD: MCIPA.

A specialised 3D reversed Monte Carlo radiative algorithm, that mimics independent pixel appoximation simulations. Probably temporary.

Author:
Cory Davis
Parameters:
[in,out] ws Workspace
[out] y WS Output
[out] mc_iteration_count WS Output
[out] mc_error WS Output
[out] mc_points WS Output
[in] mc_antenna WS Input
[in] f_grid WS Input
[in] f_index WS Input
[in] sensor_pos WS Input
[in] sensor_los WS Input
[in] stokes_dim WS Input
[in] iy_space_agenda WS Input
[in] surface_prop_agenda WS Input
[in] opt_prop_gas_agenda WS Input
[in] abs_scalar_gas_agenda WS Input
[in] ppath_step_agenda WS Input
[in] p_grid WS Input
[in] lat_grid WS Input
[in] lon_grid WS Input
[in] z_field WS Input
[in] r_geoid WS Input
[in] z_surface WS Input
[in] t_field WS Input
[in] vmr_field WS Input
[in] cloudbox_limits WS Input
[in] pnd_field WS Input
[in] scat_data_mono WS Input
[in] mc_seed WS Input
[in] y_unit WS Input
[in] mc_std_err WS Input
[in] mc_max_time WS Input
[in] mc_max_iter WS Input
[in] mc_z_field_is_1D WS Input

Definition at line 445 of file m_montecarlo.cc.

References Ppath::background, BOLTZMAN_CONST, Rng::draw(), MCAntenna::draw_los(), findZ11max(), Ppath::geom_tan_pos, Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos(), id_mat(), invrayjean(), is_anyptype30(), iy_space_agendaExecute(), joker, mcPathTraceIPA(), mult(), ConstTensor4View::nbooks(), ConstVectorView::nelem(), Ppath::np, ConstMatrixView::nrows(), planck(), ppath_calc(), q, Tensor3::resize(), Vector::resize(), Sample_los(), Rng::seed(), SPEED_OF_LIGHT, and surface_prop_agendaExecute().

Referenced by MCIPA_g().

void MCSetIncomingEmpty ( SLIData2 &  mc_incoming  )

Definition at line 725 of file m_montecarlo.cc.

References Vector::resize(), SLIData2::x1a, SLIData2::x2a, and SLIData2::ya.

void MCSetSeedFromTime ( Index &  mc_seed  )

WORKSPACE METHOD: MCSetSeedFromTime.

Sets the value of mc_seed from system time

Author:
Cory Davis
Parameters:
[out] mc_seed WS Output

Definition at line 737 of file m_montecarlo.cc.

Referenced by MCSetSeedFromTime_g(), and RteCalcMC().

void rte_posShift ( Vector &  rte_pos,
Vector &  rte_los,
GridPos &  rte_gp_p,
GridPos &  rte_gp_lat,
GridPos &  rte_gp_lon,
const Ppath &  ppath,
const Index &  atmosphere_dim
)

WORKSPACE METHOD: rte_posShift.

Shifts rte_pos and rte_los, and rte_gp_XXX to the end of ppath.

Author:
Cory Davis
Parameters:
[out] rte_pos WS Output
[out] rte_los WS Output
[out] rte_gp_p WS Output
[out] rte_gp_lat WS Output
[out] rte_gp_lon WS Output
[in] ppath WS Input
[in] atmosphere_dim WS Input

Definition at line 1068 of file m_montecarlo.cc.

References Ppath::gp_lat, Ppath::gp_lon, Ppath::gp_p, gridpos_copy(), joker, Ppath::los, ConstMatrixView::ncols(), Ppath::np, Ppath::pos, and Vector::resize().

Referenced by rte_posShift_g().

void ScatteringMonteCarlo ( Workspace &  ws,
Ppath &  ppath,
Ppath &  ppath_step,
Vector &  mc_error,
Index &  mc_iteration_count,
Vector &  rte_pos,
Vector &  rte_los,
Matrix &  iy,
Numeric &  rte_pressure,
Numeric &  rte_temperature,
Vector &  rte_vmr_list,
Tensor3 &  ext_mat,
Matrix &  abs_vec,
const Agenda &  ppath_step_agenda,
const Index &  atmosphere_dim,
const Vector &  p_grid,
const Vector &  lat_grid,
const Vector &  lon_grid,
const Tensor3 &  z_field,
const Matrix &  r_geoid,
const Matrix &  z_surface,
const ArrayOfIndex &  cloudbox_limits,
const Index &  stokes_dim,
const Agenda &  rte_agenda,
const Agenda &  iy_space_agenda,
const Agenda &  surface_prop_agenda,
const Tensor3 &  t_field,
const Vector &  f_grid,
const Agenda &  opt_prop_gas_agenda,
const Agenda &  abs_scalar_gas_agenda,
const Tensor4 &  vmr_field,
const ArrayOfSingleScatteringData &  scat_data_mono,
const Tensor4 &  pnd_field,
const Index &  mc_seed,
const Index &  f_index,
const SLIData2 &  mc_incoming,
const Numeric &  std_err,
const Index &  max_time,
const Index &  max_iter,
const Index &  incoming_lookup,
const Index &  z_field_is_1D
)

Definition at line 746 of file m_montecarlo.cc.

References BOLTZMAN_CONST, Cloudbox_ppath_rteCalc(), Rng::draw(), findZ11max(), SLIData2::interpolate(), interpTArray(), is_anyptype30(), joker, mcPathTrace(), montecarloGetIncoming(), mult(), ConstTensor4View::nbooks(), ConstVectorView::nelem(), Array< base >::nelem(), Ppath::np, opt_depth_calc(), planck(), q, Vector::resize(), Sample_los(), Sample_ppathlengthLOS(), Rng::seed(), and SPEED_OF_LIGHT.

Variable Documentation

const Numeric BOLTZMAN_CONST

const Numeric DEG2RAD

const Numeric PI

const Numeric RAD2DEG

const Numeric SPEED_OF_LIGHT

Generated on Mon Mar 23 14:06:41 2009 for ARTS by  doxygen 1.5.6
