m_batch.cc File Reference

Workspace functions for doing batch calculations. More...

#include <cmath>
#include "arts.h"
#include "arts_omp.h"
#include "auto_md.h"
#include "math_funcs.h"
#include "physics_funcs.h"
#include "xml_io.h"

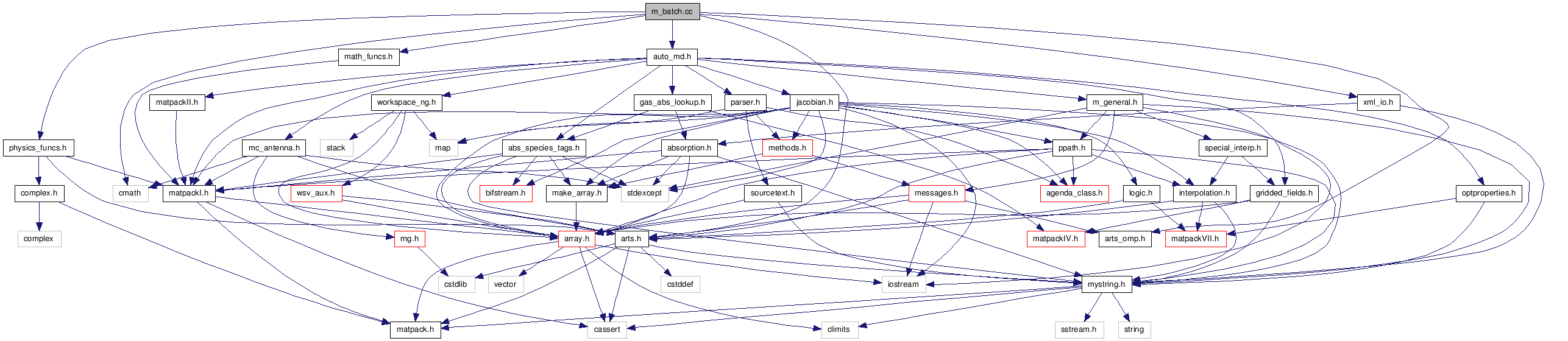

Include dependency graph for m_batch.cc:

Go to the source code of this file.

Functions

void ForLoop (Workspace &ws, const Agenda &forloop_agenda, const Index &start, const Index &stop, const Index &step)

WORKSPACE METHOD: ForLoop.

void VectorExtractFromMatrix (Vector &v, const Matrix &m, const Index &index, const String &direction)

WORKSPACE METHOD: VectorExtractFromMatrix.

void ybatchCalc_implementation (Workspace &ws, Matrix &ybatch, const Index &ybatch_n, const Agenda &ybatch_calc_agenda, const Index &robust)

void ybatchCalc (Workspace &ws, Matrix &ybatch, const Index &ybatch_n, const Agenda &ybatch_calc_agenda, const Index &robust)

WORKSPACE METHOD: ybatchCalc.

void ybatchMetProfiles (Workspace &ws, Matrix &ybatch, const ArrayOfArrayOfSpeciesTag &abs_species, const Agenda &met_profile_calc_agenda, const Vector &f_grid, const Matrix &met_amsu_data, const Matrix &sensor_pos, const Matrix &r_geoid, const Vector &lat_grid, const Vector &lon_grid, const Index &atmosphere_dim, const ArrayOfSingleScatteringData &scat_data_raw, const Index &nelem_p_grid, const String &met_profile_path, const String &met_profile_pnd_path)

WORKSPACE METHOD: ybatchMetProfiles.

void ybatchMetProfilesClear (Workspace &ws, Matrix &ybatch, const ArrayOfArrayOfSpeciesTag &abs_species, const Agenda &met_profile_calc_agenda, const Vector &f_grid, const Matrix &met_amsu_data, const Matrix &sensor_pos, const Matrix &r_geoid, const Index &nelem_p_grid, const String &met_profile_path)

WORKSPACE METHOD: ybatchMetProfilesClear.

void ybatchUnit (Matrix &ybatch, const String &y_unit, const Vector &y_f)

WORKSPACE METHOD: ybatchUnit.

Variables

const Numeric PI

const Numeric DEG2RAD

const Numeric RAD2DEG

const Index GFIELD3_P_GRID

Detailed Description

Workspace functions for doing batch calculations.

Author:: Patrick Eriksson <Patrick.Eriksson@rss.chalmers.se>

Date:: 2004-09-15

These functions are listed in the doxygen documentation as entries of the file auto_md.h.

Definition in file m_batch.cc.

Function Documentation

void ForLoop	(	Workspace &	ws,
		const Agenda &	forloop_agenda,
		const Index &	start,
		const Index &	stop,
		const Index &	step
	)

WORKSPACE METHOD: ForLoop.

A simple for loop.

This method is handy when you quickly want to test out a calculation with a set of different settings.

It does a for loop from start to stop in steps of step. (Who would have guessed that.) For each iteration, the agenda *forloop_agenda* is executed. Inside the agenda, the variable *forloop_index* is available as index counter.

There are no other inputs to *forloop_agenda*, and also no outputs. That means, if you want to get any results out of this loop, you have to save it to files (for example with *WriteXMLIndexed*), since variables used inside the agenda will only be local.

Note that this kind of for loop is not parallel.

The method is intended for simple testing, not as a replacement of ybatchCalc*. However, it is compatible with *ybatchCalc*, in the sense that *ybatchCalc* may occur inside *forloop_agenda*.

Author:: Stefan Buehler

Parameters:

`[in,out]`	ws	Workspace
`[in]`	forloop_agenda	WS Input
`[in]`	start	Generic Input
`[in]`	stop	Generic Input
`[in]`	step	Generic Input

Definition at line 67 of file m_batch.cc.

References forloop_agendaExecute(), and out1.

Referenced by ForLoop_g().

void VectorExtractFromMatrix	(	Vector &	gout1,
		const Matrix &	gin1,
		const Index &	gin2,
		const String &	direction
	)

WORKSPACE METHOD: VectorExtractFromMatrix.

Extract a Vector from a Matrix.

Copies row or column with given Index from input Matrix variable to create output Vector.

Keywords: direction : Must be either *row* or *column*.

Author:: Patrick Eriksson, Oliver Lemke, Stefan Buehler

Parameters:

`[out]`	gout1	Generic output
`[in]`	gin1	Generic Input
`[in]`	gin2	Generic Input
`[in]`	direction	Generic Input

Definition at line 90 of file m_batch.cc.

References joker, ConstMatrixView::ncols(), ConstMatrixView::nrows(), and Vector::resize().

Referenced by VectorExtractFromMatrix_g().

void ybatchCalc	(	Workspace &	ws,
		Matrix &	ybatch,
		const Index &	ybatch_n,
		const Agenda &	ybatch_calc_agenda,
		const Index &	robust
	)

WORKSPACE METHOD: ybatchCalc.

Performs batch calculations.

The method performs the following: 1. Sets *ybatch_index* = 0. 2. Performs a-d until *ybatch_index* = *ybatch_n*. a. Executes *ybatch_calc_agenda*. b. If *ybatch_index* = 0, resizes *ybatch* based on *ybatch_n* and length of *y*. c. Copies *y* to column *ybatch_index* of *ybatch*. d. Adds 1 to *ybatch_index*.

This means that, beside the *ybatch_calc_agenda*, the WSV ybatch_n* must be set before calling this method. Further, ybatch_calc_agenda* is expected to produce a spectrum and should accordingly include a call of *RteCalc* (or a similar method).

An agenda that calculates spectra for different temperature profiles could look like this:

AgendaSet(ybatch_calc_agenda){ Extract(t_field,tensor4_1,ybatch_index){} RteCalc{} }

See the user guide for further practical examples.

Keywords: robust : a flag with value 1 or 0. If set to one, the batch calculation will continue, even if individual jobs fail. In that case, a warning message is written to screen and file (out1 output stream), and ybatch for the failed job is set to -1. The robust behavior does only work properly if you have compiled the program without OpenMP! (Use the configure option "--disable-vectorize".)

Author:: Patrick Eriksson, Stefan Buehler

Parameters:

`[in,out]`	ws	Workspace
`[out]`	ybatch	WS Output
`[in]`	ybatch_n	WS Input
`[in]`	ybatch_calc_agenda	WS Input
`[in]`	robust	Generic Input (Default: "0")

Definition at line 242 of file m_batch.cc.

References out2, and ybatchCalc_implementation().

Referenced by ybatchCalc_g().

void ybatchCalc_implementation	(	Workspace &	ws,
		Matrix &	ybatch,
		const Index &	ybatch_n,
		const Agenda &	ybatch_calc_agenda,
		const Index &	robust
	)

Definition at line 140 of file m_batch.cc.

References exit_or_rethrow(), joker, ConstVectorView::nelem(), out0, out2, Matrix::resize(), and ybatch_calc_agendaExecute().

Referenced by ybatchCalc().

void ybatchMetProfiles	(	Workspace &	ws,
		Matrix &	ybatch,
		const ArrayOfArrayOfSpeciesTag &	abs_species,
		const Agenda &	met_profile_calc_agenda,
		const Vector &	f_grid,
		const Matrix &	met_amsu_data,
		const Matrix &	sensor_pos,
		const Matrix &	r_geoid,
		const Vector &	lat_grid,
		const Vector &	lon_grid,
		const Index &	atmosphere_dim,
		const ArrayOfSingleScatteringData &	scat_data_raw,
		const Index &	nelem_p_grid,
		const String &	met_profile_path,
		const String &	met_profile_pnd_path
	)

WORKSPACE METHOD: ybatchMetProfiles.

This method is used for simulating ARTS for metoffice model fields This method reads in *met_amsu_data* which contains the lat-lon of the metoffice profile files as a Matrix. It then loops over the number of profiles and corresponding to each longitude create the appropriate profile basename. Then, Corresponding to each basename we have temperature field, altitude field, humidity field and particle number density field. The temperature field and altitude field are stored in the same dimensions as *t_field_raw* and *z_field_raw*. The oxygen and nitrogen VMRs are set to constant values of 0.209 and 0.782, respectively and are used along with humidity field to generate *vmr_field_raw*.

The three fields *t_field_raw*, *z_field_raw*, and *vmr_field_raw* are given as input to *met_profile_calc_agenda* which is called in this method. See documentation of WSM *met_profile_calc_agenda* for more information on this agenda.

The method also converts satellite zenith angle to appropriate sensor_los*. It also sets the *p_grid* and *cloudbox_limits* from the profiles inside the function

Author:: Sreerekha T.R.

Parameters:

`[in,out]`	ws	Workspace
`[out]`	ybatch	WS Output
`[in]`	abs_species	WS Input
`[in]`	met_profile_calc_agenda	WS Input
`[in]`	f_grid	WS Input
`[in]`	met_amsu_data	WS Input
`[in]`	sensor_pos	WS Input
`[in]`	r_geoid	WS Input
`[in]`	lat_grid	WS Input
`[in]`	lon_grid	WS Input
`[in]`	atmosphere_dim	WS Input
`[in]`	scat_data_raw	WS Input
`[in]`	nelem_p_grid	Generic Input
`[in]`	met_profile_path	Generic Input
`[in]`	met_profile_pnd_path	Generic Input

Definition at line 268 of file m_batch.cc.

References abs, cloudboxSetManually(), DEG2RAD, GField::get_numeric_grid(), GFIELD3_P_GRID, joker, met_profile_calc_agendaExecute(), ConstVectorView::nelem(), Array< base >::nelem(), ConstMatrixView::nrows(), RAD2DEG, Vector::resize(), Matrix::resize(), VectorNLogSpace(), and xml_read_from_file().

Referenced by ybatchMetProfiles_g().

void ybatchMetProfilesClear	(	Workspace &	ws,
		Matrix &	ybatch,
		const ArrayOfArrayOfSpeciesTag &	abs_species,
		const Agenda &	met_profile_calc_agenda,
		const Vector &	f_grid,
		const Matrix &	met_amsu_data,
		const Matrix &	sensor_pos,
		const Matrix &	r_geoid,
		const Index &	nelem_p_grid,
		const String &	met_profile_path
	)

WORKSPACE METHOD: ybatchMetProfilesClear.

This method is used for simulating ARTS for metoffice model fields for clear sky conditions.

This method reads in *met_amsu_data* which contains the lat-lon of the metoffice profile files as a Matrix. It then loops over the number of profiles and corresponding to each longitude create the appropriate profile basename. Then, Corresponding to each basename we have temperature field, altitude field, humidity field and particle number density field. The temperature field and altitude field are stored in the same dimensions as *t_field_raw* and *z_field_raw*. The oxygen and nitrogen VMRs are set to constant values of 0.209 and 0.782, respectively and are used along with humidity field to generate *vmr_field_raw*.

The three fields *t_field_raw*, *z_field_raw*, and *vmr_field_raw* are given as input to *met_profile_calc_agenda* which is called in this method. See documentation of WSM *met_profile_calc_agenda* for more information on this agenda.

The method also converts satellite zenith angle to appropriate sensor_los*. It also sets the *p_grid* and *cloudbox_limits* from the profiles inside the function

Author:: Seerekha T.R.

Parameters:

`[in,out]`	ws	Workspace
`[out]`	ybatch	WS Output
`[in]`	abs_species	WS Input
`[in]`	met_profile_calc_agenda	WS Input
`[in]`	f_grid	WS Input
`[in]`	met_amsu_data	WS Input
`[in]`	sensor_pos	WS Input
`[in]`	r_geoid	WS Input
`[in]`	nelem_p_grid	Generic Input
`[in]`	met_profile_path	Generic Input

Definition at line 493 of file m_batch.cc.

References abs, GField::get_numeric_grid(), GFIELD3_P_GRID, joker, met_profile_calc_agendaExecute(), ConstVectorView::nelem(), Array< base >::nelem(), ConstMatrixView::nrows(), PI, Matrix::resize(), Vector::resize(), VectorNLogSpace(), xml_read_from_file(), and xml_write_to_file().

Referenced by ybatchMetProfilesClear_g().

void ybatchUnit	(	Matrix &	ybatch,
		const String &	y_unit,
		const Vector &	y_f
	)

WORKSPACE METHOD: ybatchUnit.

Conversion of *ybatch* to other spectral units.

As *yUnit* but operates on *ybatch*.

Author:: Patrick Eriksson

Parameters:

`[out]`	ybatch	WS Output
`[in]`	y_unit	WS Input
`[in]`	y_f	WS Input

Definition at line 656 of file m_batch.cc.

References invplanck(), invrayjean(), ConstMatrixView::ncols(), ConstVectorView::nelem(), and ConstMatrixView::nrows().

Referenced by jacobianUnit(), and ybatchUnit_g().

Variable Documentation

const Numeric DEG2RAD

const Index GFIELD3_P_GRID

const Numeric PI

const Numeric RAD2DEG


Functions
void	ForLoop (Workspace &ws, const Agenda &forloop_agenda, const Index &start, const Index &stop, const Index &step)
	WORKSPACE METHOD: ForLoop.
void	VectorExtractFromMatrix (Vector &v, const Matrix &m, const Index &index, const String &direction)
	WORKSPACE METHOD: VectorExtractFromMatrix.
void	ybatchCalc_implementation (Workspace &ws, Matrix &ybatch, const Index &ybatch_n, const Agenda &ybatch_calc_agenda, const Index &robust)
void	ybatchCalc (Workspace &ws, Matrix &ybatch, const Index &ybatch_n, const Agenda &ybatch_calc_agenda, const Index &robust)
	WORKSPACE METHOD: ybatchCalc.
void	ybatchMetProfiles (Workspace &ws, Matrix &ybatch, const ArrayOfArrayOfSpeciesTag &abs_species, const Agenda &met_profile_calc_agenda, const Vector &f_grid, const Matrix &met_amsu_data, const Matrix &sensor_pos, const Matrix &r_geoid, const Vector &lat_grid, const Vector &lon_grid, const Index &atmosphere_dim, const ArrayOfSingleScatteringData &scat_data_raw, const Index &nelem_p_grid, const String &met_profile_path, const String &met_profile_pnd_path)
	WORKSPACE METHOD: ybatchMetProfiles.
void	ybatchMetProfilesClear (Workspace &ws, Matrix &ybatch, const ArrayOfArrayOfSpeciesTag &abs_species, const Agenda &met_profile_calc_agenda, const Vector &f_grid, const Matrix &met_amsu_data, const Matrix &sensor_pos, const Matrix &r_geoid, const Index &nelem_p_grid, const String &met_profile_path)
	WORKSPACE METHOD: ybatchMetProfilesClear.
void	ybatchUnit (Matrix &ybatch, const String &y_unit, const Vector &y_f)
	WORKSPACE METHOD: ybatchUnit.
Variables
const Numeric	PI
const Numeric	DEG2RAD
const Numeric	RAD2DEG
const Index	GFIELD3_P_GRID
