gridded_fields.h File Reference

Reading routines for gridded fields. More...

#include "matpackIV.h"
#include "array.h"
#include "mystring.h"

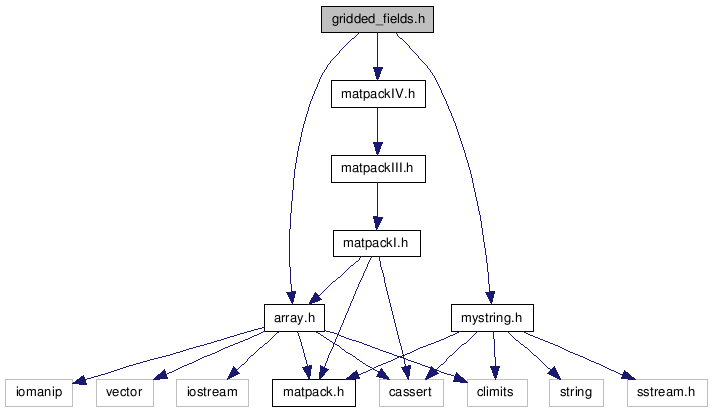

Include dependency graph for gridded_fields.h:

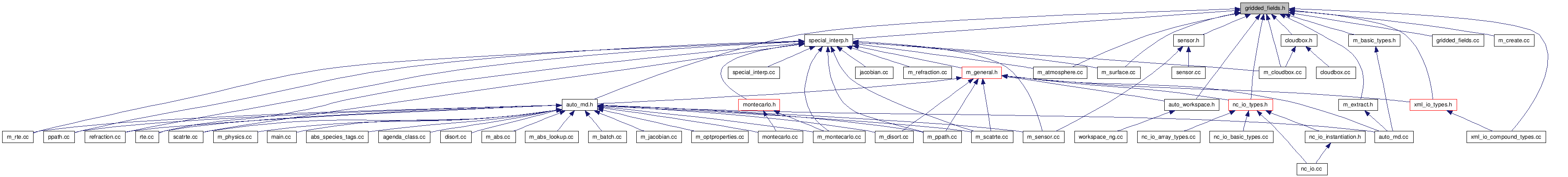

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GField
class	GField1
class	GField2
class	GField3
class	GField4
Typedefs
typedef Array< GridType >	ArrayOfGridType
typedef Array< GField1 >	ArrayOfGField1
typedef Array< GField2 >	ArrayOfGField2
typedef Array< GField3 >	ArrayOfGField3
typedef Array< GField4 >	ArrayOfGField4
typedef Array< Array< GField1 > >	ArrayOfArrayOfGField1
typedef Array< Array< GField3 > >	ArrayOfArrayOfGField3
Enumerations
enum	GridType { GRIDTYPE_NUMERIC, GRIDTYPE_STRING }
Functions
ostream &	operator<< (ostream &os, const GField &gf)
	Output operator for GField.
ostream &	operator<< (ostream &os, const GField1 &gf)
	Output operator for GField1.
ostream &	operator<< (ostream &os, const GField2 &gf)
	Output operator for GField2.
ostream &	operator<< (ostream &os, const GField3 &gf)
	Output operator for GField3.
ostream &	operator<< (ostream &os, const GField4 &gf)
	Output operator for GField4.

---

Detailed Description

Reading routines for gridded fields.

Author:

Claudia Emde <claudia.emde@dlr.de>

Date:

Wed Jun 26 17:48:29 2002

This file contains reading routines for gridded fields. Gridded fields are needed to store moredimesional data together with the corresponding grids in the same variable. The datatype og a gridded field is always an array of tensors.

For further description see AUG.

Definition in file gridded_fields.h.

---

Typedef Documentation

typedef Array< Array<GField1> > ArrayOfArrayOfGField1

Definition at line 357 of file gridded_fields.h.

typedef Array< Array<GField3> > ArrayOfArrayOfGField3

Definition at line 358 of file gridded_fields.h.

typedef Array<GField1> ArrayOfGField1

Definition at line 353 of file gridded_fields.h.

typedef Array<GField2> ArrayOfGField2

Definition at line 354 of file gridded_fields.h.

typedef Array<GField3> ArrayOfGField3

Definition at line 355 of file gridded_fields.h.

typedef Array<GField4> ArrayOfGField4

Definition at line 356 of file gridded_fields.h.

typedef Array<GridType> ArrayOfGridType

Definition at line 48 of file gridded_fields.h.

---

Enumeration Type Documentation

enum GridType

Enumeration containing the possible grid types for gridded fields

Enumerator:

GRIDTYPE_NUMERIC
GRIDTYPE_STRING

Definition at line 43 of file gridded_fields.h.

---

Function Documentation

ostream& operator<<	(	ostream &	os,
		const GField4 &	gf
	)

Output operator for GField4.

Outputs the given GField4.

Parameters:

[in,out]	os	Output stream.
[in]	gf	GField4.

Definition at line 350 of file gridded_fields.cc.

ostream& operator<<	(	ostream &	os,
		const GField3 &	gf
	)

Output operator for GField3.

Outputs the given GField3.

Parameters:

[in,out]	os	Output stream.
[in]	gf	GField3.

Definition at line 336 of file gridded_fields.cc.

ostream& operator<<	(	ostream &	os,
		const GField2 &	gf
	)

Output operator for GField2.

Outputs the given GField2.

Parameters:

[in,out]	os	Output stream.
[in]	gf	GField2.

Definition at line 322 of file gridded_fields.cc.

ostream& operator<<	(	ostream &	os,
		const GField1 &	gf
	)

Output operator for GField1.

Outputs the given GField1.

Parameters:

[in,out]	os	Output stream.
[in]	gf	GField1.

Definition at line 308 of file gridded_fields.cc.

ostream& operator<<	(	ostream &	os,
		const GField &	gf
	)

Output operator for GField.

Outputs the grids for the given GField.

Parameters:

[in,out]	os	Output stream.
[in]	gf	GField.

Definition at line 276 of file gridded_fields.cc.

References GField::dim, GRIDTYPE_NUMERIC, GRIDTYPE_STRING, GField::mgridnames, GField::mgridtypes, GField::mname, GField::mnumericgrids, and GField::mstringgrids.
