GField Class Reference

#include <gridded_fields.h>

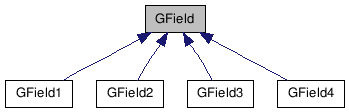

Inheritance diagram for GField:

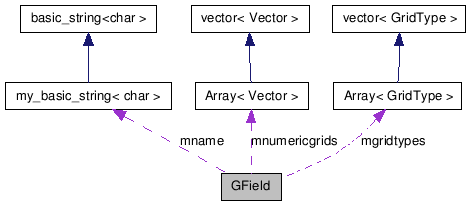

Collaboration diagram for GField:

List of all members.

Public Member Functions

Index get_dim () const

Get the dimension of this gridded field.

void copy_grids (const GField &gf)

Copy grids.

const String & get_grid_name (Index i) const

Get grid name.

Index get_grid_size (const Index i) const

Get the size of a grid.

GridType get_grid_type (Index i) const

Get grid type.

ConstVectorView get_numeric_grid (Index i) const

Get a numeric grid.

VectorView get_numeric_grid (Index i)

Get a numeric grid.

const ArrayOfString & get_string_grid (Index i) const

Get a string grid.

ArrayOfString & get_string_grid (Index i)

Get a string grid.

const String & get_name () const

Get the name of this gridded field.

void set_grid (Index i, const Vector &g)

Set a numeric grid.

void set_grid (Index i, const ArrayOfString &g)

Set a string grid.

void set_gridname (Index i, const String &s)

Set grid name.

void set_name (const String &s)

Set name of this gridded field.

virtual bool checksize () const

Consistency check.

virtual ~GField ()

GField destructor.

Protected Member Functions

GField ()

Construct an empty GField.

GField (const Index d, const String s)

Construct a GField.

Private Attributes

Index dim

String mname

Array< GridType > mgridtypes

ArrayOfString mgridnames

Array< ArrayOfString > mstringgrids

ArrayOfVector mnumericgrids

Friends

ostream & operator<< (ostream &os, const GField &gf)

Output operator for GField.

Detailed Description

Abstract base class for gridded fields.

Definition at line 51 of file gridded_fields.h.

Constructor & Destructor Documentation

GField::GField ( ) [inline, protected]

Construct an empty GField.

The constructor for GField is protected because it is only used internally by the derived classed.

Definition at line 67 of file gridded_fields.h.

GField::GField	(	const Index	d,
		const String	s
	)			`[inline, protected]`

Construct a GField.

Constructs a GField with the given dimension and name.

The constructor for GField is protected because it is only used internally by the derived classed.

Parameters:

`[in]`	d	Dimension.
`[in]`	s	Name.

Definition at line 85 of file gridded_fields.h.

virtual GField::~GField ( ) [inline, virtual]

GField destructor.

Definition at line 165 of file gridded_fields.h.

Member Function Documentation

Index GField::get_dim ( ) const [inline]

Get the dimension of this gridded field.

Returns:: Dimension.

Definition at line 97 of file gridded_fields.h.

References dim.

Referenced by copy_grids(), xml_read_from_stream(), and xml_write_to_stream().

void GField::copy_grids ( const GField & gf )

Copy grids.

Copies the grids from the given GField to the current one.

Parameters:

[in] gf Source gridded field

Definition at line 59 of file gridded_fields.cc.

References dim, get_dim(), get_grid_type(), get_numeric_grid(), get_string_grid(), GRIDTYPE_NUMERIC, GRIDTYPE_STRING, mgridtypes, mnumericgrids, and mstringgrids.

const String& GField::get_grid_name ( Index i ) const [inline]

Get grid name.

Returns the name of the grid with index i.

Parameters:

[in] i Grid index.

Returns:: Grid name.

Definition at line 108 of file gridded_fields.h.

References mgridnames.

Referenced by interp_gfield3(), and xml_write_to_stream().

Index GField::get_grid_size ( const Index i ) const

Get the size of a grid.

Returns the size of grid i.

Parameters:

[in] i Grid index.

Returns:: Grid size.

Definition at line 89 of file gridded_fields.cc.

References dim, GRIDTYPE_NUMERIC, GRIDTYPE_STRING, mgridtypes, mnumericgrids, mstringgrids, and Array< base >::nelem().

Referenced by AtmFieldsFromCompact(), GField4::checksize(), GField3::checksize(), GField2::checksize(), GField1::checksize(), GField4::resize(), GField3::resize(), GField2::resize(), and GField1::resize().

GridType GField::get_grid_type ( Index i ) const [inline]

Get grid type.

Returns the type of the grid with index i.

Parameters:

[in] i Grid index.

Returns:: Grid type.

Definition at line 119 of file gridded_fields.h.

References mgridtypes.

Referenced by copy_grids(), and xml_write_to_stream().

ConstVectorView GField::get_numeric_grid ( Index i ) const

Get a numeric grid.

Returns the numeric grid with index i.

Throws a runtime error if grid i is not of type Numeric.

Parameters:

[in] i Grid index.

Returns:: Numeric grid.

Definition at line 112 of file gridded_fields.cc.

References dim, GRIDTYPE_NUMERIC, mgridnames, mgridtypes, mname, and mnumericgrids.

Referenced by antenna1d_matrix(), AtmFieldsCalc(), AtmFieldsFromCompact(), chk_if_pnd_zero_lat(), chk_if_pnd_zero_lon(), chk_if_pnd_zero_p(), chk_pnd_data(), copy_grids(), interp_gfield3(), mixer_matrix(), sensor_responseAntenna(), sensor_responseMixer(), xml_write_to_stream(), ybatchMetProfiles(), and ybatchMetProfilesClear().

VectorView GField::get_numeric_grid ( Index i )

Get a numeric grid.

Returns the numeric grid with index i.

Throws a runtime error if grid i is not of type Numeric.

Parameters:

[in] i Grid index.

Returns:: Numeric grid.

Definition at line 145 of file gridded_fields.cc.

References dim, GRIDTYPE_NUMERIC, mgridnames, mgridtypes, mname, and mnumericgrids.

const ArrayOfString & GField::get_string_grid ( Index i ) const

Get a string grid.

Returns the string grid with index i.

Throws a runtime error if grid i is not of type String.

Parameters:

[in] i Grid index.

Returns:: String grid.

Definition at line 178 of file gridded_fields.cc.

References dim, GRIDTYPE_STRING, mgridnames, mgridtypes, mname, and mstringgrids.

Referenced by antenna1d_matrix(), atm_fields_compactAddConstant(), AtmFieldsFromCompact(), copy_grids(), sensor_responseAntenna(), and xml_write_to_stream().

ArrayOfString & GField::get_string_grid ( Index i )

Get a string grid.

Returns the string grid with index i.

Throws a runtime error if grid i is not of type String.

Parameters:

[in] i Grid index.

Returns:: String grid.

Definition at line 212 of file gridded_fields.cc.

References dim, GRIDTYPE_STRING, mgridnames, mgridtypes, mname, and mstringgrids.

const String& GField::get_name ( ) const [inline]

Get the name of this gridded field.

Returns:: Gridded field name.

Definition at line 131 of file gridded_fields.h.

References mname.

Referenced by xml_write_to_stream().

void GField::set_grid	(	Index	i,
		const Vector &	g
	)

Set a numeric grid.

Sets grid i to the given grid.

Parameters:

`[in]`	i	Grid index.
`[in]`	g	New grid.

Definition at line 244 of file gridded_fields.cc.

References dim, GRIDTYPE_NUMERIC, mgridtypes, mnumericgrids, and mstringgrids.

Referenced by atm_fields_compactFromMatrix(), and xml_read_from_stream().

void GField::set_grid	(	Index	i,
		const ArrayOfString &	g
	)

Set a string grid.

Sets grid i to the given grid.

Parameters:

`[in]`	i	Grid index.
`[in]`	g	New grid.

Definition at line 260 of file gridded_fields.cc.

References dim, GRIDTYPE_STRING, mgridtypes, mnumericgrids, and mstringgrids.

void GField::set_gridname	(	Index	i,
		const String &	s
	)			`[inline]`

Set grid name.

Sets the name with the given index.

Parameters:

`[in]`	i	Grid index.
`[in]`	s	Grid name.

Definition at line 144 of file gridded_fields.h.

References dim, and mgridnames.

Referenced by xml_read_from_stream().

void GField::set_name ( const String & s ) [inline]

Set name of this gridded field.

Parameters:

[in] s Gridded field name.

Definition at line 152 of file gridded_fields.h.

References mname.

Referenced by xml_read_from_stream().

virtual bool GField::checksize ( ) const [inline, virtual]

Consistency check.

Check if the sizes of the grids match the data dimension.

This function must be overwritten by the derived classes.

Returns:: True if sizes match.

Reimplemented in GField1, GField2, GField3, and GField4.

Definition at line 162 of file gridded_fields.h.

Friends And Related Function Documentation

ostream& operator<<	(	ostream &	os,
		const GField &	gf
	)			`[friend]`

Output operator for GField.

Outputs the grids for the given GField.

Parameters:

`[in,out]`	os	Output stream.
`[in]`	gf	GField.

Definition at line 276 of file gridded_fields.cc.

Member Data Documentation

Index GField::dim [private]

Definition at line 54 of file gridded_fields.h.

Referenced by copy_grids(), get_dim(), get_grid_size(), get_numeric_grid(), get_string_grid(), operator<<(), set_grid(), and set_gridname().

String GField::mname [private]

Definition at line 55 of file gridded_fields.h.

Referenced by get_name(), get_numeric_grid(), get_string_grid(), operator<<(), and set_name().

Array<GridType> GField::mgridtypes [private]

Definition at line 56 of file gridded_fields.h.

Referenced by copy_grids(), get_grid_size(), get_grid_type(), get_numeric_grid(), get_string_grid(), operator<<(), and set_grid().

ArrayOfString GField::mgridnames [private]

Definition at line 57 of file gridded_fields.h.

Referenced by get_grid_name(), get_numeric_grid(), get_string_grid(), operator<<(), and set_gridname().

Array<ArrayOfString> GField::mstringgrids [private]

Definition at line 58 of file gridded_fields.h.

Referenced by copy_grids(), get_grid_size(), get_string_grid(), operator<<(), and set_grid().

ArrayOfVector GField::mnumericgrids [private]

Definition at line 59 of file gridded_fields.h.

Referenced by copy_grids(), get_grid_size(), get_numeric_grid(), operator<<(), and set_grid().

The documentation for this class was generated from the following files:
