absorption.h File Reference

Declarations required for the calculation of absorption coefficients. More...

#include <stdexcept>
#include "matpackI.h"
#include "array.h"
#include "mystring.h"
#include "make_array.h"

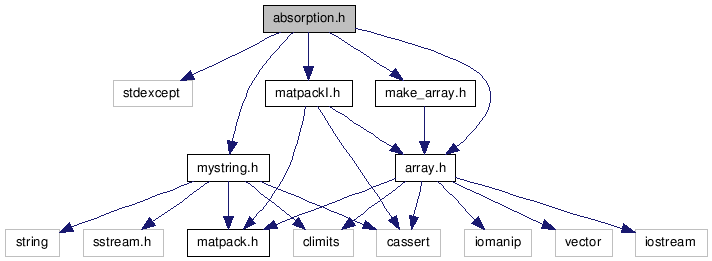

Include dependency graph for absorption.h:

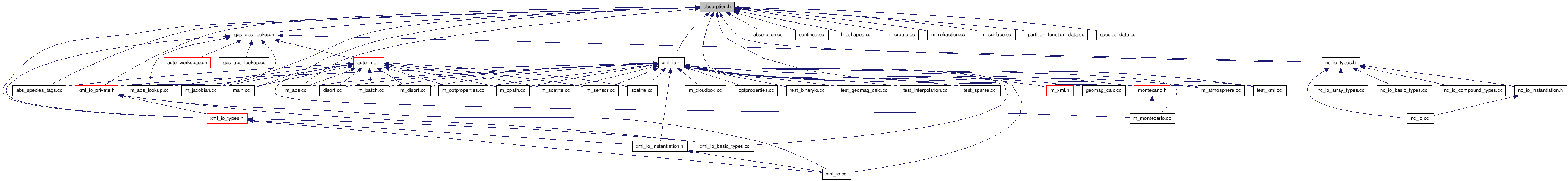

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	LineshapeRecord
	Lineshape related information. More...
class	LineshapeNormRecord
	Lineshape related normalization function information. More...
class	LineshapeSpec
	Lineshape related specification like which lineshape to use, the normalizationfactor, and the cutoff. More...
class	IsotopeRecord
	Contains the lookup data for one isotope. More...
class	SpeciesRecord
	Contains the lookup data for one species. More...
class	LineRecord
	Spectral line catalog data. More...
class	SpecIsoMap
Typedefs
typedef void(*	lsf_type )(Vector &, Vector &, Numeric, Numeric, Numeric, VectorView, const Index)
	The type that is used to store pointers to lineshape functions.
typedef void(*	lsnf_type )(Vector &, Numeric, VectorView, const Numeric, const Index)
	The type that is used to store pointers to lineshape normalization functions.
typedef Array< LineshapeSpec >	ArrayOfLineshapeSpec
	Holds a list of lineshape specifications: function, normalization, cutoff.
typedef Array< LineRecord >	ArrayOfLineRecord
	Holds a list of spectral line data.
typedef Array< Array < LineRecord > >	ArrayOfArrayOfLineRecord
	Holds a lists of spectral line data for each tag group.
Functions
ostream &	operator<< (ostream &os, const LineshapeSpec &lsspec)
ostream &	operator<< (ostream &os, const LineRecord &lr)
	Output operator for LineRecord.
void	define_species_map ()
	Define the species data map.
void	write_lines_to_stream (ostream &os, const ArrayOfLineRecord &abs_lines)
void	xsec_species (MatrixView xsec, ConstVectorView f_mono, ConstVectorView abs_p, ConstVectorView abs_t, ConstVectorView h2o_abs, ConstVectorView vmr, const ArrayOfLineRecord &abs_lines, const Index ind_ls, const Index ind_lsn, const Numeric cutoff)
	Calculate line absorption cross sections for one tag group.
Numeric	wavenumber_to_joule (Numeric e)
	A little helper function to convert energy from units of wavenumber (cm^-1) to Joule (J).
void	refr_index_BoudourisDryAir (Vector &refr_index, ConstVectorView abs_p, ConstVectorView abs_t)
	Calculates the refractive index for dry air at microwave frequncies following Boudouris 1963.
void	refr_index_Boudouris (Vector &refr_index, ConstVectorView abs_p, ConstVectorView abs_t, ConstVectorView h2o_abs)
	Calculates the refractive index at microwave frequncies following Boudouris 1963.
void	convHitranIERF (Numeric &mdf, const Index &df)
void	convHitranIERSH (Numeric &mdh, const Index &dh)
void	convMytranIER (Numeric &mdh, const Index &dh)

---

Detailed Description

Declarations required for the calculation of absorption coefficients.

This is the file from arts-1-0, back-ported to arts-1-1.

Author:

Stefan Buehler, Axel von Engeln

Definition in file absorption.h.

---

Typedef Documentation

typedef Array< Array<LineRecord> > ArrayOfArrayOfLineRecord

Holds a lists of spectral line data for each tag group.

Dimensions: (tag_groups.nelem()) (number of lines for this tag)

Author:

Stefan Buehler

Definition at line 1032 of file absorption.h.

typedef Array<LineRecord> ArrayOfLineRecord

Holds a list of spectral line data.

Author:

Stefan Buehler

Definition at line 1027 of file absorption.h.

typedef Array<LineshapeSpec> ArrayOfLineshapeSpec

Holds a list of lineshape specifications: function, normalization, cutoff.

Author:

Axel von Engeln

Definition at line 174 of file absorption.h.

typedef void(* lsf_type)(Vector &, Vector &, Numeric, Numeric, Numeric, VectorView, const Index)

The type that is used to store pointers to lineshape functions.

Definition at line 39 of file absorption.h.

typedef void(* lsnf_type)(Vector &, Numeric, VectorView, const Numeric, const Index)

The type that is used to store pointers to lineshape normalization functions.

Definition at line 84 of file absorption.h.

---

Function Documentation

void convHitranIERF	(	Numeric &	mdf,
		const Index &	df
	)

Definition at line 2573 of file absorption.cc.

Referenced by LineRecord::ReadFromHitran2004Stream(), and LineRecord::ReadFromHitranStream().

void convHitranIERSH	(	Numeric &	mdh,
		const Index &	dh
	)

Definition at line 2620 of file absorption.cc.

Referenced by LineRecord::ReadFromHitran2004Stream(), and LineRecord::ReadFromHitranStream().

void convMytranIER	(	Numeric &	mdh,
		const Index &	dh
	)

Definition at line 2679 of file absorption.cc.

Referenced by LineRecord::ReadFromMytran2Stream().

void define_species_map

(

)

Define the species data map.

Author:

Stefan Buehler

Define the species data map.

Author:

Stefan Buehler

Definition at line 70 of file absorption.cc.

References Array< base >::nelem(), species_data, and SpeciesMap.

Referenced by main().

ostream& operator<<	(	ostream &	os,
		const LineRecord &	lr
	)

Output operator for LineRecord.

The result should look like a catalogue line.

Author:

Stefan Buehler

Definition at line 81 of file absorption.cc.

References LineRecord::Agam(), LineRecord::Aux(), LineRecord::dAgam(), LineRecord::dF(), LineRecord::dI0(), LineRecord::dNair(), LineRecord::dNself(), LineRecord::dPsf(), LineRecord::dSgam(), LineRecord::Elow(), LineRecord::F(), LineRecord::I0(), LineRecord::Nair(), LineRecord::Name(), LineRecord::Naux(), LineRecord::Nself(), precision, LineRecord::Psf(), LineRecord::Sgam(), LineRecord::Tgam(), and LineRecord::Ti0().

ostream& operator<<	(	ostream &	os,
		const LineshapeSpec &	lsspec
	)

Definition at line 2740 of file absorption.cc.

void refr_index_Boudouris	(	Vector &	refr_index,
		ConstVectorView	abs_p,
		ConstVectorView	abs_t,
		ConstVectorView	abs_h2o
	)

Calculates the refractive index at microwave frequncies following Boudouris 1963.

The expression is also found in Chapter 5 of the Janssen book.

Return values:

refr_index

refractive index

Parameters:

	abs_p	absorption pressure grid
	abs_t	temperatures at abs_p
	abs_h2o	H2O vmr at abs_p

Author:

Patrick Eriksson

Date:

2001-02-16

Definition at line 2514 of file absorption.cc.

References ConstVectorView::nelem(), and Vector::resize().

void refr_index_BoudourisDryAir	(	Vector &	refr_index,
		ConstVectorView	abs_p,
		ConstVectorView	abs_t
	)

Calculates the refractive index for dry air at microwave frequncies following Boudouris 1963.

The expression is also found in Chapter 5 of the Janssen book.

The atmosphere is assumed to have no water vapour.

Return values:

refr_index

refractive index

Parameters:

	abs_p	absorption pressure grid
	abs_t	temperatures at abs_p

Author:

Patrick Eriksson

Date:

2001-02-16

Definition at line 2482 of file absorption.cc.

References ConstVectorView::nelem(), and Vector::resize().

Numeric wavenumber_to_joule

(

Numeric

e

)

A little helper function to convert energy from units of wavenumber (cm^-1) to Joule (J).

This is used when reading HITRAN or JPL catalogue files, which have the lower state energy in cm^-1.

Returns:

Energy in J.

Parameters:

e

Energy in cm^-1.

Author:

Stefan Buehler

Date:

2001-06-26

Definition at line 2551 of file absorption.cc.

References PLANCK_CONST, and SPEED_OF_LIGHT.

Referenced by linesElowToJoule(), LineRecord::ReadFromHitran2004Stream(), LineRecord::ReadFromHitranStream(), LineRecord::ReadFromJplStream(), and LineRecord::ReadFromMytran2Stream().

void write_lines_to_stream	(	ostream &	os,
		const ArrayOfLineRecord &	abs_lines
	)

void xsec_species	(	MatrixView	xsec,
		ConstVectorView	f_grid,
		ConstVectorView	abs_p,
		ConstVectorView	abs_t,
		ConstVectorView	abs_h2o_orig,
		ConstVectorView	vmr,
		const ArrayOfLineRecord &	abs_lines,
		const Index	ind_ls,
		const Index	ind_lsn,
		const Numeric	cutoff
	)

Calculate line absorption cross sections for one tag group.

All lines in the line list must belong to the same species. This must be ensured by abs_lines_per_speciesCreateFromLines, so it is only verified with assert. Also, the input vectors abs_p, and abs_t must all have the same dimension.

This is mainly a copy of abs_species which is removed now, with the difference that the vmrs are removed from the absorption coefficient calculation. (the vmr is still used for the self broadening)

Continua are not handled by this function, you have to call xsec_continuum_tag for those.

Return values:

xsec

Cross section of one tag group. This is now the true absorption cross section in units of m^2.

Parameters:

	f_grid	Frequency grid.
	abs_p	Pressure grid.
	abs_t	Temperatures associated with abs_p.
	abs_h2o_orig	Total volume mixing ratio of water vapor.
	vmr	Volume mixing ratio of the calculated species.
	abs_lines	The spectroscopic line list.
	ind_ls	Index to lineshape function.
	ind_lsn	Index to lineshape norm.
	cutoff	Lineshape cutoff.

Author:

Stefan Buehler and Axel von Engeln

Date:

2001-01-11

Changed from pseudo cross sections to true cross sections

Author:

Stefan Buehler

Date:

2007-08-08

Definition at line 1996 of file absorption.cc.

References IsotopeRecord::Abundance(), LineRecord::Agam(), LineRecord::Aux(), AVOGADROS_NUMB, BOLTZMAN_CONST, IsotopeRecord::CalculatePartitionFctRatio(), LineRecord::Elow(), exit_or_rethrow(), LineRecord::F(), fac(), LineRecord::I0(), is_sorted(), LineRecord::IsotopeData(), lineshape_data, lineshape_norm_data, IsotopeRecord::Mass(), LineRecord::Nair(), LineRecord::Name(), LineRecord::Naux(), ConstMatrixView::ncols(), Array< base >::nelem(), ConstVectorView::nelem(), ConstMatrixView::nrows(), LineRecord::Nself(), PLANCK_CONST, LineRecord::Psf(), Vector::resize(), LineRecord::Sgam(), SPEED_OF_LIGHT, LineRecord::Tgam(), and LineRecord::Ti0().

Referenced by abs_xsec_per_speciesAddLines().
