profile_z

typhon.plots.profile_z(z, x, ax=None, **kwargs)[source]

Plot atmospheric profile of arbitrary property against height (in km).

Parameters:

  • z (ndarray) – Height [m].

  • x (ndarray) – Atmospheric property.

  • ax (AxesSubplot) – Axes to plot in.

  • **kwargs – Additional keyword arguments passed to plt.plot.

See also

profile_p()

Plot profile against pressure in linear space.

profile_p_log()

Plot profile against pressure in log space.

Examples:

import numpy as np
import matplotlib.pyplot as plt
import typhon.plots

z = np.linspace(0, 80e3, 50)
x = np.sin(z / 5e3)

fig, ax = plt.subplots()
typhon.plots.profile_z(z, x, ax=ax)

plt.show()

(Source code, png, hires.png, pdf)

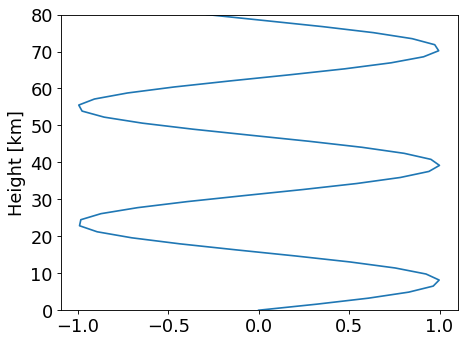

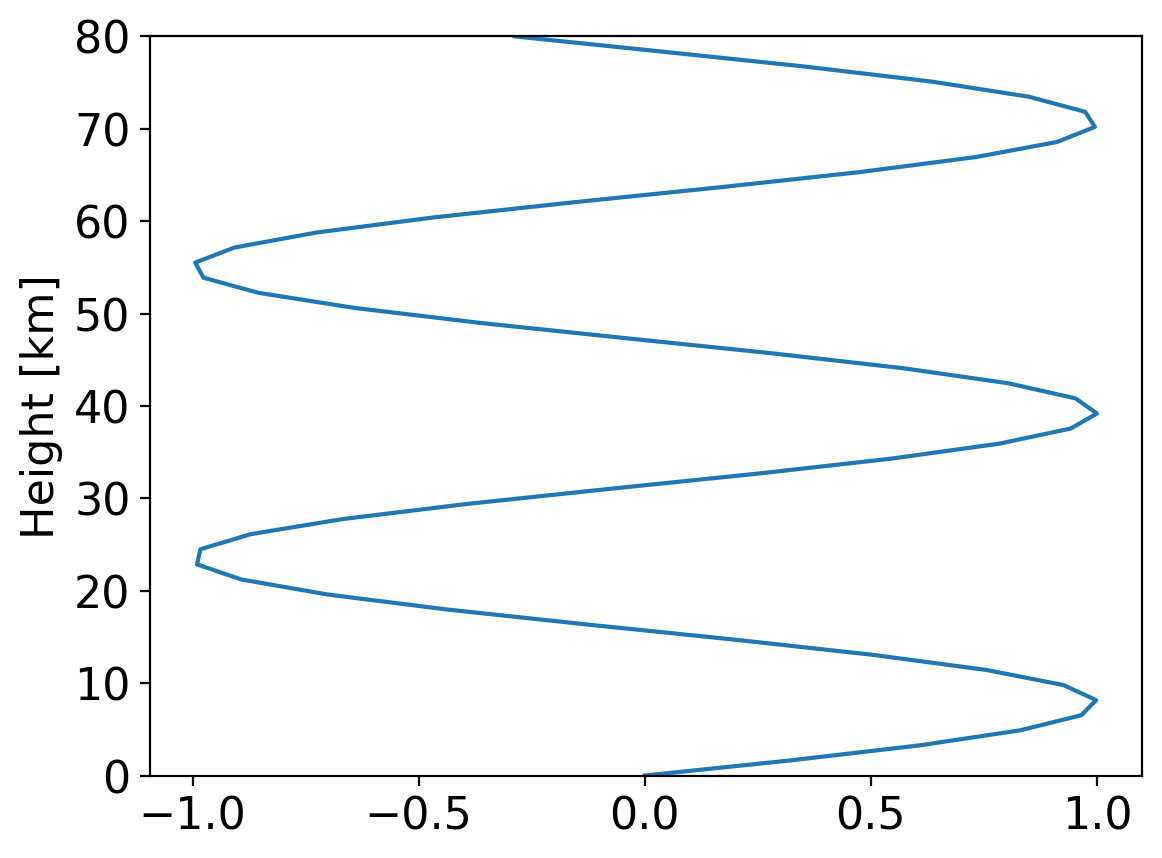

../_images/typhon-plots-profile_z-1.png
