channels

typhon.plots.channels(met_mm_backend, ylim=None, ax=None, **kwargs)[source]

Plot instrument channels for passband-type sensors.

Parameters:
  • met_mm_backend (ndarray) – Backend description for meteorological millimeter sensors with passbands (met_mm_backend).

  • ylim (tuple) – A tuple-like container with the lower and upper y-limits for the rectangles.

  • ax (AxesSubplot) – Axes to plot in.

  • **kwargs – Additional keyword arguments passed to Rectangle.

Returns:

List of all rectangles drawn.

Return type:

list[matplotlib.patches.Rectangle]

Note

matplotlib.patches.Patch do not set the axis limits. If this function is used without other data in the plot, you have to set the axis limits to an appropriate value. Otherwise the drawn channels might not be seen.

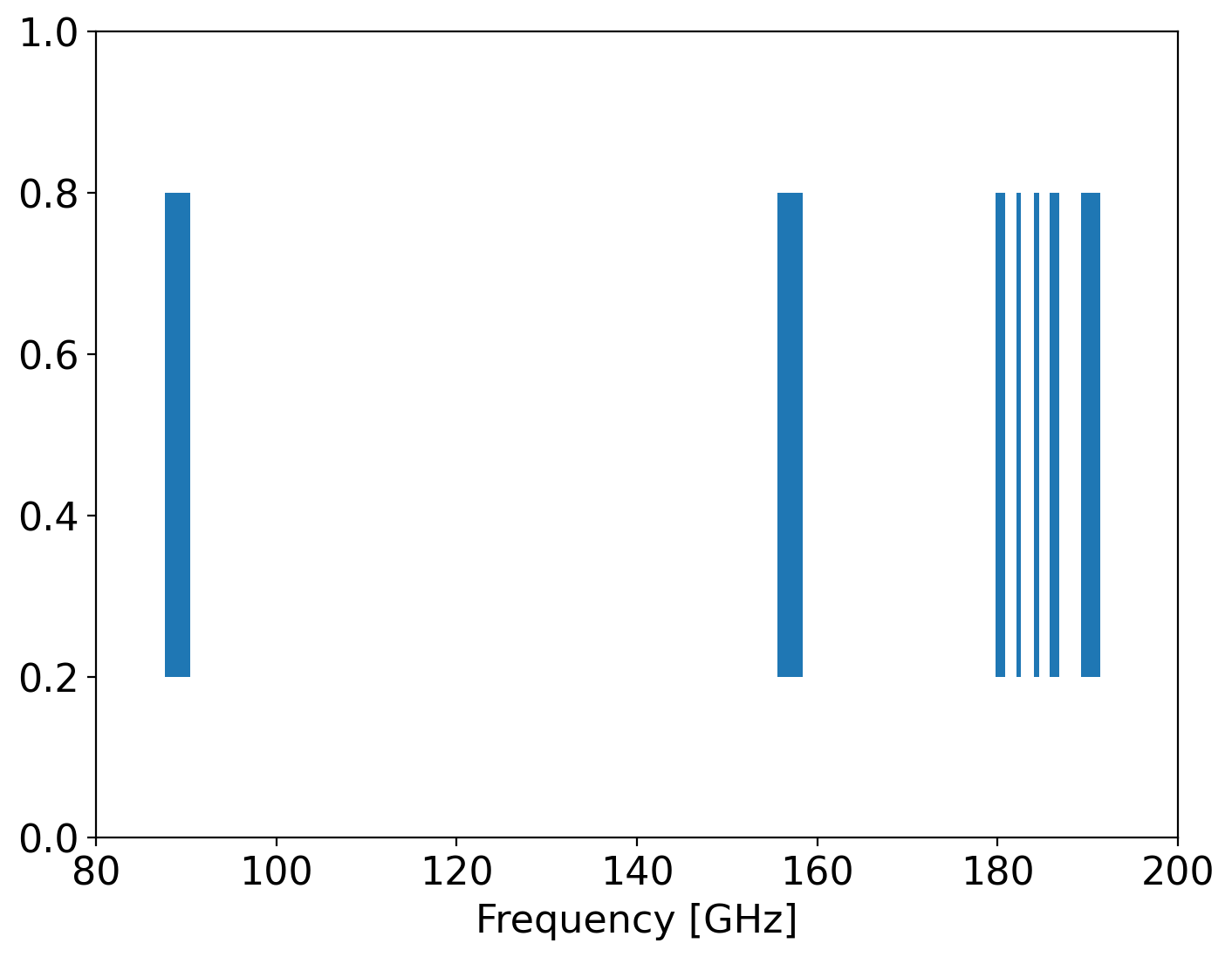

Examples:

import numpy as np
import matplotlib.pyplot as plt
import typhon.plots

met_mm_backend = np.array([
    [89.000e9, 0., 0., 2800e6],
    [157.000e9, 0., 0., 2800e6],
    [183.311e9, 1.00e9, 0., 500e6],
    [183.311e9, 3.00e9, 0., 1000e6],
    [190.311e9, 0., 0., 2200e6],
    ])

fig, ax = plt.subplots(figsize=(8, 6))
typhon.plots.channels(met_mm_backend / 1e9, ylim=(0.2, 0.8))
ax.set_xlim(80, 200)  # mpl.patches do **not** autoscale axis limits!
ax.set_xlabel('Frequency [GHz]')

plt.show()

(Source code, png, hires.png, pdf)

../_images/typhon-plots-channels-1.png
