ScalingFormatter

typhon.plots.ScalingFormatter(scaling=1, fmtstr='{x:g}')[source]

Provide a ticklabel formatter that applies scaling.

Parameters:
  • scaling (float or string) – Scaling that is applied to all labels. If str, try to find corresponding scale in typhon.constants.

  • fmtstr (str) – Format string used to create label text. The field x is replaced with the scaled label value.

Returns:

Formatter.

Return type:

matplotlib.ticker.FuncFormatter

Examples:

import numpy as np
import matplotlib.pyplot as plt
from typhon.plots import (set_yaxis_formatter, ScalingFormatter)


y = 1e6 * np.random.randn(100)

fig, ax = plt.subplots()
ax.plot(y)
ax.set_ylabel('y')
ax.set_title('default')

fig, ax = plt.subplots()
ax.plot(y)
set_yaxis_formatter(ScalingFormatter(scaling=1e6))
ax.set_ylabel('y in millions')
ax.set_title('float scaling')

fig, ax = plt.subplots()
ax.plot(y)
set_yaxis_formatter(ScalingFormatter(scaling=1e6, fmtstr='{x:g}M'))
ax.set_ylabel('y')
ax.set_title('float scaling and custom label')

fig, ax = plt.subplots()
ax.plot(y)
set_yaxis_formatter(ScalingFormatter(scaling='kilo', fmtstr='{x:g}k'))
ax.set_ylabel('y')
ax.set_title('string scaling and custom label')

plt.show()

(Source code)

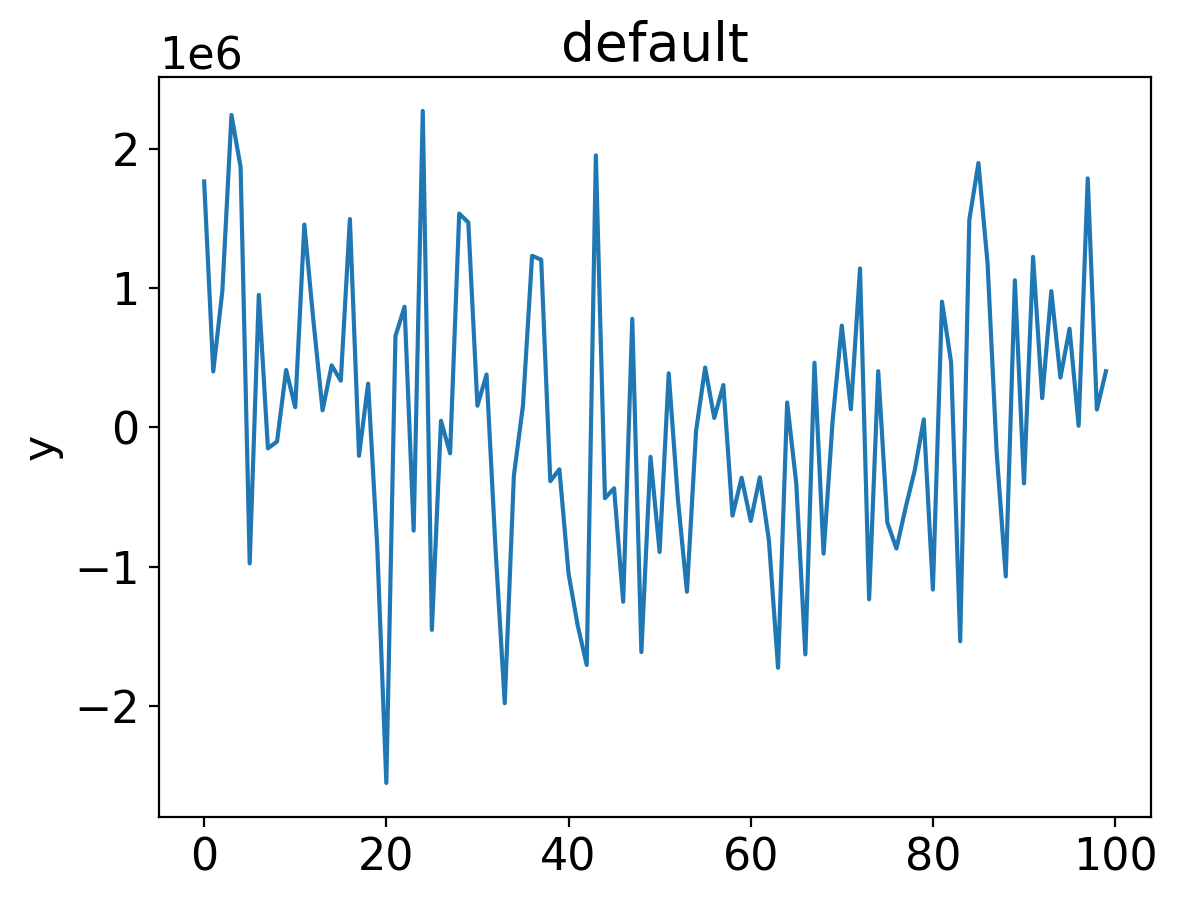

../_images/typhon-plots-ScalingFormatter-1_00.png

Fig. 9 (png, hires.png, pdf)

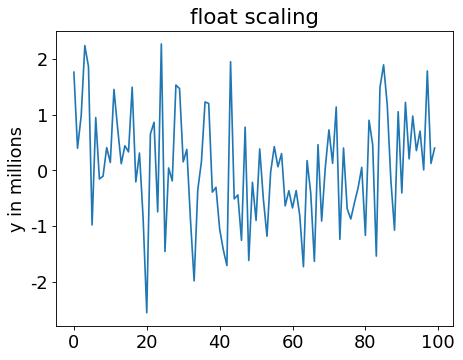

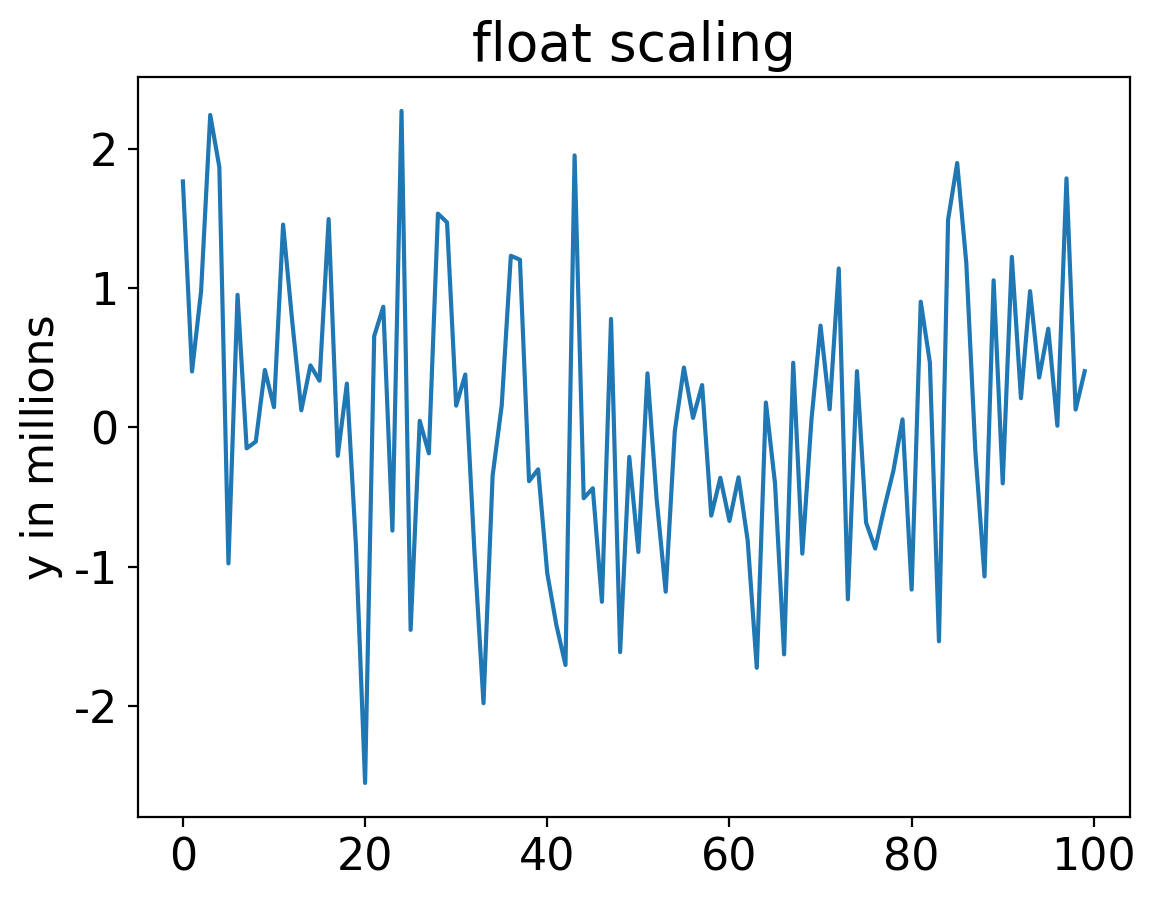

../_images/typhon-plots-ScalingFormatter-1_01.png

Fig. 10 (png, hires.png, pdf)

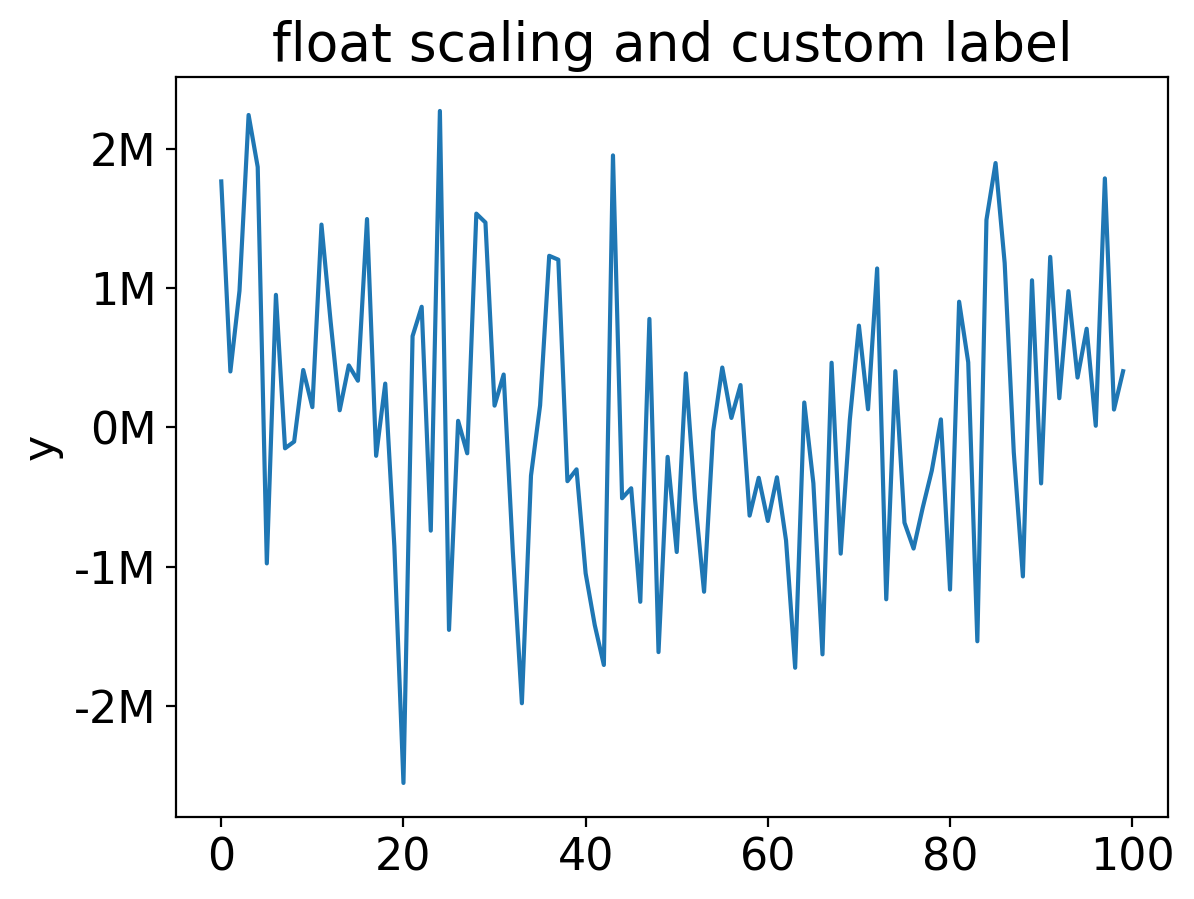

../_images/typhon-plots-ScalingFormatter-1_02.png

Fig. 11 (png, hires.png, pdf)

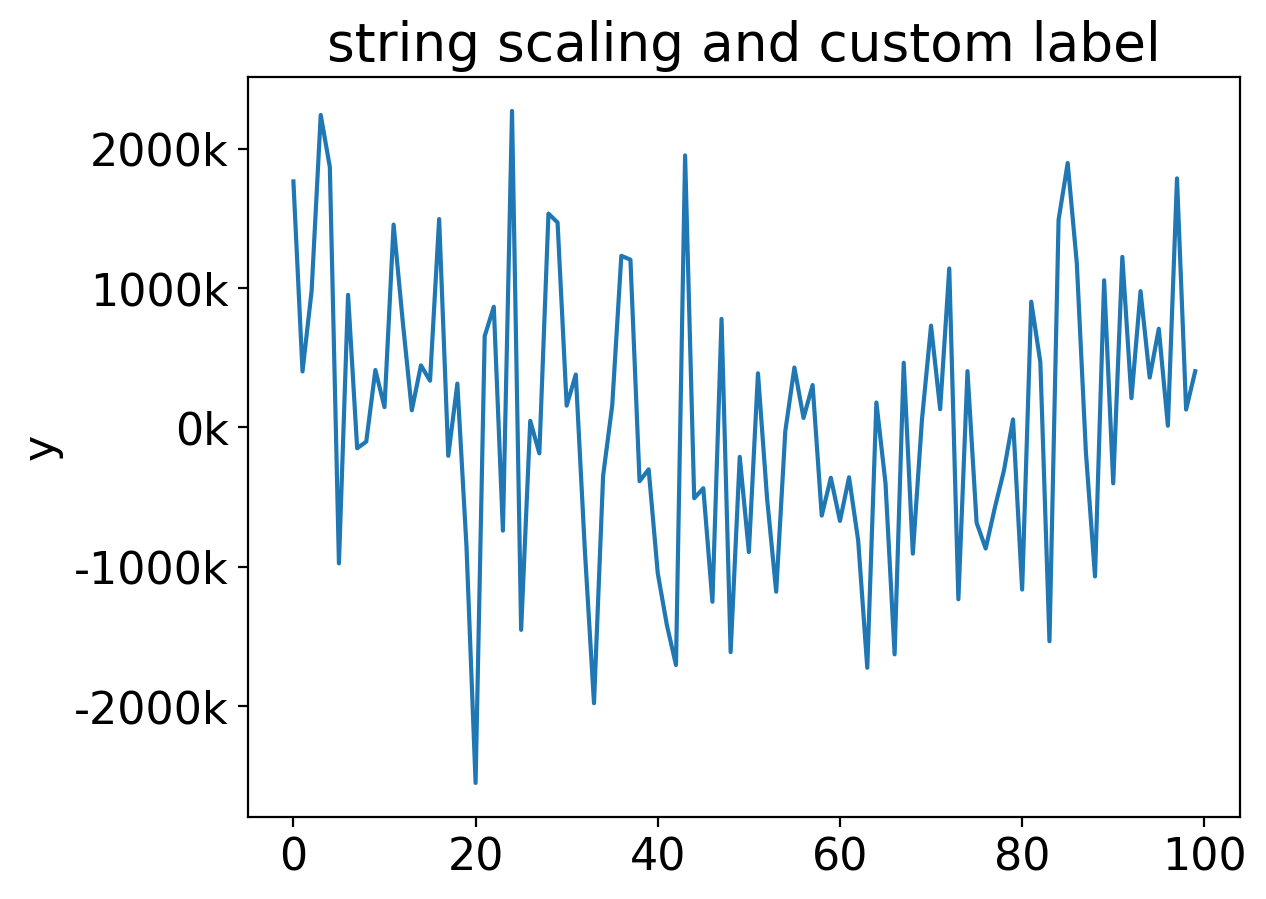

../_images/typhon-plots-ScalingFormatter-1_03.png

Fig. 12 (png, hires.png, pdf)
