species_data.cc File Reference
Implementation of function define_species_data(). More...

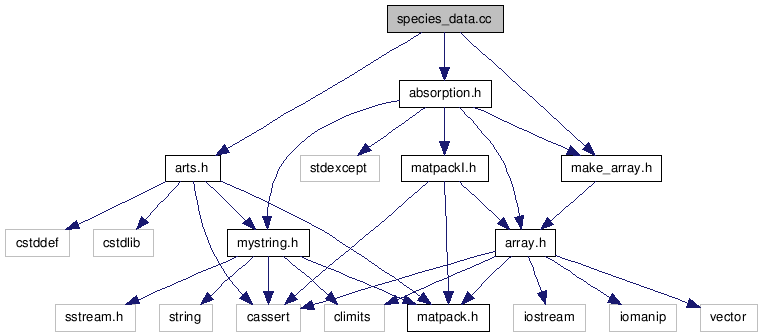

#include "arts.h"
#include "make_array.h"
#include "absorption.h"
Go to the source code of this file.
Defines | |
Some #defines for better readability | |
| #define | NAME(x) x |
| #define | DEGFR(x) x |
| #define | ISOTOPES MakeArray<IsotopeRecord> |
| #define | REC IsotopeRecord |
| #define | TAGS MakeArray<Index> |
Functions | |
| void | define_basic_species_data () |
| Define species lookup data. | |
| void | define_partition_species_data () |
| void | define_species_data () |
Variables | |
| Array< SpeciesRecord > | species_data |
Detailed Description
Implementation of function define_species_data().This file contains the definition of this function and nothing else. You can add new records here if you want to extend the capability of ARTS.
This is the file from arts-1-0, back-ported to arts-1-1.
- Date:
- 2000-08-10
Definition in file species_data.cc.
Define Documentation
| #define DEGFR | ( | x | ) | x |
| #define ISOTOPES MakeArray<IsotopeRecord> |
| #define NAME | ( | x | ) | x |
Definition at line 45 of file species_data.cc.
| #define REC IsotopeRecord |
Function Documentation
| void define_basic_species_data | ( | ) |
Define species lookup data.
Source for entries
- Molecule Name:
- Generally Hitran convention, unless otherwise indicated.
- Degrees of freedom:
- Generally taken from the forward_4_96 release, file glob_def.c, unless otherwise indicated.
- Isotopes:
- Generally Hitran convention, e.g., for the main H2O isotope: 161, thus the last digit of the sum of the neutrons and protons of the individual atoms is taken. Nevertheless, molecules like H2CO have only 3 digits in Hitran, only one for the two H atoms. This leads to problems with the jpl catalogue, if this includes DHCO and DDCO. For these cases, a different scheme is taken as indicated.
- Isotopic Ratio:
- Generally Hitran convention, unless otherwise indicated. A number code in the header gives the source of the isotopic ratios for each isotope of each species:
1: hitran 96 isotopic ratio, taken from cd: file software/generic/tables_96.txt or HITRAN 2000 edition (default, even if jpl and hitran isotopic ratios are available). 2: jpl isotopic ratio, taken from the documentation coming along with the catalogue. latest catalogue version extracted 27.07.00, can be found at /pool/lookup/jpl/cat7_00/doc/d<tag_nr>.cat 3: jpl isotopic ratio is multiplied with the maximum isotopic ratio of this species found in hitran. is only performed when isotopic ratios of 1 were found in the jpl catalogue. - Mass:
- mass as given in file MOLPARAM.TXT of HITRAN2000. If tag is not present in HITRAN, the rounded value is stated. Note that the mass is given in units of [g/mol].
- MY-tags:
- Extracted from file glob_def.c.
- HI-tags:
- From hitran 96, software/generic/tables_96.txt.
- JPL-tags:
- Collected in file arts/aux/abundancies/tag_species.jpl, taken from last issue of jpl catalogue (7/00).
Some more information can be found at /pool/lookup/jpl/cat7_00/abundancies, where the idl script that reads/converts the isotopic ratios is located.
- Date:
- 2000-08-08
Definition at line 143 of file species_data.cc.
References DEGFR, ISOTOPES, NAME, REC, and TAGS.
Referenced by define_species_data().
| void define_partition_species_data | ( | ) |
Definition at line 160 of file partition_function_data.cc.
References iso(), Qcoeff, spec(), and species_data.
Referenced by define_species_data().
| void define_species_data | ( | ) |
Definition at line 136 of file species_data.cc.
References define_basic_species_data(), and define_partition_species_data().
Referenced by main().
Variable Documentation
The lookup information for all the different species.
Definition at line 40 of file species_data.cc.
Referenced by abs_lines_per_speciesCreateFromLines(), abs_speciesDefineAllInScenario(), AtmFieldsFromCompact(), AtmRawRead(), check_continuum_model(), define_partition_species_data(), define_species_map(), find_nonlinear_continua(), LineRecord::IsotopeData(), LineRecord::Name(), SpeciesTag::Name(), LineRecord::ReadFromArtsStream(), LineRecord::ReadFromHitran2004Stream(), LineRecord::ReadFromHitranStream(), LineRecord::ReadFromJplStream(), LineRecord::ReadFromMytran2Stream(), LineRecord::SpeciesData(), and SpeciesTag::SpeciesTag().
