cloudbox.h File Reference

Internal cloudbox functions. More...

#include "matpackVII.h"
#include "interpolation.h"
#include "optproperties.h"
#include "array.h"
#include "gridded_fields.h"

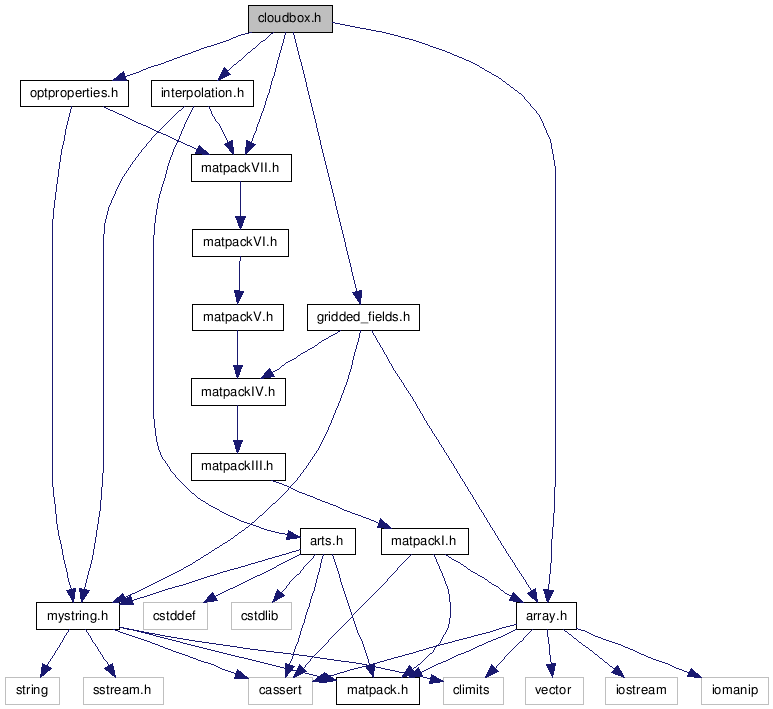

Include dependency graph for cloudbox.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	chk_if_pnd_zero_p (const Index &i_p, const GField3 &pnd_field_raw, const String &pnd_field_file)
	Check whether particle number density is zero at a specified pressure level.
void	chk_if_pnd_zero_lat (const Index &i_lat, const GField3 &pnd_field_raw, const String &pnd_field_file)
	Check whether particle number density is zero at a specified latitude.
void	chk_if_pnd_zero_lon (const Index &i_lon, const GField3 &pnd_field_raw, const String &pnd_field_file)
	Check whether particle number density is zero at a specified longitude.
void	chk_pnd_data (const GField3 &pnd_field_raw, const String &pnd_field_file, const Index &atmosphere_dim, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, const ArrayOfIndex &cloudbox_limits)
	Check particle number density files.
void	chk_pnd_raw_data (const ArrayOfGField3 &pnd_field_raw, const String &pnd_field_file, const Index &atmosphere_dim, ConstVectorView p_grid, ConstVectorView lat_grid, ConstVectorView lon_grid, const ArrayOfIndex &cloudbox_limits)
	Check particle number density files (pnd_field_raw).
void	chk_single_scattering_data (const SingleScatteringData &scat_data_raw, const String &scat_data_file, ConstVectorView f_grid)
	Check single scattering data files.
void	iy_interp_cloudbox_field (Matrix &iy, const Tensor7 &scat_i_p, const Tensor7 &scat_i_lat, const Tensor7 &scat_i_lon, const Tensor4 &doit_i_field1D_spectrum, const GridPos &rte_gp_p, const GridPos &rte_gp_lat, const GridPos &rte_gp_lon, const Vector &rte_los, const Index &cloudbox_on, const ArrayOfIndex &cloudbox_limits, const Index &atmosphere_dim, const Index &stokes_dim, const Vector &scat_za_grid, const Vector &scat_aa_grid, const Vector &f_grid, const String &interpmeth)
	Interpolation of cloud box intensity field.

---

Detailed Description

Internal cloudbox functions.

Author:

Claudia Emde <claudia.emde@dlr.de>

Date:

Thu May 23 14:34:05 2002

Definition in file cloudbox.h.

---

Function Documentation

void chk_if_pnd_zero_lat	(	const Index &	i_lat,
		const GField3 &	pnd_field_raw,
		const String &	pnd_field_file
	)

Check whether particle number density is zero at a specified latitude.

Parameters:

	i_lat	Latitude index
	pnd_field_raw	Particle number density data
	pnd_field_file	pnd field filename

Author:

Claudia Emde

Date:

2005-05-09

Definition at line 105 of file cloudbox.cc.

References GField::get_numeric_grid(), GFIELD3_LAT_GRID, GFIELD3_LON_GRID, GFIELD3_P_GRID, ConstVectorView::nelem(), and out1.

Referenced by chk_pnd_data().

void chk_if_pnd_zero_lon	(	const Index &	i_lon,
		const GField3 &	pnd_field_raw,
		const String &	pnd_field_file
	)

Check whether particle number density is zero at a specified longitude.

Parameters:

	i_lon	Latitude index
	pnd_field_raw	Particle number density data
	pnd_field_file	pnd field filename

Author:

Claudia Emde

Date:

2005-05-09

Definition at line 151 of file cloudbox.cc.

References GField::get_numeric_grid(), GFIELD3_LAT_GRID, GFIELD3_LON_GRID, GFIELD3_P_GRID, ConstVectorView::nelem(), and out1.

Referenced by chk_pnd_data().

void chk_if_pnd_zero_p	(	const Index &	i_p,
		const GField3 &	pnd_field_raw,
		const String &	pnd_field_file
	)

Check whether particle number density is zero at a specified pressure level.

Parameters:

	i_p	Pressure index
	pnd_field_raw	Particle number density data
	pnd_field_file	pnd field filename

Author:

Claudia Emde

Date:

2005-05-09

Definition at line 59 of file cloudbox.cc.

References GField::get_numeric_grid(), GFIELD3_LAT_GRID, GFIELD3_LON_GRID, GFIELD3_P_GRID, ConstVectorView::nelem(), and out1.

Referenced by chk_pnd_data().

void chk_pnd_data	(	const GField3 &	pnd_field_raw,
		const String &	pnd_field_file,
		const Index &	atmosphere_dim,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		const ArrayOfIndex &	cloudbox_limits
	)

Check particle number density files.

This function checks, whether the particle number density file has the right atmospheric dimension and whether the cloudbox includes all points where the particle number density is non-zero.

Parameters:

	pnd_field_raw	pnd field data
	pnd_field_file	pnd field filename
	atmosphere_dim	Atmospheric dimension
	p_grid	Pressure grid
	lat_grid	Latitude grid
	lon_grid	Longitude grid
	cloudbox_limits	Cloudbox limits

Author:

Claudia Emde

Date:

2005-04-05

Definition at line 207 of file cloudbox.cc.

References chk_if_pnd_zero_lat(), chk_if_pnd_zero_lon(), chk_if_pnd_zero_p(), GField::get_numeric_grid(), GFIELD3_LAT_GRID, GFIELD3_LON_GRID, GFIELD3_P_GRID, ConstVectorView::nelem(), and out3.

Referenced by chk_pnd_raw_data(), and ParticleTypeAdd().

void chk_pnd_raw_data	(	const ArrayOfGField3 &	pnd_field_raw,
		const String &	pnd_field_file,
		const Index &	atmosphere_dim,
		ConstVectorView	p_grid,
		ConstVectorView	lat_grid,
		ConstVectorView	lon_grid,
		const ArrayOfIndex &	cloudbox_limits
	)

Check particle number density files (pnd_field_raw).

Parameters:

	pnd_field_raw	pnd field raw data (array for all particle types)
	pnd_field_file	pnd field filename
	atmosphere_dim	Atmospheric dimension
	p_grid	Pressure grid
	lat_grid	Latitude grid
	lon_grid	Longitude grid
	cloudbox_limits	Cloudbox limits

Author:

Claudia Emde

Date:

2005-04-05

Definition at line 316 of file cloudbox.cc.

References chk_pnd_data(), Array< base >::nelem(), and out3.

Referenced by ParticleTypeAddAll().

void chk_single_scattering_data	(	const SingleScatteringData &	scat_data_raw,
		const String &	scat_data_file,
		ConstVectorView	f_grid
	)

Check single scattering data files.

This function checks, whether a datafile containing the single scattering properties of a particle type includes the required frequencies and temperatures and whether the angular grids are defined correctly. Furthermore it checks the self consistency of the data by checking the dimensions of pha_mat, ext_mat and abs_vec depening on the ptype case.

Parameters:

	scat_data_raw	Single scattering data
	scat_data_file	Filename of the data to be checked.
	f_grid	Frequency grid

Author:

Claudia Emde

Date:

2005-04-04

Definition at line 350 of file cloudbox.cc.

References SingleScatteringData::aa_grid, SingleScatteringData::abs_vec_data, chk_size(), SingleScatteringData::ext_mat_data, SingleScatteringData::f_grid, last(), ConstVectorView::nelem(), out2, SingleScatteringData::pha_mat_data, SingleScatteringData::ptype, PTYPE_GENERAL, PTYPE_HORIZ_AL, PTYPE_MACROS_ISO, PTYPE_SPHERICAL, SingleScatteringData::T_grid, and SingleScatteringData::za_grid.

Referenced by ParticleTypeAdd(), and ParticleTypeAddAll().

void iy_interp_cloudbox_field	(	Matrix &	iy,
		const Tensor7 &	scat_i_p,
		const Tensor7 &	scat_i_lat,
		const Tensor7 &	scat_i_lon,
		const Tensor4 &	doit_i_field1D_spectrum,
		const GridPos &	rte_gp_p,
		const GridPos &	rte_gp_lat,
		const GridPos &	rte_gp_lon,
		const Vector &	rte_los,
		const Index &	cloudbox_on,
		const ArrayOfIndex &	cloudbox_limits,
		const Index &	atmosphere_dim,
		const Index &	stokes_dim,
		const Vector &	scat_za_grid,
		const Vector &	scat_aa_grid,
		const Vector &	f_grid,
		const String &	interpmeth
	)

Interpolation of cloud box intensity field.

Definition at line 558 of file cloudbox.cc.

References DEBUG_ONLY, fractional_gp(), gridpos(), GridPos::idx, interp(), interp_poly(), interpweights(), is_gridpos_at_index_i(), is_size(), joker, ConstTensor7View::nbooks(), ConstVectorView::nelem(), Array< base >::nelem(), ConstTensor7View::nshelves(), ConstTensor7View::nvitrines(), out3, and Matrix::resize().

Referenced by iyInterpCloudboxField(), and iyInterpPolyCloudboxField().
