squeezable_logspace

typhon.math.squeezable_logspace(start, stop, num=50, squeeze=1.0, fixpoint=0.0)[source]

Create a logarithmic grid that is squeezable around a fixpoint.

Parameters:
  • start (float) – The starting value of the sequence.

  • stop (float) – The end value of the sequence.

  • num (int) – Number of sample to generate (Default is 50).

  • squeeze (float) – Factor with which the first stepwidth is squeezed in logspace. Has to be between (0, 2). Values smaller than one compress the gridpoints, while values greater than 1 strecht the spacing. The default is 1 (do not squeeze.)

  • fixpoint (float) – Relative fixpoint for squeezing the grid. Has to be between [0, 1]. The default is 0 (bottom).

Examples

Constructing an unsqueezed grid in logspace.

>>> squeezable_logspace(1, 100, num=5)
array([1., 3.16227766, 10., 31.6227766, 100.])

Constructing a grid that is squeezed at the start.

>>> squeezable_logspace(1, 100, num=5, squeeze=0.5)
array([1., 1.77827941, 4.64158883, 17.7827941, 100.])

Constructing a grid that is squeezed in the middle.

>>> squeezable_logspace(1, 100, num=5, squeeze=0.5, fixpoint=0.5)
array([1., 5.62341325, 10., 17.7827941, 100.])

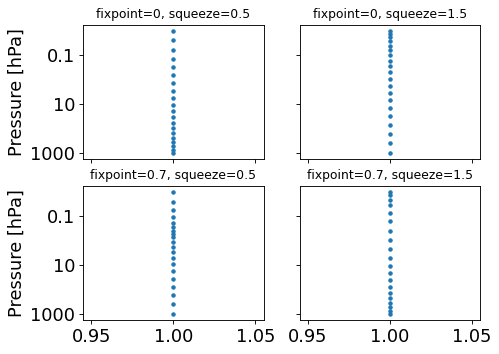

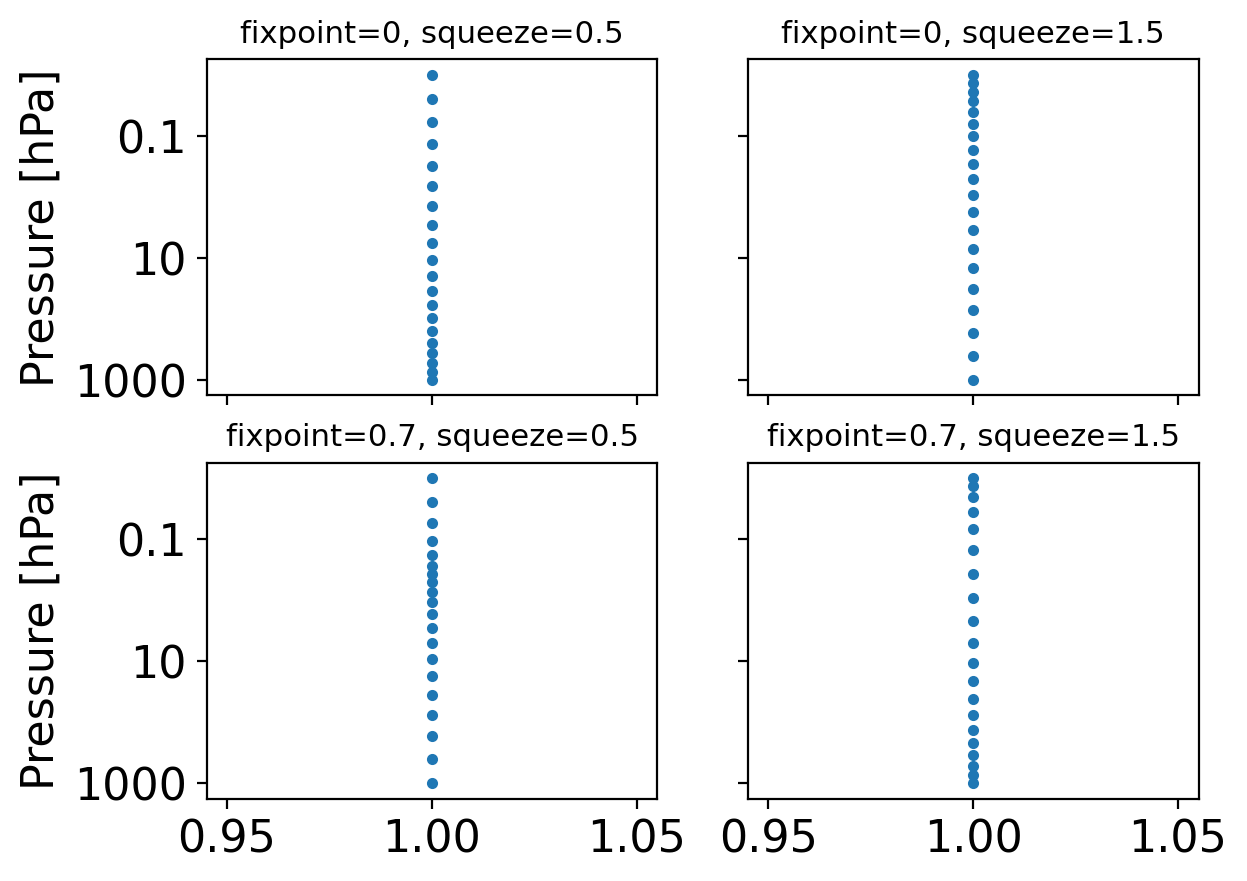

Visualization of different fixpoint and squeeze factor combinations.

import itertools

from typhon.plots import profile_p_log
from typhon.math import squeezable_logspace


fixpoints = [0, 0.7]
squeezefacotrs = [0.5, 1.5]
combinations = itertools.product(fixpoints, squeezefacotrs)

fig, axes = plt.subplots(len(fixpoints), len(squeezefacotrs),
                        sharex=True, sharey=True)
for ax, (fp, s) in zip(axes.flat, combinations):
    p = squeezable_logspace(1000e2, 0.01e2, 20,
                            fixpoint=fp, squeeze=s)
    profile_p_log(p, np.ones(p.size),
                marker='.', linestyle='none', ax=ax)
    ax.set_title('fixpoint={}, squeeze={}'.format(fp, s),
                size='x-small')

(Source code, png, hires.png, pdf)

../_images/typhon-math-squeezable_logspace-1.png
Returns:

(Squeezed) logarithmic grid.

Return type:

ndarray
