supcolorbar

typhon.plots.supcolorbar(mappable, fig=None, right=0.8, rect=(0.85, 0.15, 0.05, 0.7), **kwargs)

Create a common colorbar for all subplots in a figure.

Parameters

• mappable – A scalar mappable like to which the colorbar applies (e.g. QuadMesh, ContourSet, etc.).

• fig (Figure) – Figure to add the colorbar into.

• right (float) – Fraction of figure to use for the colorbar (0-1).

• rect (array-like) – Add an axes at postion rect = [left, bottom, width, height] where all quantities are in fraction of figure.

• **kwargs – Additional keyword arguments are passed to matplotlib.figure.Figure.colorbar().

Returns

Colorbar.

Return type

matplotlib.colorbar.Colorbar

Note

In order to properly scale the value range of the colorbar the vmin and vmax property should be set manually.

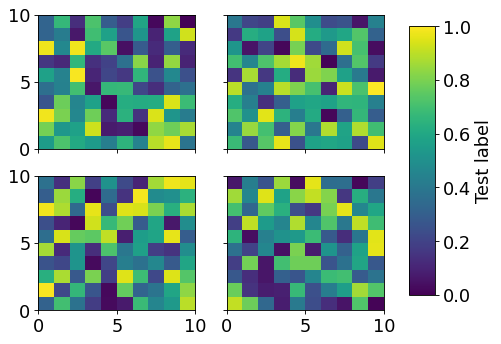

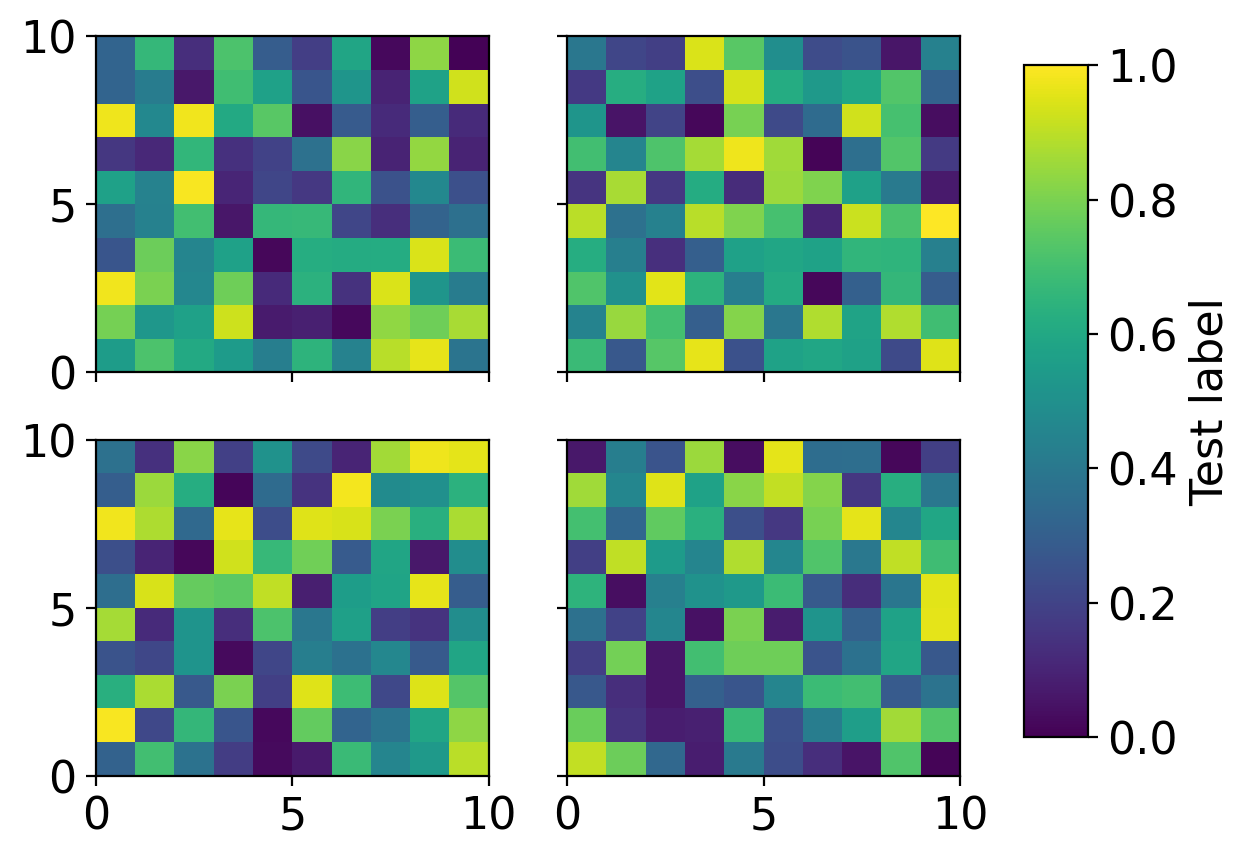

Examples

import matplotlib.pyplot as plt
import numpy as np
from typhon.plots import supcolorbar


fig, axes = plt.subplots(2, 2, sharex=True, sharey=True)
for ax in axes.flat:
    sm = ax.pcolormesh(np.random.random((10,10)), vmin=0, vmax=1)

supcolorbar(sm, label='Test label')

(Source code, png, hires.png, pdf)
